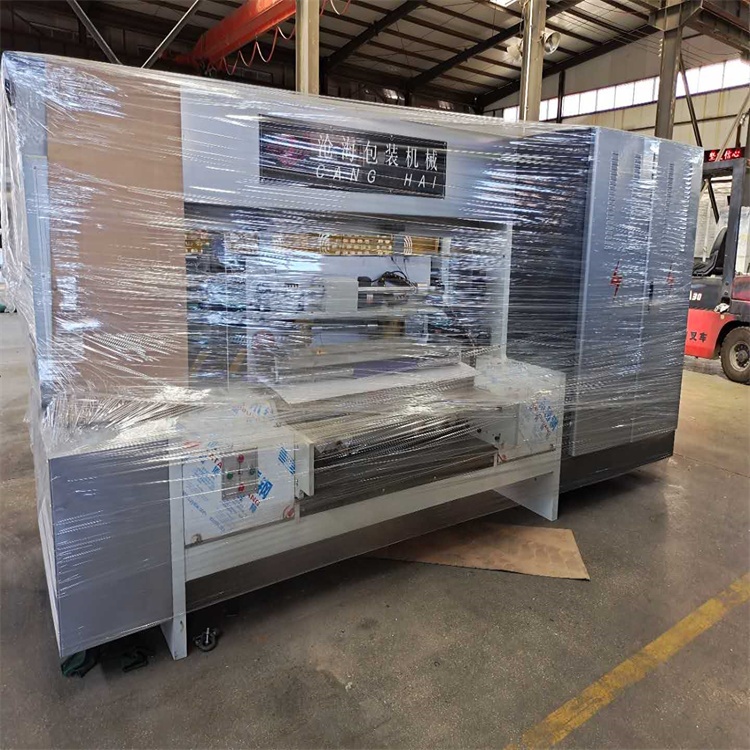

paper sheet rotary die cutting machine price
This machine adopts vacuum adsorption help carrying paper ,PLC touch screen control system.Man-machine conversation,The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,The speed of glue rolls automatically giving.At the same time,it set up the computer program and glue case reparied equipment,feed accruracy less than 0.5mm,it has many good characteristics such as slicing high precision,high speed,operating easy and so on.
1.Computerized control,automatic adjustment.
2.Precise planet-geared phase adjustment device.
3.Anvil roll can be motorized adjust in circumferential & traversal;direction to prolong its usage life.
4.Quick change over rubber anvil,good wear-ability.
5.Speed difference compensation system make line speed be synchronization,it can ensure die-cutting precise.
6.Through repair anvil roll by special device,anvil roll can be product cost down
|
name |
Unit |
ZYKM-1630 type |
|
Max paper coverage area |
mm |
1660*3200mm |
|
Skip feed paper size |
mm |
2000*3200mm |
|
Effective printing area |
mm |
1600*3000 |
|
Min feeding size |
mm |
400*750mm |
|
Printing cardboard thickness |
mm |
7.2 |
|
Machinable cardboard thickness |
layers |
3,5 |
|
Max speed |
Pieces/min |
140 |
|
Economy speed |
Pieces/min |
100~120 |
|
Topping precision (four color) |
mm |
±0.5 |
|
Slotting precision |
mm |
±1.5 |
|
Cutting precision |
mm |
±1.5 |
|
Frequency conversion power of main motor |
kw |
7.5—18.5 |
|
Shape size(length*width*high) |
mm |
5000mm*3500mm*2500mm |
