Chain feed manual cardboard paper rotary slotting machine for corrugated carton box packing machine1
2 year ago
Product details
Product Description

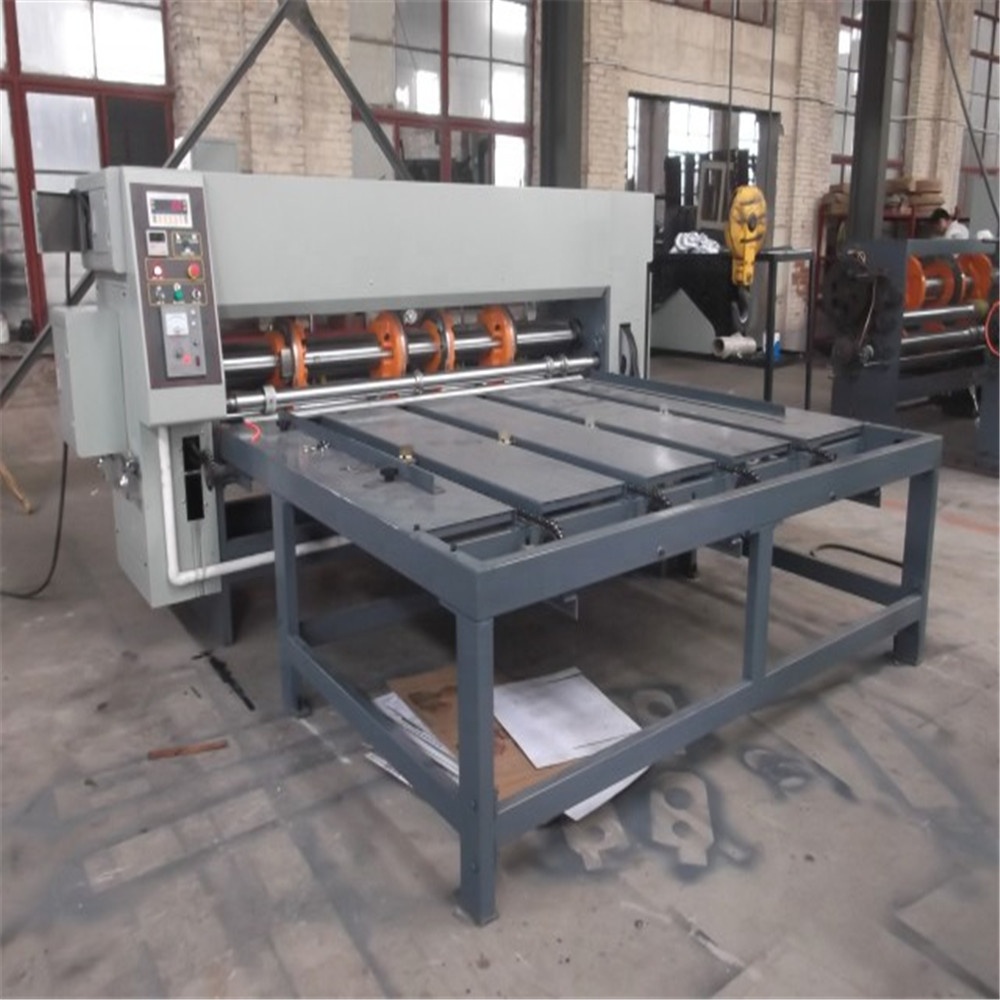

Semiautomatic rotary slotter machine
|
Modle
|
YK1630
|
|
Max. Feeding size(piece/min)
|
60
|
|
Max. feeding size(mm)
|
1600*3000
|
|
Min. feeding size(mm)
|
400*750
|
|
Effective board thickness (mm)
|
2.5-12
|
|
Max slot area(mm)
|
1600*3000
|
1. it adopts chain-paper feeding.
2. adopting QT400 Ductile iron gear driving
3. rockery interval adjustment device avoids central deviation of upper and lower knife rolls led by conventional adjustment,thus
ensure balance operation rolls and clear print without double shadow.
4. all the axles of roller must be chrome –plating in order to increase the hardness
5. electrically separation and pneumatic locking
6. module design ,any combination of multicolor printing unit
7. auto count device to show right production volume.
-
Description of application effect
-
.Working with feeding unit and automatical lift system(during the feeding unit runs,the anvil roller goes down to contact with
printing plate,while,on contact, leave printing plate)
6.Printing roller keep the function of zero return and can reset in dynamic and static condition.

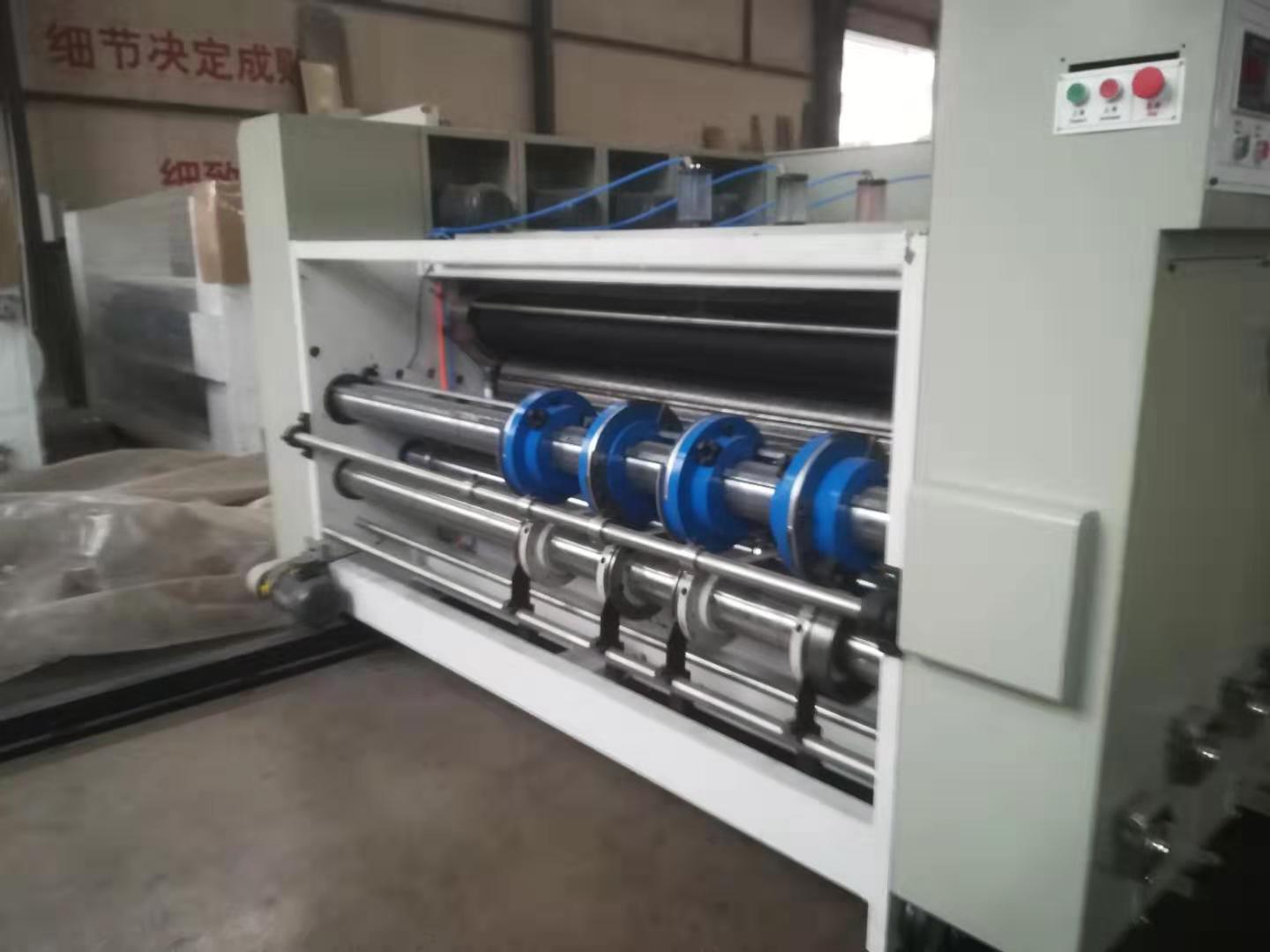

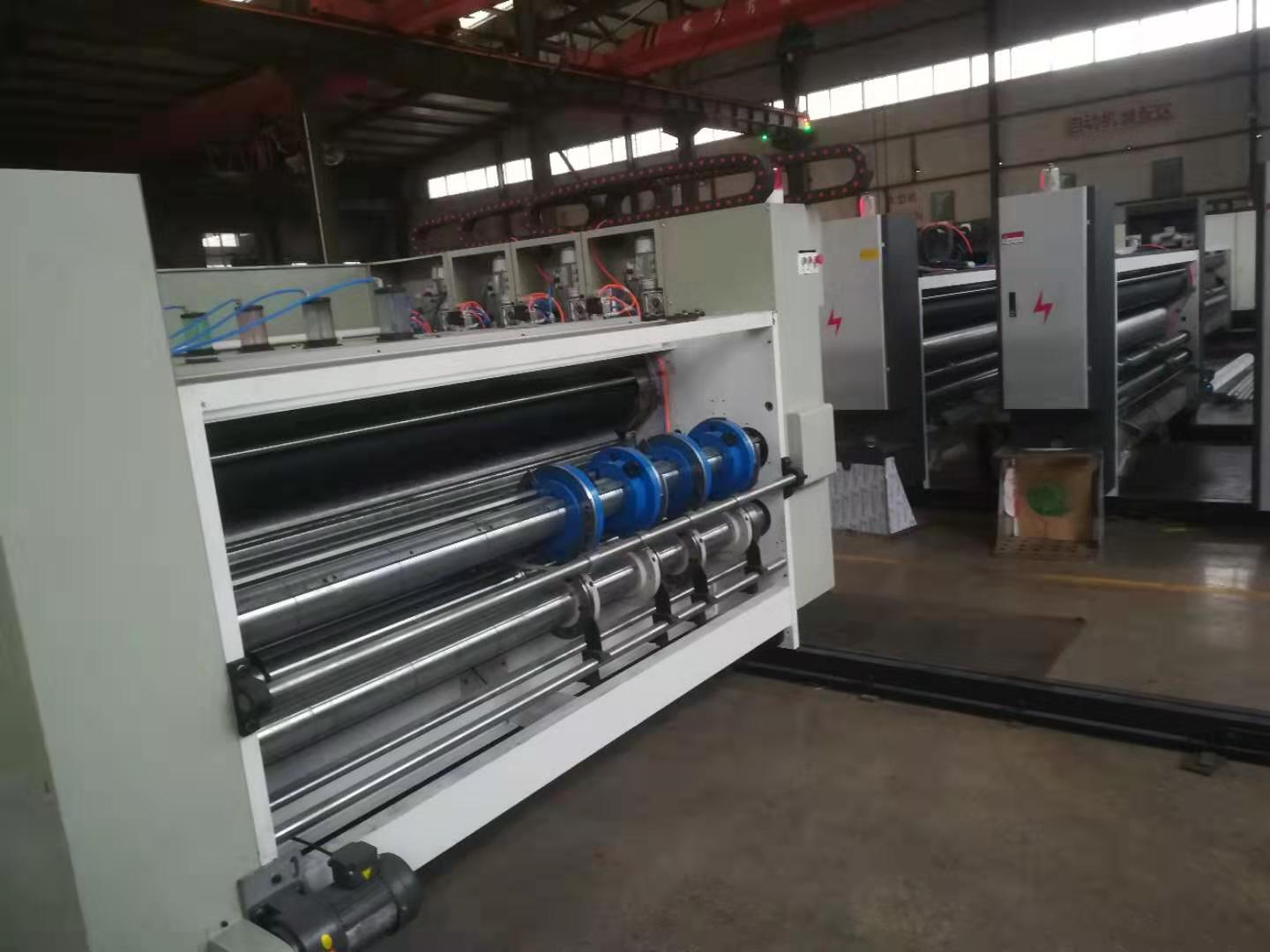

Detailed Images

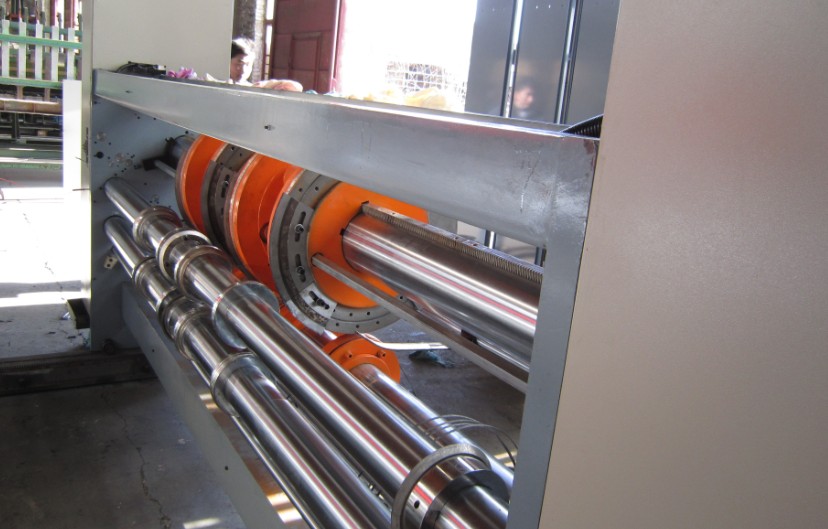

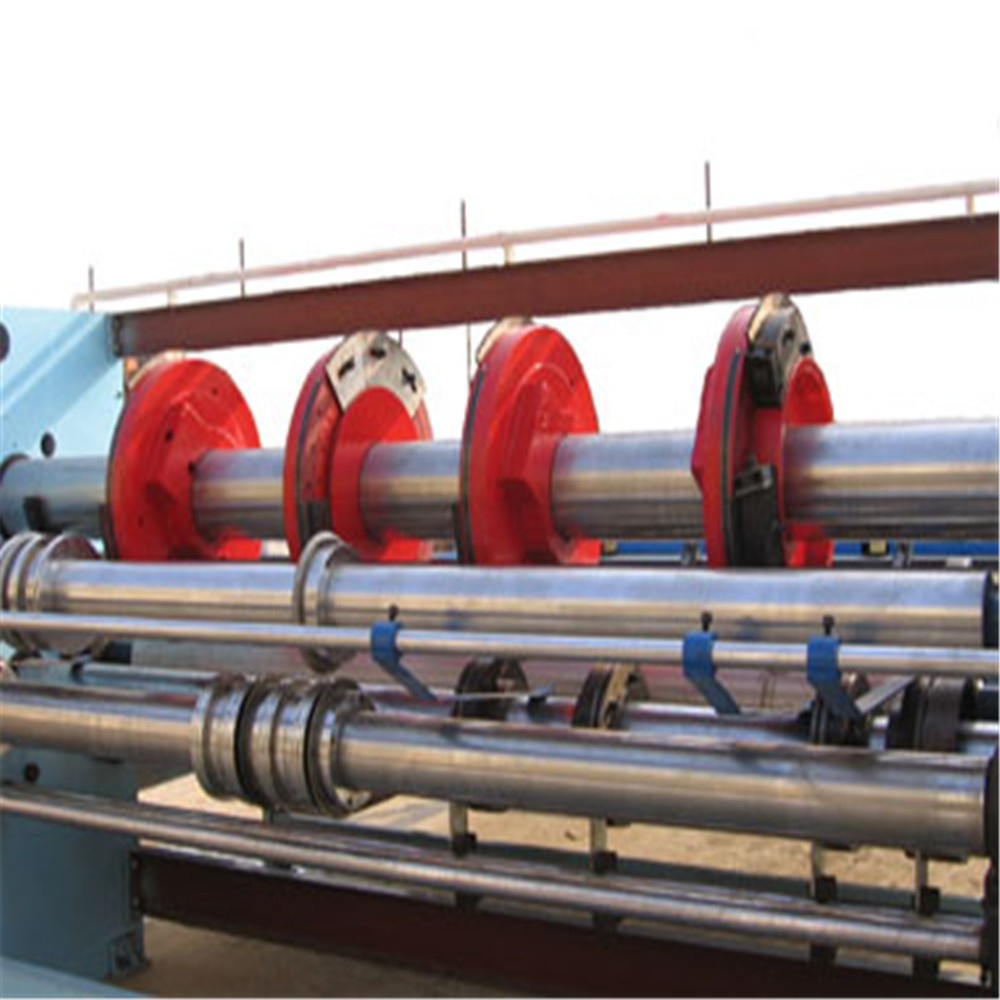

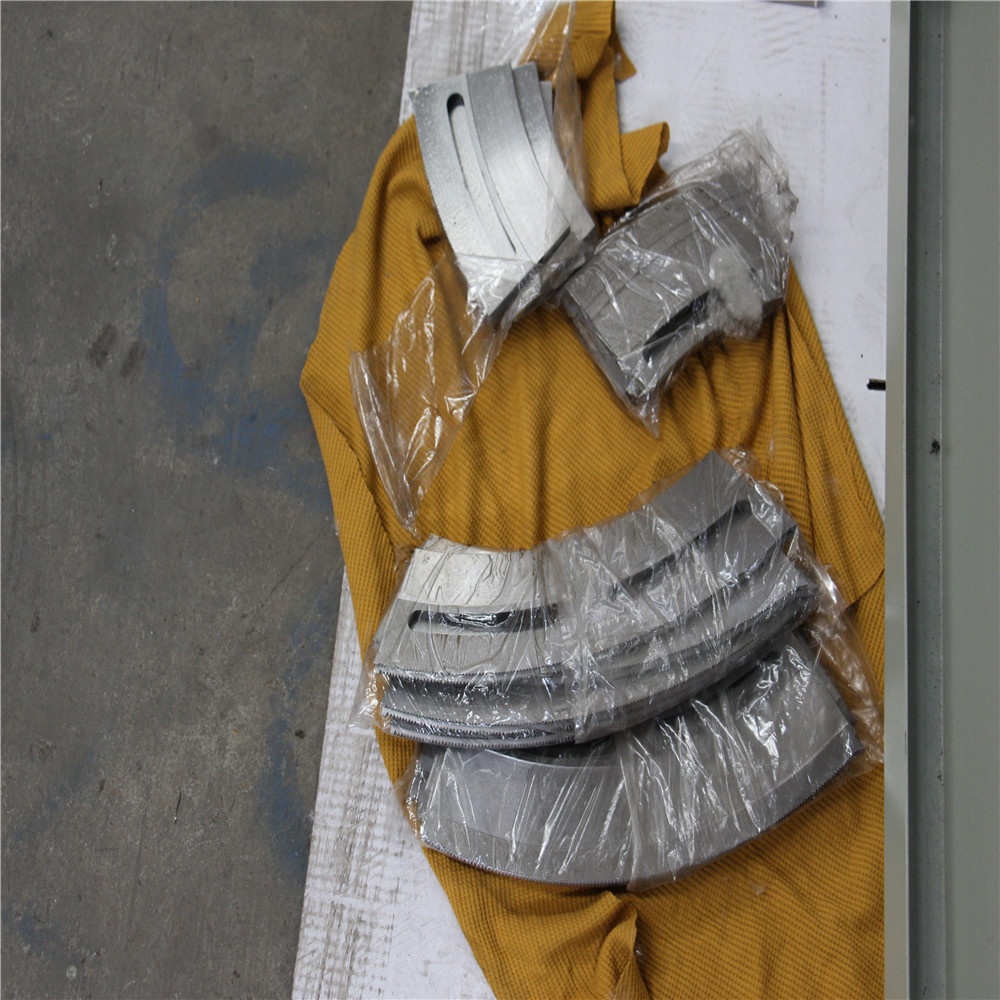

1.The slot knife thickness 7 millimeter,manfactured by high quality ally,tooth profile cutting sharp,the abration resistance high.
2.The slot knife phasing adjustment organization ,the frequency changer the brake,static 360 degree adjustments.
3.The slot knife lateral movement uses the electrically operated control,the adjustment is quick and accurated.
4.Regards the user to need to be possible to match the punch device..
5.Slot department are added the prepress rolling set ,improve the cardboard resistant to compression ability.
6.Compressing wheel disk are added on the press line and cut angle seat, to guarantee the papers junction are smooth, easy to glue
box.
2.The slot knife phasing adjustment organization ,the frequency changer the brake,static 360 degree adjustments.
3.The slot knife lateral movement uses the electrically operated control,the adjustment is quick and accurated.
4.Regards the user to need to be possible to match the punch device..
5.Slot department are added the prepress rolling set ,improve the cardboard resistant to compression ability.
6.Compressing wheel disk are added on the press line and cut angle seat, to guarantee the papers junction are smooth, easy to glue
box.
Related Products

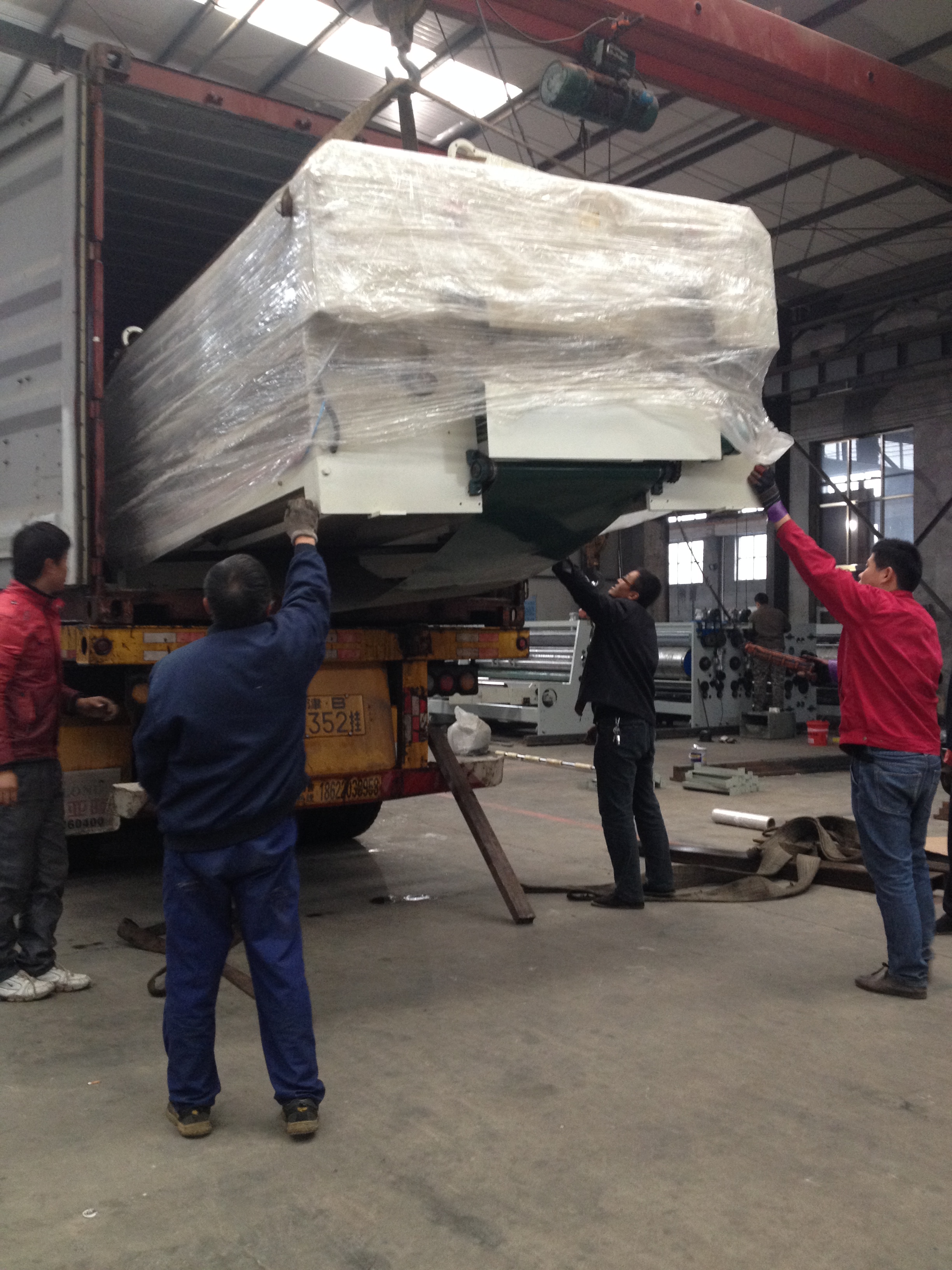

Packing&Shipping

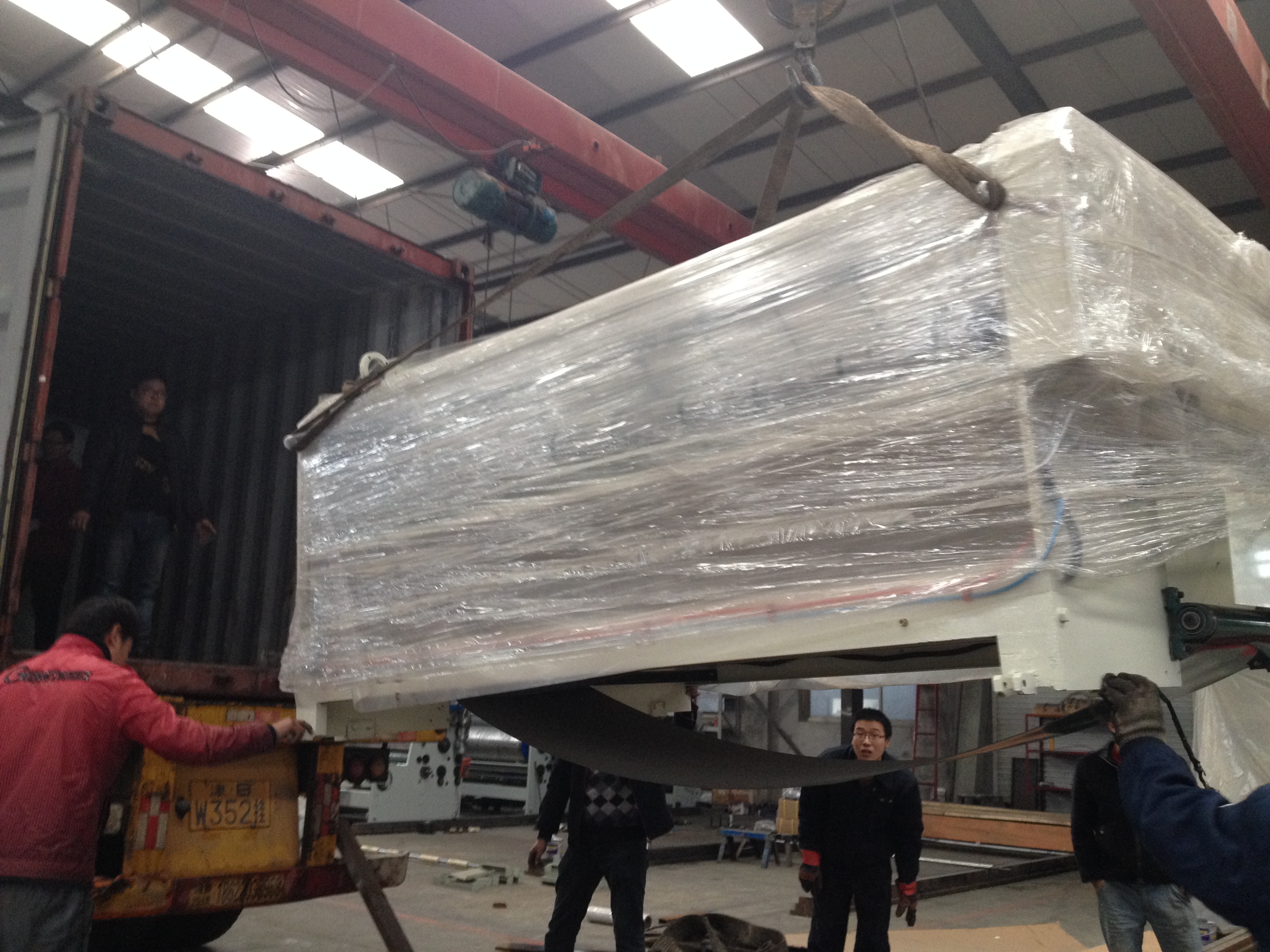

the machines if delivery by container ,they be packed by PE film

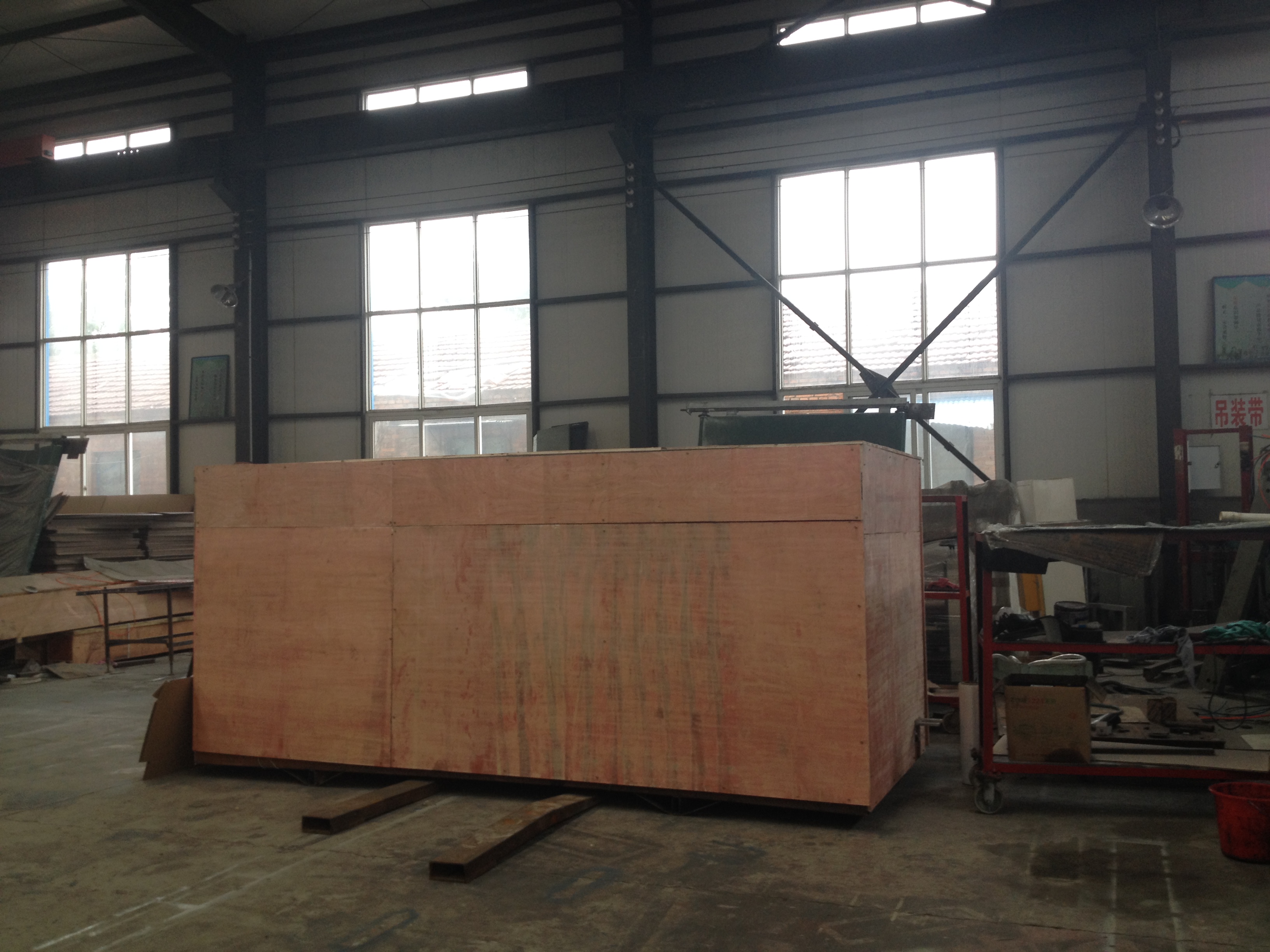

If delivery by LCL ,they be packed by export wooden case
