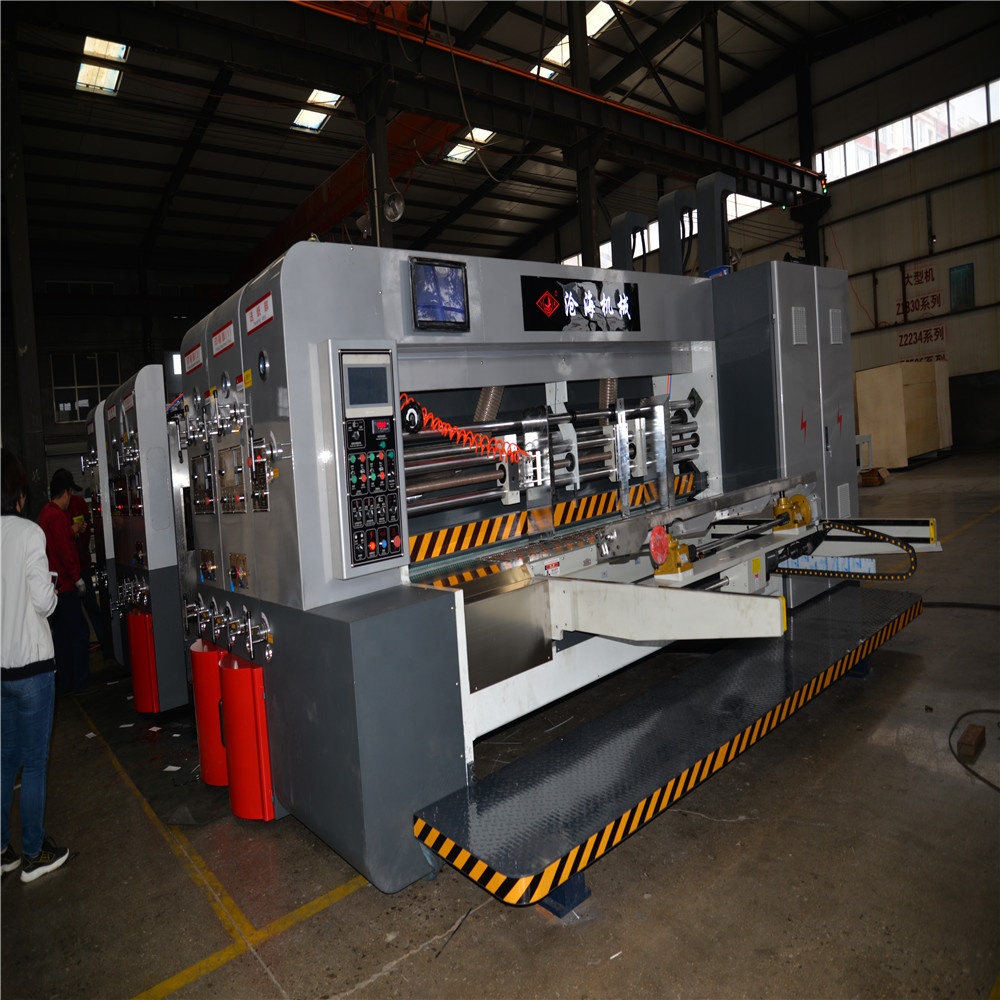

MODEL ZYKM10/12/14/16 corrugated slotter machine/carton printing slotting diecutting machine1

         Automatic rs4 multi color  slotter printer machine

Function and characteristics

1.Adopt the good material and parts.

2.The transmission gear adopt 20CrMin Ti high quality alloy steel which is grinded after heat-treatment , hardness 60 degree.

3.All roller plated with rigid chrome ,increase hardness.

4.Whole machine main structure part using capt-lock union link,eliminated the link interval,Suit to the long time printing.

5.Touch screen,PLC control,frequency conversion adopt.

Cetral-computerized unit

1.The whole machine is controled by Switzerland servo driven program in computer.

2.All the position adjustment are charged by PLC,the coder follows.

3.Each unit has equipped with touch-screen to make adjustment accuracy which is convenient to operate.

4.The remote Telemaintenance serivce is available.

Feeding Unit

1.Taking leading eage feeding technology to ensure feeding precision,fast and it is suitable for all kinds of corrugated cardboard.

2.Using dual rubber roller driven by servo-motor to delivery without mechanical differnce.

3.With air-operator adjustment function ,the top feeding cylinder coated abrasion proof rubber to keep the cardboard from distortion.

4.Vacuum suction lead edge feed and adjust the paper size as per pressure of wind.

5.Installing suck removing dust machine to eliminate the odd on the printing plate and improve the printing quality.

6.Adjust the feed unit space by manual.

Printing Unit

1.Both printing cylinder and impression cylinder are made of high quality steel with grounding surface and chrome plated.

2.Dynamic and staic balance correction ensure to run stability.

3.Adopt hanging structure,convenience and faster to set up.

4.Installing and uninstalling printing plate with pedal switch.

5.Working with feeding unit and automatical lift system(during the feeding unit runs,the anvil roller goes down to contact with printing plate,while,on contact, leave printing plate)

6.Printing roller keep the function of zero return and can reset in dynamic and static condition.

7.Printing phase adopt PLC touch screen 360 degree adjust electric number.

Slotter Unit

1.The slot knife thickness 7 millimeter,manfactured by high quality ally,tooth profile cutting sharp,the abration resistance high.

2.The slot knife phasing adjustment organization ,the frequency changer the brake,static 360 degree adjustments.

3.The slot knife lateral movement uses the electrically operated control,the adjustment is quick and accurated.

4.Regards the user to need to be possible to match the punch device..

5.Slot department are added the prepress rolling set ,improve the cardboard resistant to compression ability.

6.Compressing wheel disk are added on the press line and cut angle seat, to guarantee the papers junction are smooth, easy to glue box.

Die cutter unit

1.Die cut unit roller adopt high quality steel ,plated with rigid chrome.

2.High precision dynamic balance ,increase machine running stable.

3.Mould roller and glue roller can auto separate by cylinder bias unit when the machine don't die cut,this can lighten machine load and increase glue and knife life.

4.Auto up and down unit base feeding system,the mould roller will up when feeding aper,the mould roller will down when stop feeding paper,assure every paper die cut correctly.

5.The glue roller is mechanical transmission,the roller move 40mm left and right,the glue roller wear and tear regular could increasing the life of glue roller.

6.Die cut phase adopt PLC touch screen ,360 degree adjust electric number.

7.Machine have glue amend unit,the glue roller can used after many times amend.
