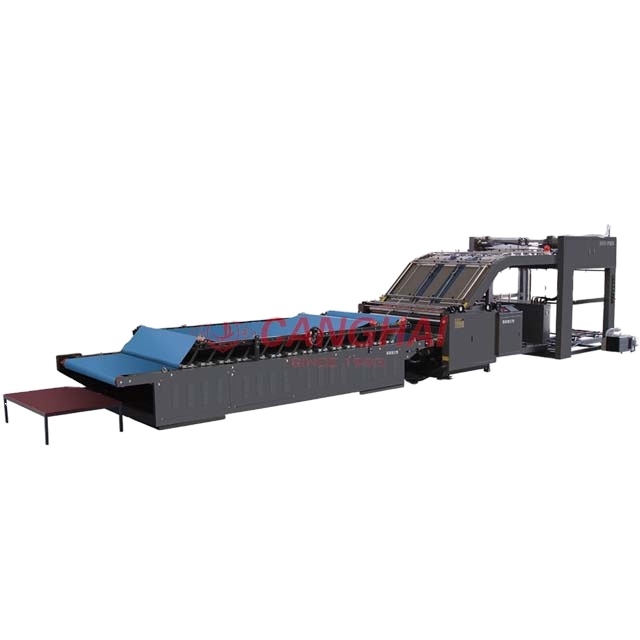

MODEL BZJ-1300GT semi-auto Flute Laminating Machine/5 Layers E Flute Laminator/5 Ply Corrugated Paper High Speed Flute Laminator1
2 year ago
Semiautomatic paper flute laminating machine
semi automatic laminator packing machine. it is general by feeding mechanism, pasting paper agencies, institutions and pressure feed mechanism is two layers of institutions, pasting mechanism is two layers of institutions, whose character is on the feeding mechanism of the upper body and set up two, in the middle of the pasting institutions set up with positioning, pasting institutions can be divided into two way paper, set in the two sides of the pasting institutions winged leaf spring, intermediate positioning mechanism is composed of intermediate positioning guide block and lifting mechanism, intermediate positioning guide block connected to the lifting mechanism.
|
Model |
CH-1300 |
|
Max.size |
1300mmX1300mm |
|
Min. size |
360mmX360mm |
|
Economic speed |
0-100 pcs/min |
|
Precision |
±1 |
|
Power |
8.5kw |
|
Outter size |
8.8m x 1.95m x 1.7m |
|
Weight |
About 3T |
Feature
- Delta servo motor from Taiwan is adopted to eliminate signal conversion control of brake, clutch and low-light eye;PLC, servo single control independent operation, fast speed, high precision, easy to operate.
- The base paper adopts suction automatic paper feeding, which can be automatically and synchronously tracked according to the speed and continuity of the surface paper, and automatically and continuously paper feeding.
- Pre-specified position of new concept, high positioning accuracy, and the backing paper will never lead;The advance amount of face paper can be adjusted.
1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.
2. Where is your company located? How can I visit there?
Our factory address: dongguang county, Cangzhou city, hebei province,China. You could go to tianjin airport fist, and then take high speed rail come to cangzhou, we will pick you up.
3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--25 years' experience: We have been in making die cutting machine carton box for 25 years.
--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
5. Whats your guaranty time?
We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
