Best price single facer corrugated cardboard carton box making machine1

2 year ago

3 0 

DONGGUANG CANGHAI PACKING MACHINE CO.,LTD

2 year

Product details

Product Description

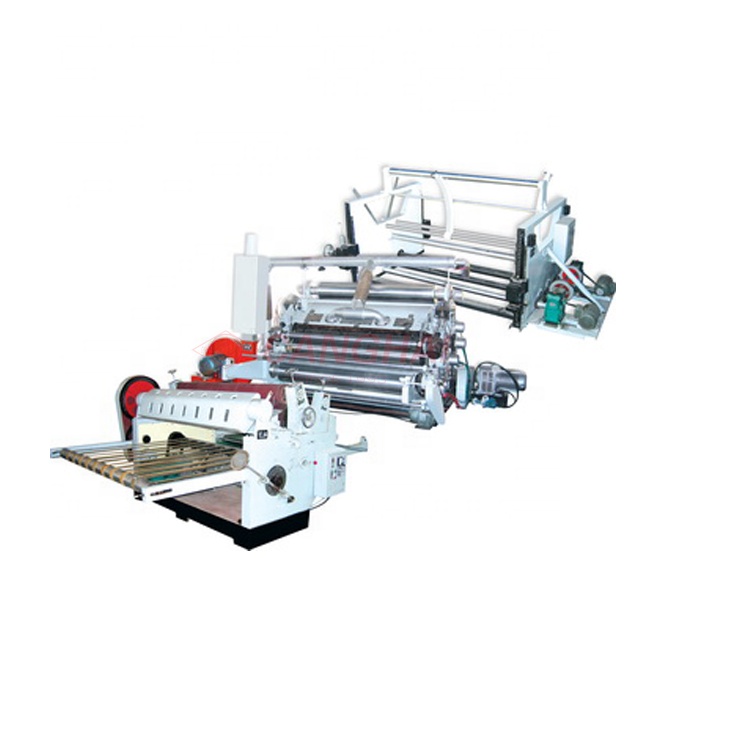

2ply single facer corrugated cardboard making machine

1600mm single facer 2ply corrugated cardboard making line machine1

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard . The 3ply,5ply,7ply and multifunction corrugated cardboard production line mainly consists of the following equipment:mill roll stand , surface papercorepaperpreheater . single facer, the overhead convey bridge . glue pasting machine , double facers . slitter scorer , cutoff , stacker . Heating system , air compression system and glue making system , etc . The 3ply,5ply,7ply and multifunction corrugated cardboard productiong line has high middle and low grade with different specification and different quality equipment . On the base of understanding the requirements of the customers and the advanced skills at home and abroad , our company has developed and designed these corrugated paperboard production lines with the speed 150/220m/min , the paper width 1400/2200mm and four fluting UV type A , C , B , E for all the customers to choose from.

Technological Parameters	MJF-80-1600
Line size LWH(m)	56×4.5×4.2
Factory size LWH(m)	60×11×5
Total Power (about)	Total Power (about)
Steam Cost	0.8~1.2Mpa (Advise 2t/h boiler)
Starch Cost (g/m2)	20-26
Raw paper width (mm)	1800
Mechanical Speed	80m/min
Economical speed	60m/min
Shift capacity (*104m/8h)	3
Transversely cutting precision	±1
Transversely cutting scope (mm)	500-9999
Slitting scope (mm)	145-1800
Slitting precision (mm)	±1

Detailed Images

Single facer

Paper conducting style is fingerless vacuum absorption,which has been equipped with wind adjusting device.

Individual driving box and universal joint drive are adopted to stop the force epicenter and Improve the steadiness of the operation.Pneumatic control is equipped with glue roller,corrugation press and single-side conglutination. Automatic glue supply system.electric separate serum system .adjusting breadth convenient and swift.
electric adjusting the thickness of the gluing area. with numbers display (PLC auto adjusting glue system for choice).
Main bearing adopts fire resistant bubrlcant lubricant grease.
Corrugated roll adopt good quality chrome molybdenum steel making,after heating the hardnedd is HRC55°-60° and the surface is grinded and chrome plated.
the active force adopt frequency motor with frequency controlled,can stepless adjusting speed and the back equipment at the same time.It can adopt magic eye trace system,stop paper automatic ebb gluing and stop the machine.

Mill roll stand

1.The structure is double rotary shaft with four arms;Support two paper mill rolls on both arms at the same time.

2.Roundplate type manual brake,the web tension is adjusted at any time.
3.Arm Clamp and rotary structure set fixed torque clutch,operate safety.

Cutting machine

Rational mechanical structure,rigidity is strong,stability is good have long performance life.All operation control on the same side,easy to operate,the photoelectricity is counted.

Cut the paper rang e to cut vertically for four times,crosscut400mm-2400mm.
Cut paper precision±2.5mm.
