YZPST-MDC100A1200V Module
9 month ago
BLOCKING
| Symbol | Condition | Ratings | Unit |
| VRRM VRSM | 1200 | V | |
| 1300 | |||
| IRRM | 15 | mA | |
| VINS | 50Hz, circuit to base, all terminal shorted | 3600 | V |
CONDUCTING
| Symbol | Condition | Ratings | Unit |
| IF(AV) | TC=85°C; 180° sine | 100 | A |
| IF(RMS) | TC=85°C; 180° sine | 175 | A |
| IFSM | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 2000 | A |
| I2t | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 20 | kA2S |
| VF(TO) | (I > π x IF(AV)),Tj= Tj Max. | 0.85 | V |
| rF | (I > π x IF(AV)),Tj= Tj Max. | 1.3 | mΩ |
| VFM | On-State Current 300A，Tj=25°C | 1.35 | V |
Electrical Characteristics
| Symbol | Condition | Ratings | Unit |
| Rth(j-c) | Per Module | 0.175 | K/W |
| Rth(c-h) | Per Module | 0.1 | K/W |
| Tj | -40 ~ + 125 | °C | |
| Tstg | -40 ~ + 125 | °C | |
| M | mounting torque | 5 | Nm |
| terminal torque | 3 | Nm | |
| W | - | g |

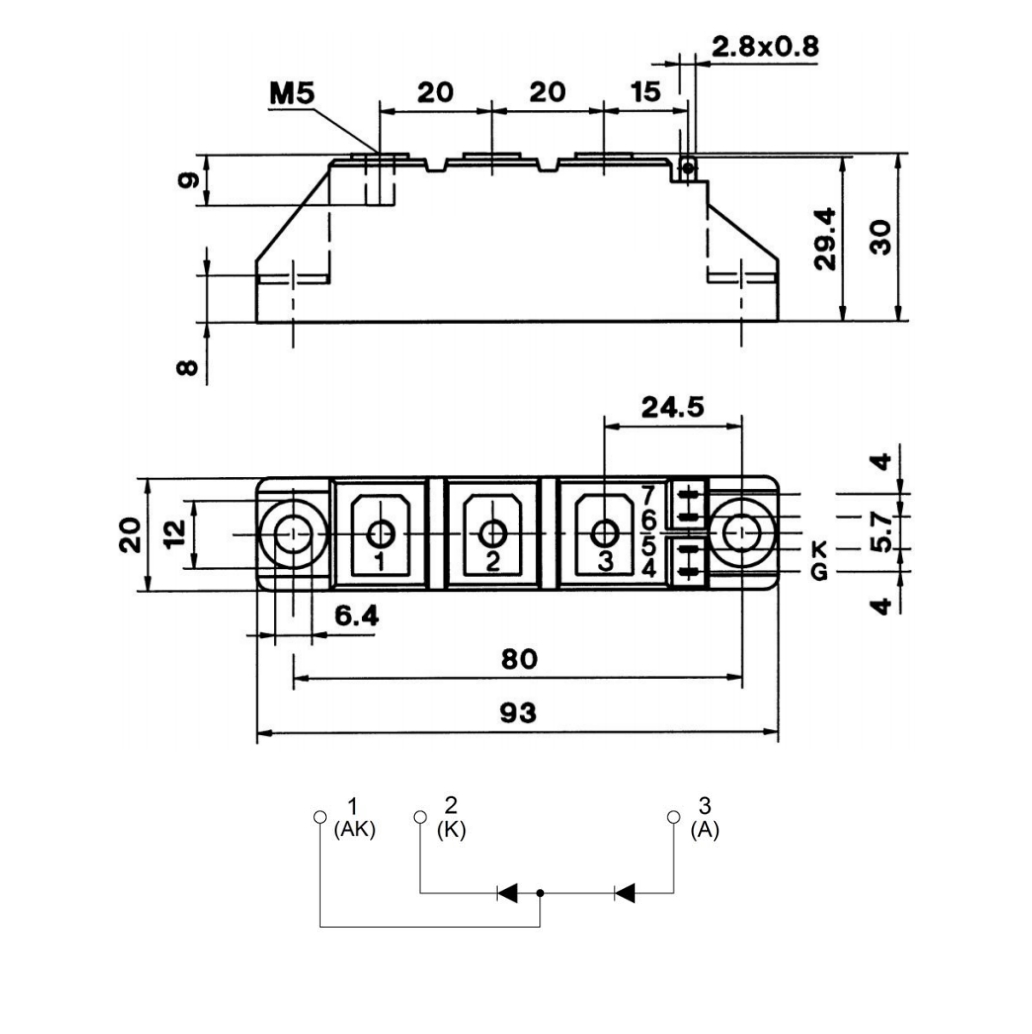

Outline Drawing
