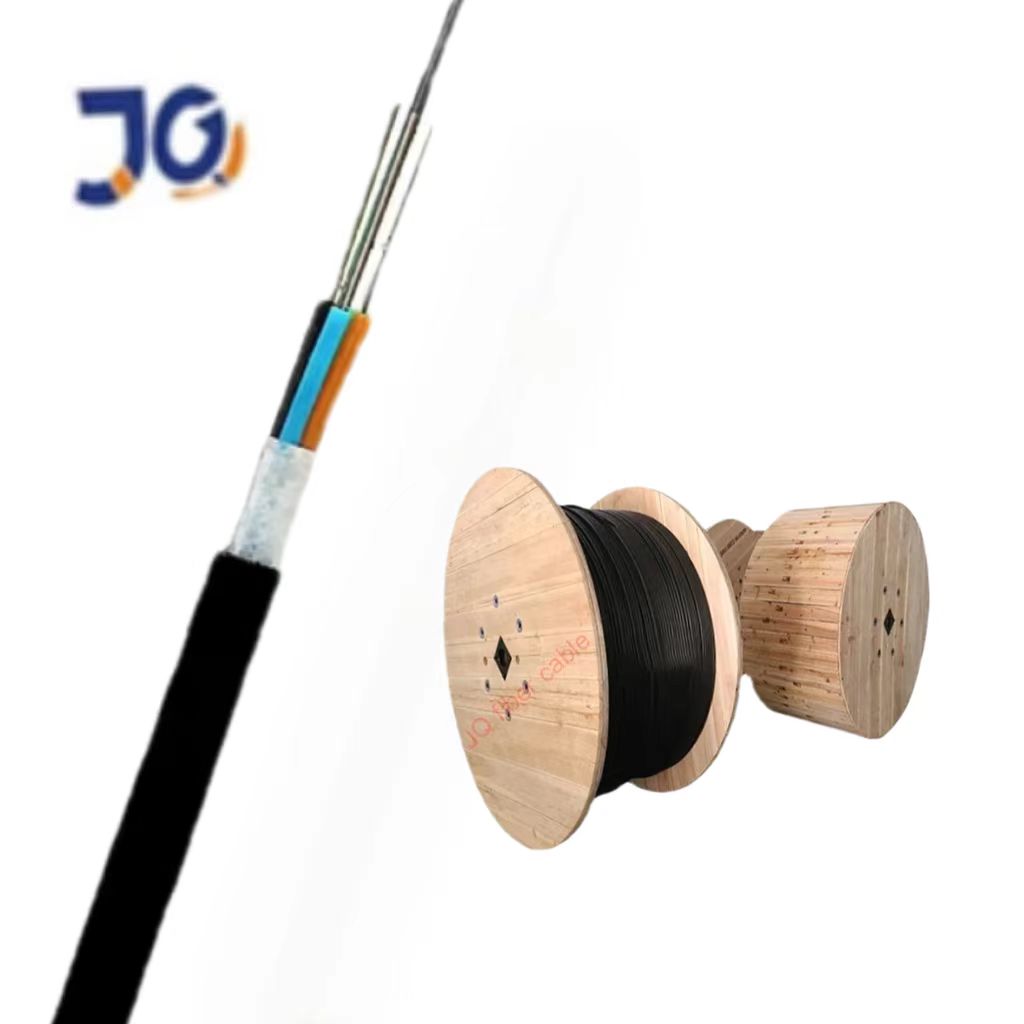

Direct Buried Fiber Optic Cable GYTY53

Burial fiber optic string The Underground Direct Buried Fiber Optic Cable GYTA53 is designed to give high fiber counts with the inflexibility and versatility needed for the moment's most demanding installations, including direct buried. Direct burial fiber With fiber counts up to 288 core.

Optical Characteristics:
Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation	850 nm			<3.0 dB/km	<3.3 dB/km
(+20X)	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength λcc		<1260 nm	<1450 nm

Loose tube gel-filled construction provides superior fiber protection. Double-subcaste-faced single armor( GYTY53) and double-subcaste-faced double armor( GYTA53) are used for heatstroke protection and direct burial. Direct burial fiber optic strings are designed to be UV- and humidity-proof. By combining advanced engineering with decoration accouterments, our fiber optical lines ensure superior trustability, fiber optic string buried effectiveness, and performance to meet the demands of ultramodern data transmission.

	Outer Diameter	Weight	Fiber	Min tensile strength long/short term N	Min crush load long/short term N/100m	Bending radius
Fiber count	(mm)	(kg/km)	Per Tube			Static/dynamic
						(mm)
2~36	12	150	5	1000/3000	1000/3000	12.5D/25D
36~70	13.2	170	5	1000/3000	1000/3000	12.5D/25D
74~96	15.9	230	8	1000/3000	1000/3000	12.5D/25D
98~120	17.6	270	10	1000/3000	1000/3000	12.5D/25D
122~144	18.6	290	12	1000/3000	1000/3000	12.5D/25D
146~288	20.9	373	18	1000/3000	1000/3000	12.5D/25D

Our( INST) is designed for colorful operations. It can be used for direct burial, underground, and backbone internet connections, making it a protean and dependable result.
