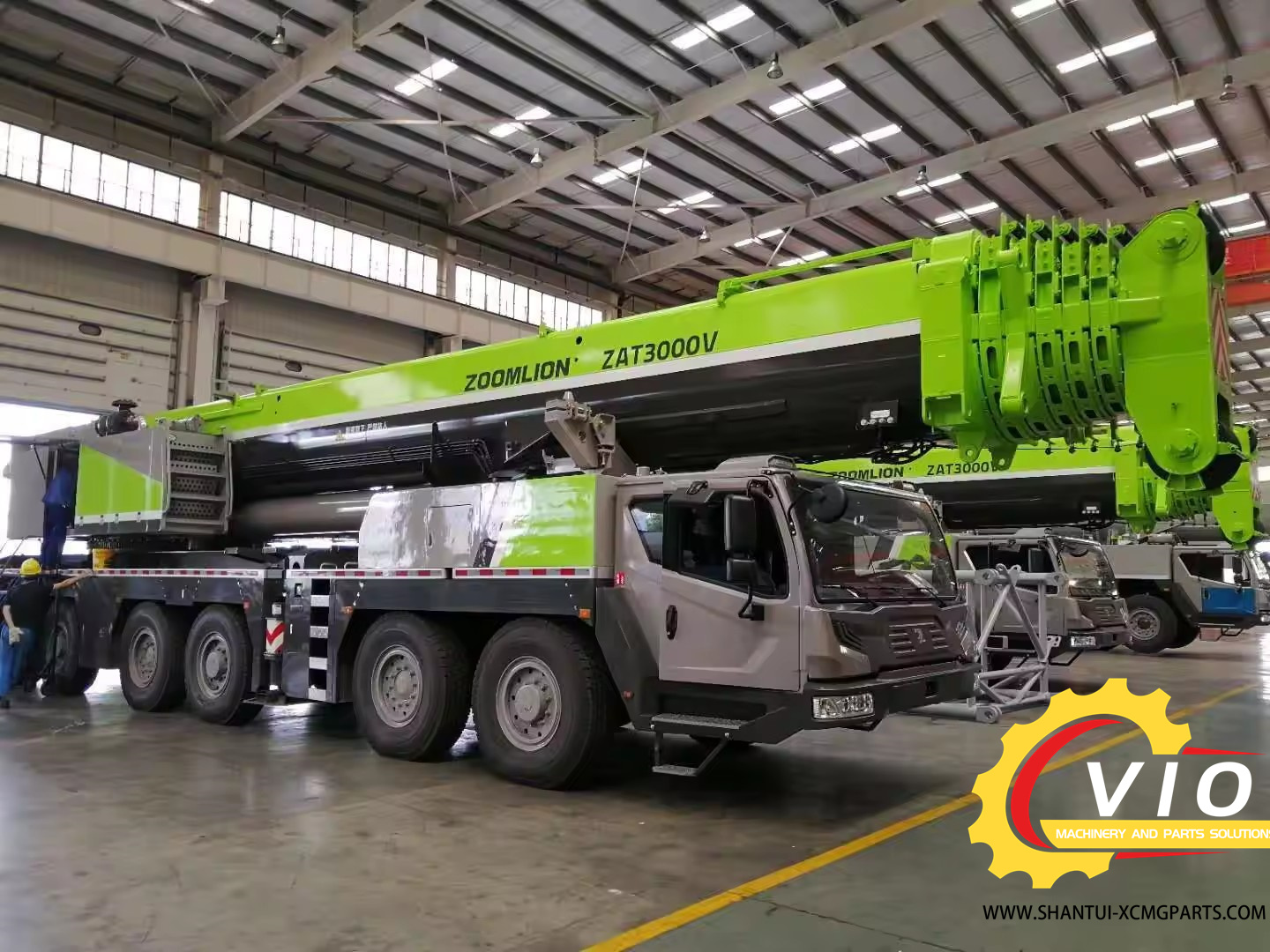

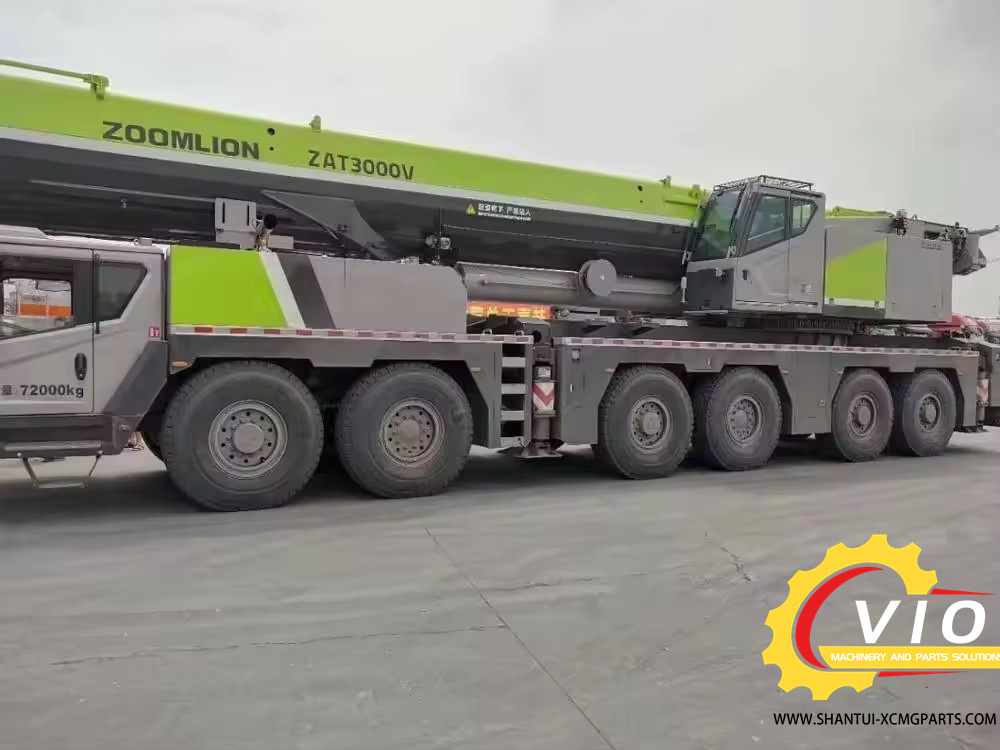

ZOOMLION ZAT3000V all terrain crane

8 month ago

2 0 

4 year

Product details

high quality Zoomlion ZAT3000A863 ZAT3000A763 all terrain crane

The crane features an 80m elliptical main boom with 7 sections and a 32m auxiliary boom, offering a maximum lifting height of 112m. Ideal for versatile lifting tasks, including those that require the precision of a wheel loader or a mini wheel loader.

Its comprehensive lifting capability exceeds industry standards by over 10%, setting it apart from other products such as the wheel dozer or crawler bulldozer.

The crane is equipped with a fully upgraded 6-axle all-terrain chassis, which enhances load-bearing capacity and improves traveling and passing performance, comparable to the efficiency of an electric excavator.

Upgraded control performance balances working speed, smoothness, and precision, ensuring that operations are as seamless as those performed by a backhoe loader or skid steer loader.

The crane incorporates advanced active and passive safety systems, ensuring not only the safety of the product but also that of personnel and the construction site, akin to the safety standards of a road roller or grader for sale.

The innovative single-cylinder pin mechanism and telescopic control system, along with advancements in the chassis steering system, contribute to the crane’s high reliability. This technology results in a higher uptime and lower maintenance costs, similar to the efficiency seen in a compact wheel loader.

Ergonomic improvements meet diverse customer needs, providing comfort and efficiency for operators, comparable to the benefits offered by a farm tractor or mini excavator.

The mature and reliable combination of accessories achieves over 10% higher operational performance while maintaining 90% of the operational costs typical of similar industry products. This performance is on par with what is expected from high-quality machinery like a tower crane or truck-mounted crane.

Item	Value	Remarks
Performance Parameters
Maximum Rated Lifting Capacity	300,000 kg
Maximum Load Moment of Basic Boom	8,750 kN·m
Maximum Lifting Height of Main Boom	80 m	Not considering boom deformation; value in brackets includes standard section boom
Maximum Lifting Height of Auxiliary Boom	112 m
Working Speed
Maximum Speed of Main Winch Single Rope	113 m/min	Fourth Layer
Maximum Speed of Auxiliary Winch Single Rope	56 m/min	Third Layer
Time to Extend the Lifting Boom	18 min
Time to Raise the Lifting Boom	100 s
Rotation Speed	0 – 1.3 r/min
Travel Parameters
Maximum Operating Altitude	2,000 m
Maximum Traveling Speed	72 km/h
Maximum Gradeability	48%
Minimum Turning Radius	24 m
Minimum Ground Clearance	355 mm
Emission and Smoke Limits	Meets standard requirements	GB3847-2005, GB17691-2005 (China V)
Fuel Consumption per 100 km	95 L	At 50 km/h constant speed
Weight Parameters
Weight in Travel State	72,000 kg	Crane hook, counterweights, auxiliary boom, winch, boom tip pulley, and outriggers must be removed for traveling
Dimensions Parameters
Overall Dimensions (L × W × H)	17,752 × 3,000 × 4,000 mm
Outrigger Longitudinal Distance	8.8 m
Outrigger Lateral Distance	8.8 m
Main Boom Length	15.4 – 80 m
Main Boom Elevation Angle	-0.6° – 82°
Auxiliary Boom Length	12/20/28 m
Auxiliary Boom + Superlift Connection Frame	16/24/32 m
Auxiliary Boom Installation Angle	0°, 15°, 30°
