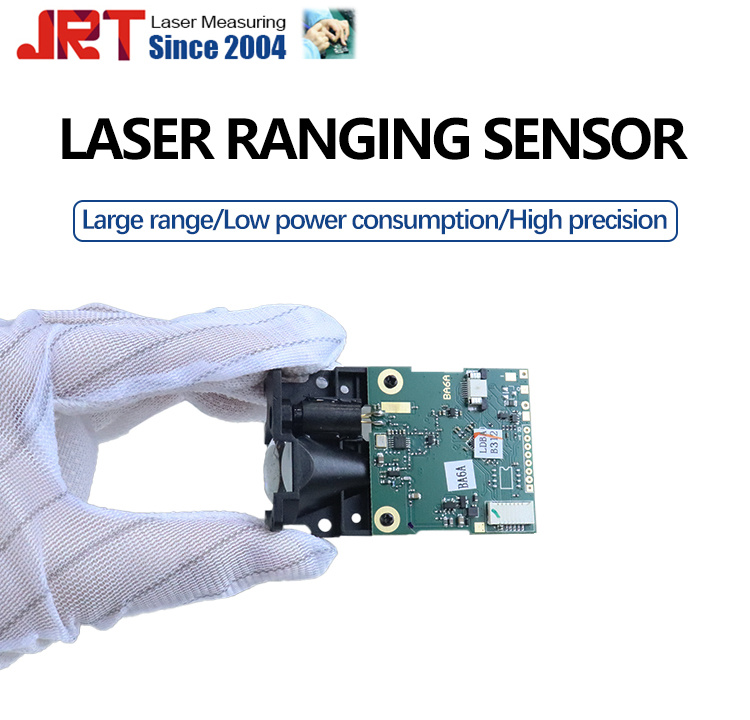

20Hz Laser Distance Measurer TTL Infrared Sensor

100m Long Range Distance Sensor Arduino 20Hz

This 100m long range distance sensor you see is one of our hot-sales Speed Laser Sensor with high accuracy ±3mm. Customers usually use either a raspberry pi or an arduino intercalated with a raspberry. So you can use the laser measuring unit with an Arduino to measure the distance of stationairy objects in a room. 20Hz frequency is sufficient. How about your applications?

Customer frequently asked questions:
Question1:  ±3 mm accuracy, is its distance dependent or not?
Answer  1：  Yes, but within 100m and 70% reflectivity conditions, it can attach +-3mm.

Question2:  What will be the maximum frequency l can get if l measure a short target at about 10m?
Answer  2： It is 20HZ.

Technical Parameters:
Range: 0.03 m -100 m
Visible measuring: 620nm-690nm
Measuring accuracy: ±3 mm
Measuring frequency: Up to 3Hz
Laser type: Class 2, red
Interface options: Serial/USB/RS-232/RS-485/Bluetooth
Size: 64*40*18mm
Voltage: DC2.0~3.3V
Electrical Level: TTL/CMOS
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

Notes:
1.Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2.Under strong light or bad diffuse reflectance of target, please use a reflector.

3.60m can be customized.

4.Voltage can be changed by power converter LDO

5.Frequency would be affected by environment.

6.Operating temperature -10 ℃~50 ℃ can be customized.

More Detailed Pictures

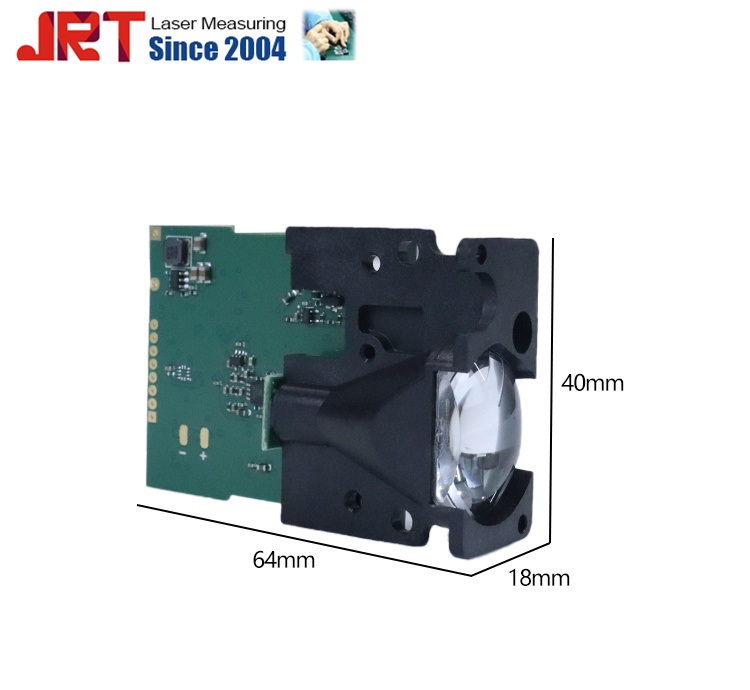

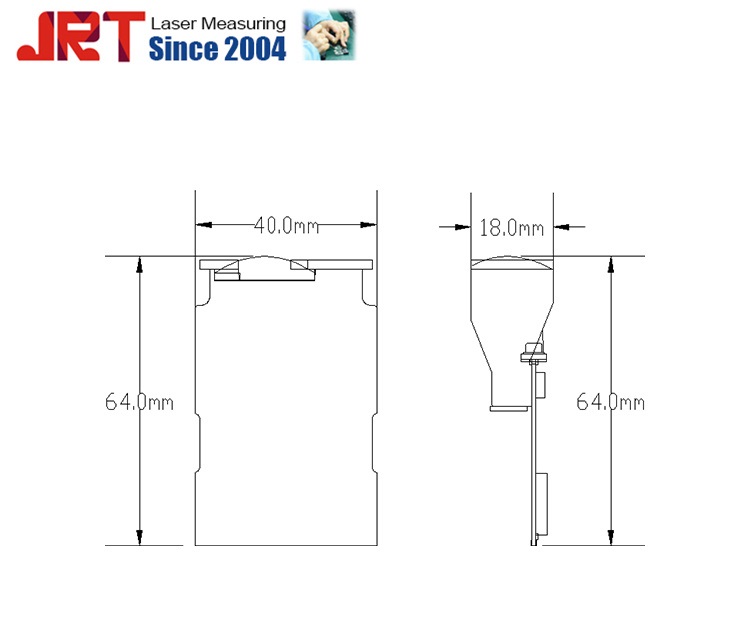

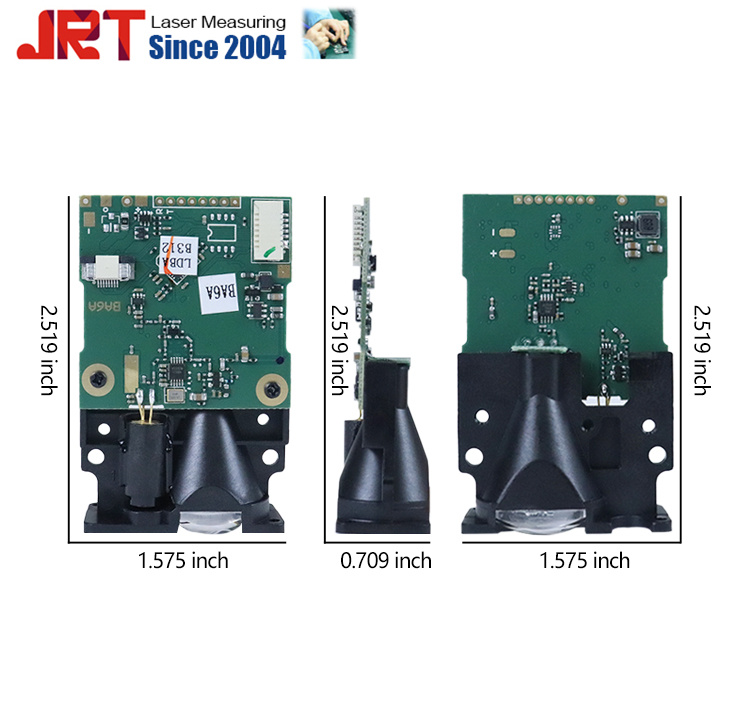

100m Long Distance Sensor Mechanical Size

100m Long Range Sensor Sample Packing

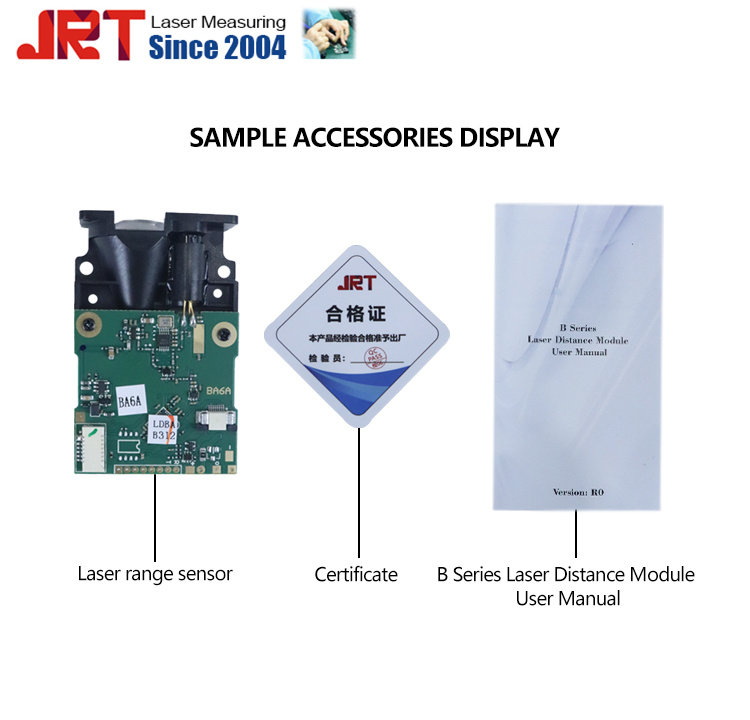

Sample Range Sensor Accessories

1> 1* 120m Long Range Sensor
2> 1* Certification
3> 1* Instruction manual for the long range distance sensor

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor, Tof LiDAR Sensors.
