2S500-50 2'' Stainless Steel Solenoid Valve
6 year ago
2S500-50 2'' Stainless Steel Solenoid Valves For Wastewater
2S & SUW Series 2/2 Way Direct Lift Diaphragm Normally Closed Solenoid Valve:
This valve is a two-way, normally closed, direct-lift valve and does not require a minimum differential pressure to operate. As shown in the diagrams below, when the coil is de-energized, the plunger and flexible diaphragm sit on the main valve orifice. The working medium flows through a tiny "bleed orifice" and pressurizes the cavity above the diaphragm - this system pressure, along with the spring force, seals the valve. When the valve is energized, the diaphragm is pulled away from the main orifice, allowing fluid to flow through the valve. Since the bleed orifice is dimensionally smaller than the main orifice, the system pressure cannot rebuilt on the top of the diaphragm as long as the main orifice remains open.
YouTube video of SUW-50 2S500-50 Stainless Steel Electric Solenoid Water Valve:

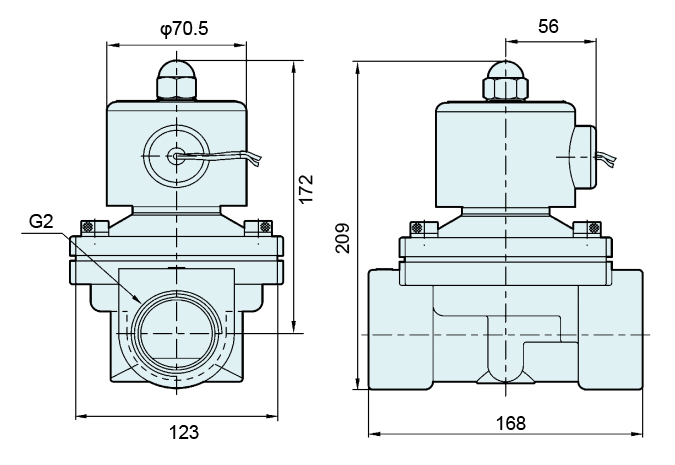

Overall dimension of 2'' Stainless Steel Water Solenoid Valves Normally Closed:

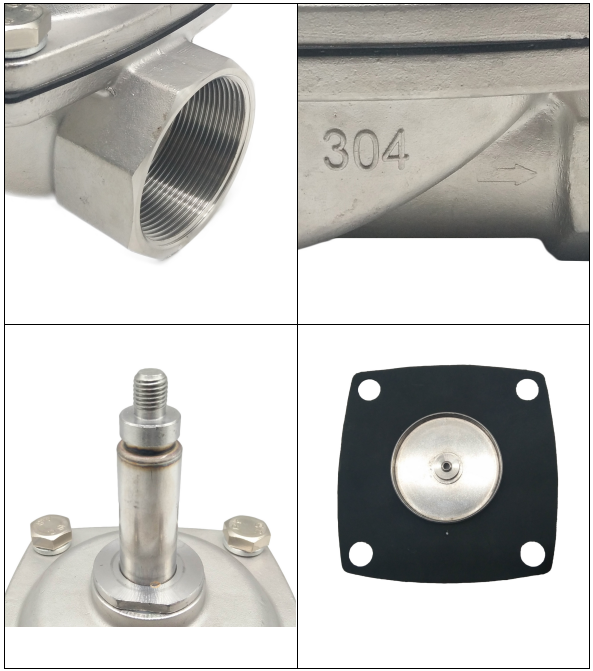

Details enlargement of Uni-D Type SUW-50 2 Way NC Electric Water Valve:
Technical data of 2S, SUS, SUW Series Normally Closed Solenoid Valves:
Valve Body: Stainless Steel
Seals: NBR (Buna); Option: Viton (FKM)
Armature Assembly: Stainless Steel
Brando No
2S025-06
2S025-08
2S040-10
2S160-10
2S160-15
2S200-20
2S250-25
2S350-35
2S400-40
2S500-50
Ref. No
SUS-6
SUS-8
SUS-10
SUW-10
SUW-15
SUW-20
SUW-25
SUW-35
SUW-40
SUW-50
Working medium
Air, Inert Gas, Liquid, Vacuum
Valve type
2/2 way, normally closed (NC)
Body material
Stainless steel 304
Wetted Surface
Operation
Direct Acting, Uni-Directional, Zero Differential
Port size
1/8''
1/4''
3/8''
3/8''
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Operating pressure
0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
Operating temperature
Media: -5 to 80°C (NBR Seal), -5 to 120°C (Viton Seal); Ambient: -5 to 45°C
Fluid viscosity
Below 20cst

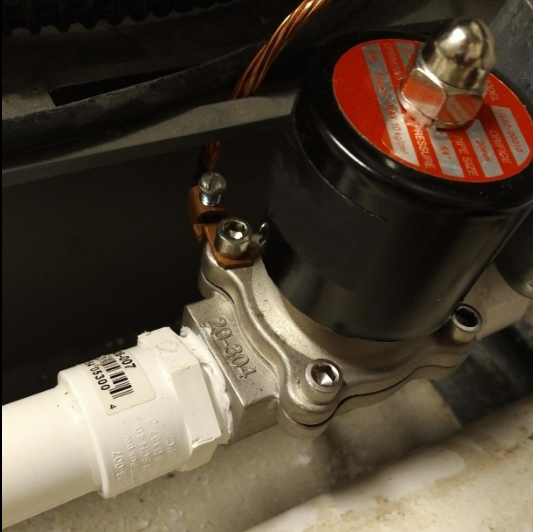

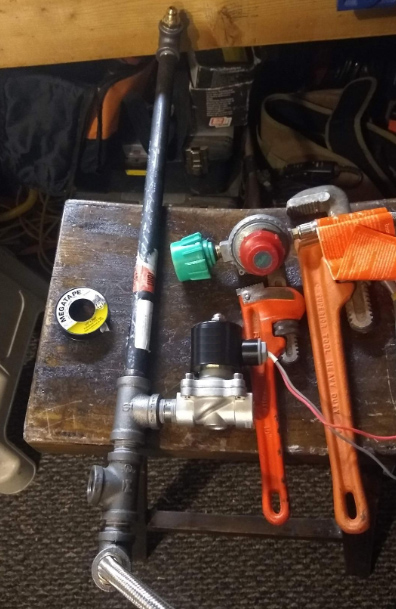

Customer applications of Semi-direct Lift Diaphragm Stainless Steel Valve:
ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.
CAUTION: Do not energize the solenoid coil when it is not installed onto the valve. It may cause it to overheat and create a fire hazard.
SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage.
