TMYS3120CNC7 gear hobbing
4 year ago
TOMAN is systematically expanding its scope of technology by adding a range of gear production methods: shaving, shaping, tooth flank grinding, profile grinding and generating grinding.

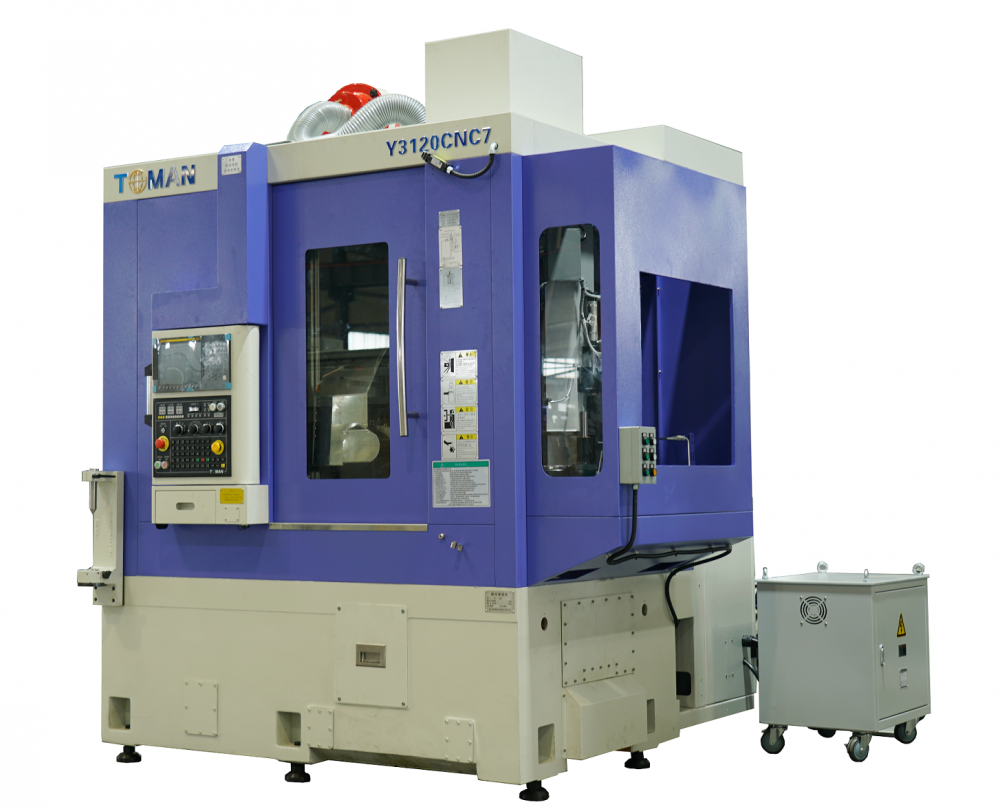

Y3120 CNC7
An Engery Saving and Complete Hobbing Machine
Automatic loading/unloading material device
FANUC numerical control system and servo drive, system reliability, simple operation
Dry Cutting Hobbing Machine or Wet/Dry Cut Hobbing Machine is optionally available.
Max. Workpiece Diameter: Φ200 mm
Max. Module: 6
Main Technology Parameter
|
CNC hobbing machine |
Unit |
TMY3120 |
|
|
|
Wet/Dry hobbing |
|
Maximum workpiece diameter |
mm |
Φ200 |
|
Maximum module |
mm |
6 |
|
Worktable surface diameter |
mm |
Φ200 |
|
Hob maximum assemble diameterx length |
mm |
Φ130x230 |
|
Horizontal distance between hob center and worktable center |
mm |
30-230 |
|
Maximum hob axial movement amount |
mm |
180 |
|
Hob head slide travel （Z axis displacement） |
mm |
200-500 |
|
Max. swiveling angle of the hob head |
Deg |
±45° |
|
Hob spindle motor power |
KW |
11 |
|
Maximum hob spindle rotate speed（B axis） |
rpm |
1200/1500 |
|
Maximum worktable rotate speed（C axis） |
rpm |
200/250 |
|
Radial feed speed(X axis)(stepless) |
mm/min |
1-2000 |
|
Radial maximum rapid moving speed（X axis） |
mm/min |
8000 |
|
Axial feed speed(Z axis)(stepless) |
mm/min |
1-2000 |
|
Axial maximum rapid moving speed（Z axis） |
mm/min |
8000 |
|
Tangential travel feed speed（Y axis）（stepless） |
mm/min |
1-1000 |
|
Tangential maximum rapid travel speed（Y axis） |
mm/min |
3000 |
Standard Configuration
|
Hob arbor assembly （ Φ32） |
hydraulic system |
|
Hob arbor automatic clamping device |
NC controller system |
|
Workpiece automatic clamping device |
NC data memory card |
|
Spindle positioning |
Operational software |
|
Fully-enclosed safeguards |
Residual-current circuit breaker |
|
Woking light |
Hands action button |
|
Three colour lights indicate machine status |
RS232C connector |
|
Workpieces counter |
Air conditioner for electric cabinet |
|
Main spindle ampere meter |
Chip conveyor |
|
Chip cart |
Automatic lubrication system |
|
Cutting oil tank （Wet hobbing ） |
Mist collector |
|
Cold spray gun （Wet hobbing ） |
The sizing block for machine adjustment |
Optional Configuration
|
Automatic loading/unloading material device |

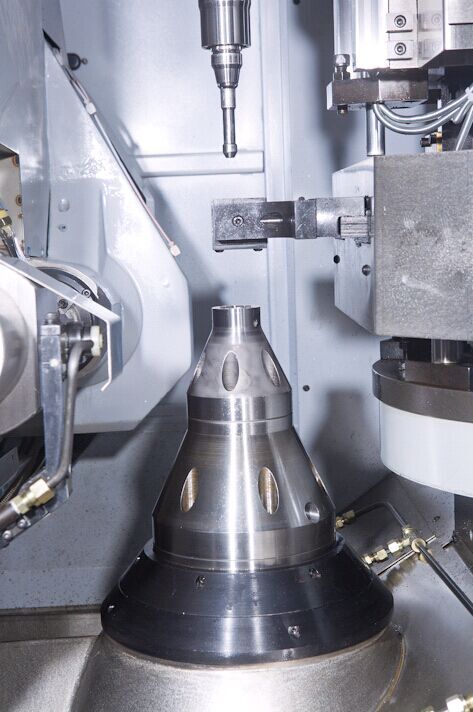

Workpiece clamping |
|
Automatic material storage |
Workpiece rough locator device |
|
Deburring device |
Automatic tooth align device |
|
Independent hob adjustment device |
Oil cooling device |
|
Hob arbor assembly:（metric system：Φ10, Φ13, Φ22, Φ27, Φ40）,（Inch system： Φ16, Φ22.225, Φ26.988, Φ38.1) |
|
Main Features

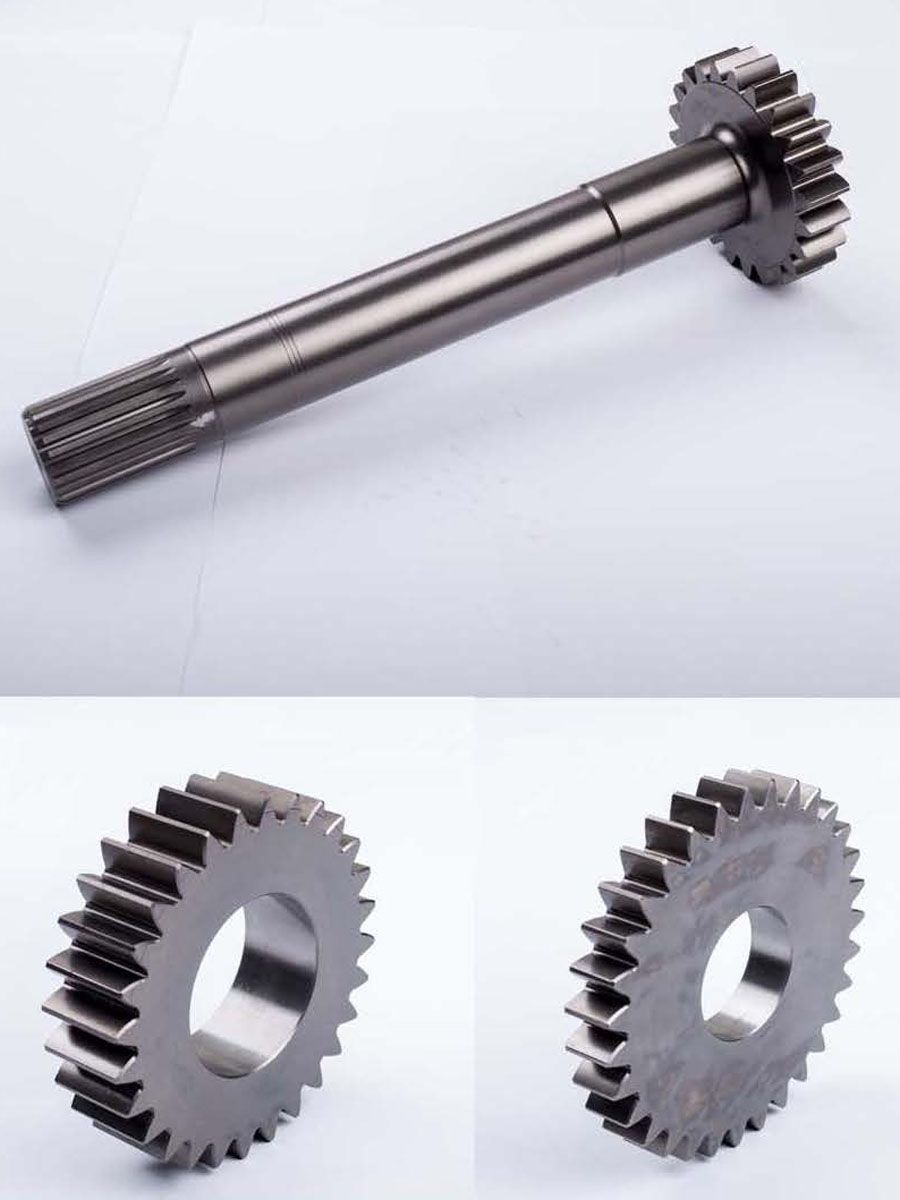

pline, Worm Gear, Sprocket and other teeth processing.
2. Adopted modular design, each functional components can be quickly combined into models with different functions, to meet the customer personalized, fast delivery requirements.
3. Easy to access and maintenance components with combining the hydraulic, lubricating and pneumatic components onto the machine tool.
4. Has fault self-diagnosis, spindle overload automatic monitoring and alarm protection functions etc.
5. Customers can purchase automatic loading and unloading device, automatic bin, deburring device and rough positioning device according to the processing needs.
