Fiberglass geogrid stitched geotextile
3 year ago

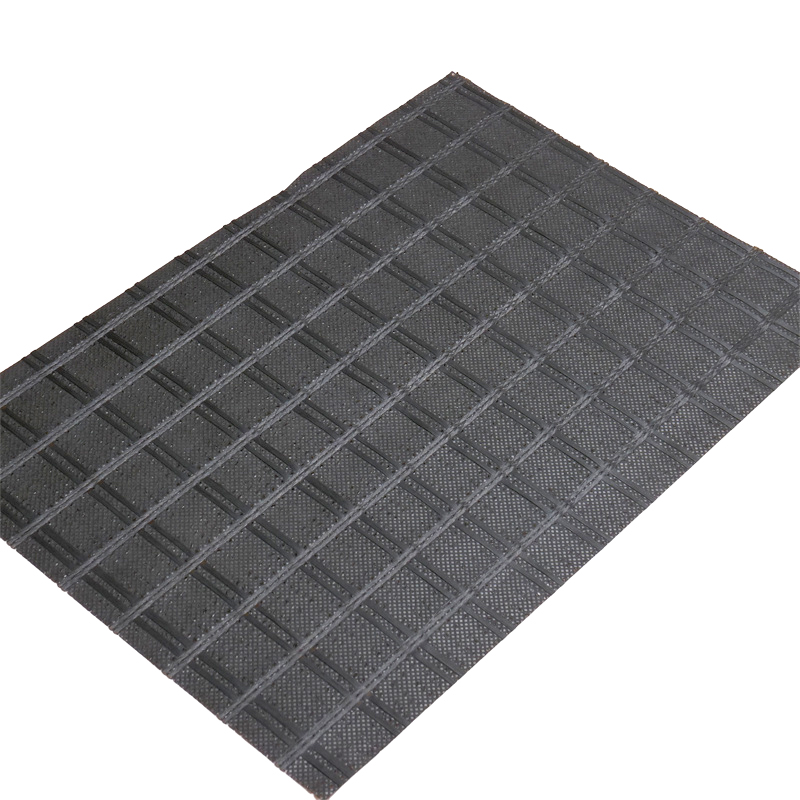

Nonwoven Geotextile Geocomposite Fiberger Geogrid
Product Introduction
High modulus polyester or Fiberglass geogrid ,bitumen or PVC polymer coated,bonded with a ligh polypropylene nonwoven geotextile. Its quality is regularly tested and it is manufactured according to ISO9001/2008 standard.
Product Function
Asphalt Reinforcement Polyester Geogrid can widely apply in the water conservation, the municipal administration, the building, the transportation, the subway, the tunnel, the environmental protection and so on.
Specification
|
Material Properties |
Unit |
|
|
|
Test Method |
|
Unit Weight |
g/m2 |
270+/-10 |
500+/-20 |
520+/-20 |
ASTM D-5261 |
|
Aperture Size |
mm |
25.4x25.4 40x40 |
Measured |
||
|
Open Area of Grid |
% |
＞80 |
CWO 22125 |
||
|
Tensile Strength (MD) |
KN/m |
50 |
100 |
120 |
ASTM D-6637 |
|
Tensile Strength (CMD) |
KN/m |
50 |
100 |
120 |
ASTM D-6637 |
|
Elongation at Break |
% |
<10 |
ASTM D-6637 |
||
|
Shrinkage @ 375° F for 15 min |
% |
<1 |
|
||
|
Melting Point |
° C |
255 |
ASTM D-276 |
||
|
Roll Size |
m |
2x100m,2.5x100m,3.95x100m,5x100m |
|||
