Multi-function Hydraulic Busbar
2 year ago

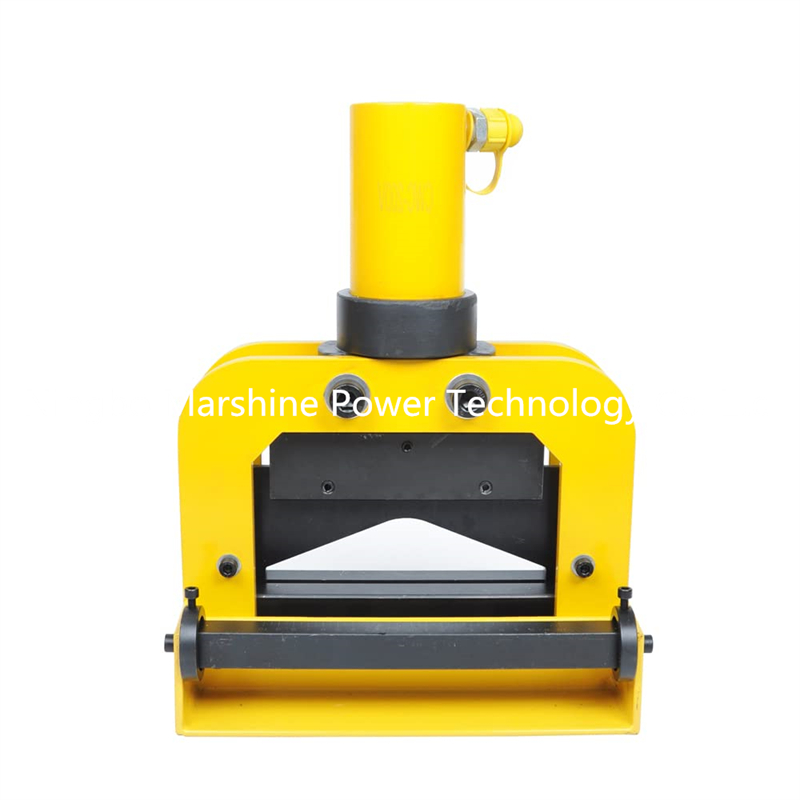

Portable Hydraulic Bus-Bar Cutter
The unilateral type structure, cutting in larger power, but it does not waste materials.
The blade adopts alloy tool steel forging fine grinding, the incision is neat, no burr and no deformation.
During cutting, the copper and aluminum row should not be fixed, any position is OK.
The pressing device is equipped with the blade side in order to prevent the tilt of copper and aluminum row.
Technical Data :
Item Number
06242-1
06242-1A
Model
CWC-150V
CWCX-150
Max.size of copper busbar(mm)
Thickness 10× Width 150
Thickness 12× Width 150
Cutting force(kN)
160
250
Weight(kg)
25.9
28
Applicable Pump
CP-700,TFP-800,ZCB6-5
HPX-700,HPX-700A,PEX-1,PEX-2
Note:Need to purchase the matched manual pump or electric pump
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
