SDDFP BHHC 660QD 10A1 X B6

high pressure filter assembly(SDDFP)

----up to 660 L/min

---up to 315bar

---material：EN-GJS400-15/steel

1. Technical Specifications

1.1 Filter Housing

Construction

The filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl.

Standard equipment:

*  connection for a clogging indicator

*  two-piece bowl for DFP/F 990 and above (optional for DFP 660 and above)

*  drain screw with pressure relief (standard for DFP/F 330 and above)

1.2   Filter Elements

Max. Allowable D.P.:

BN/HC：20bar   W/HC: 20bar    V: 210bar    BH/HC： 210bar

2.    Description

Mounting                as pressure oil filter

Temperature range    - 10 ℃ ~ + 100 ℃

Pressure setting of clogging indicator △ Pa= 5bar -0.5bar (others on request)

Cracking pressure of bypass valve △ Po= 6bar+0.6bar (others on request)

Seals    Nitrile Butadiene Rubber/ NBR (=Perbunan) （HFD liquid）

3.    Notes

*  Filter housings must be earthed.

*  When using visual clogging indicators, the BM version (visual with manual reset) only should be used.

*  When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.

4.      Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

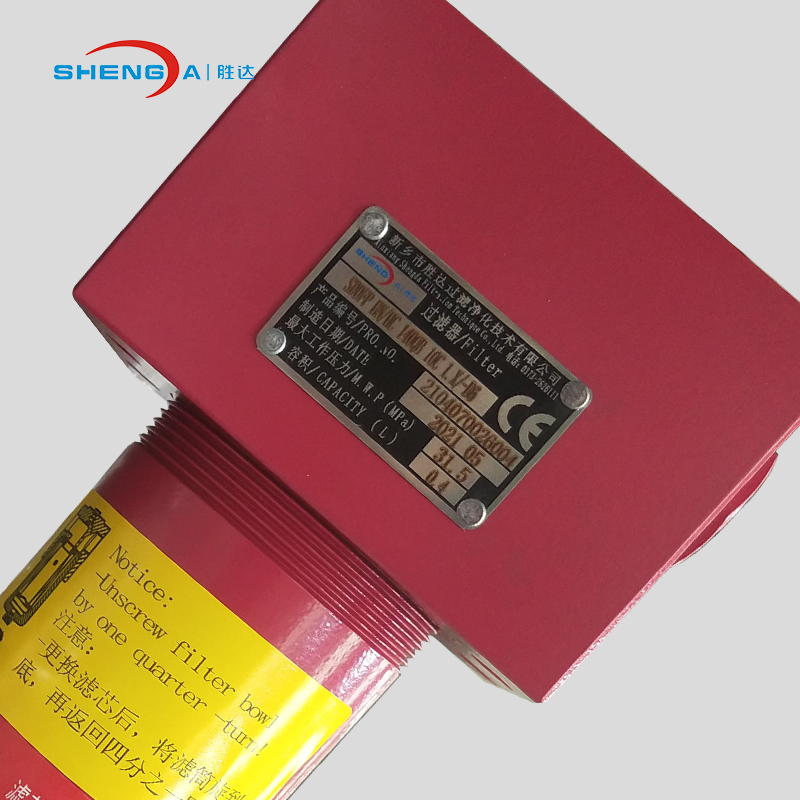

5. Photos

6. Model Selection
