Product description
Inline Oil Filter(SDRFL)
---up to 15000 L/min
---up to 16 bar
---welded version
---material: carbon steel, stainless steel
1. Construction
The filter housings are designed in accordance with international regulations. They consist of a two-piece Filter Housing with a bolt-on cover plate.
Standard equipment:
* stand
* inlet and outlet are positioned at different heights on opposite sides
* connections for venting and draining
* connection for a clogging indicator
Max. Allowable D.P.:
BN/HC：20bar； P/HC: 10bar W/HC：20bar V: 210bar
2. Description
Mounting
Filters must be flexibly mounted and not fixed rigidly to the floor or used as a pipe support.
Temperature range - 10 ℃ ~ + 100 ℃
Pressure setting of clogging indicator △ Pa=2bar – 0.2bar (others on request)
Cracking pressure of bypass valve △ Po=3 bar + 0.5bar (others on request)
Seals NBR (=Perbunan)
3. Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

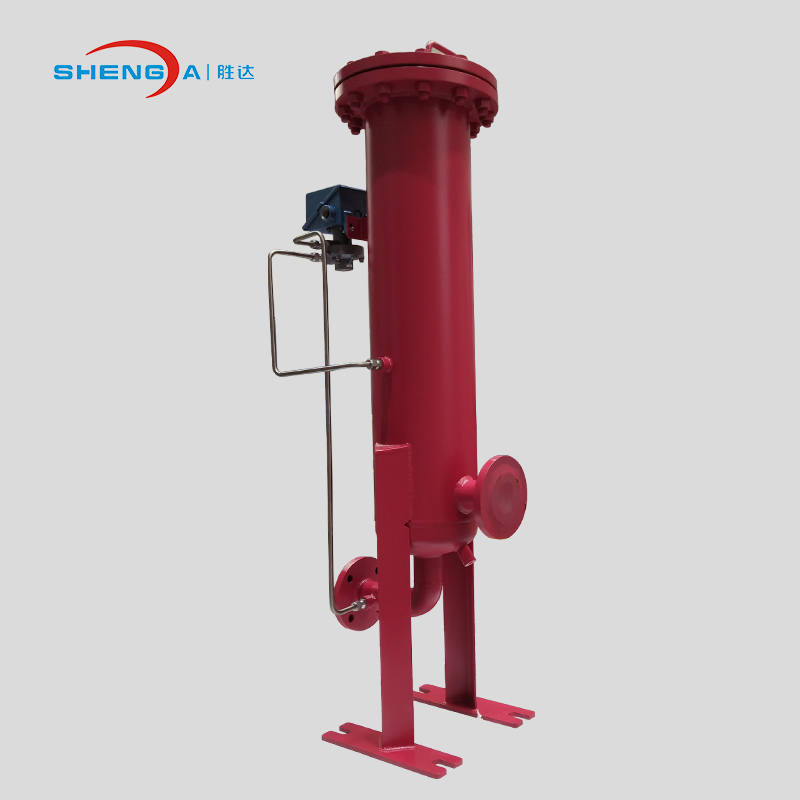

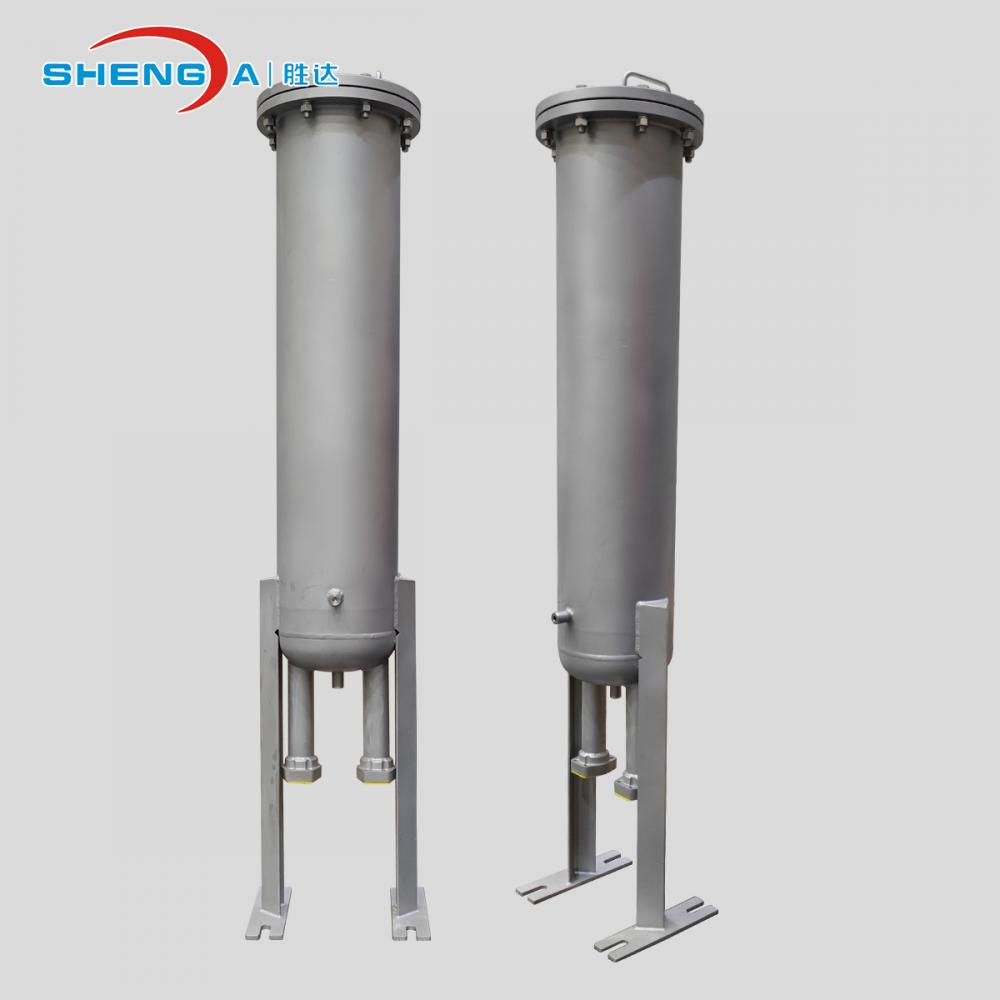

4. Photos
Xinxiang Shengda Filtration Technique Co., Ltd, is engaged in designing and manufacturing filtration products since establishment in 1998. Many professional engineers, experts devote to filtration & purification research and applications to offer technical sup
