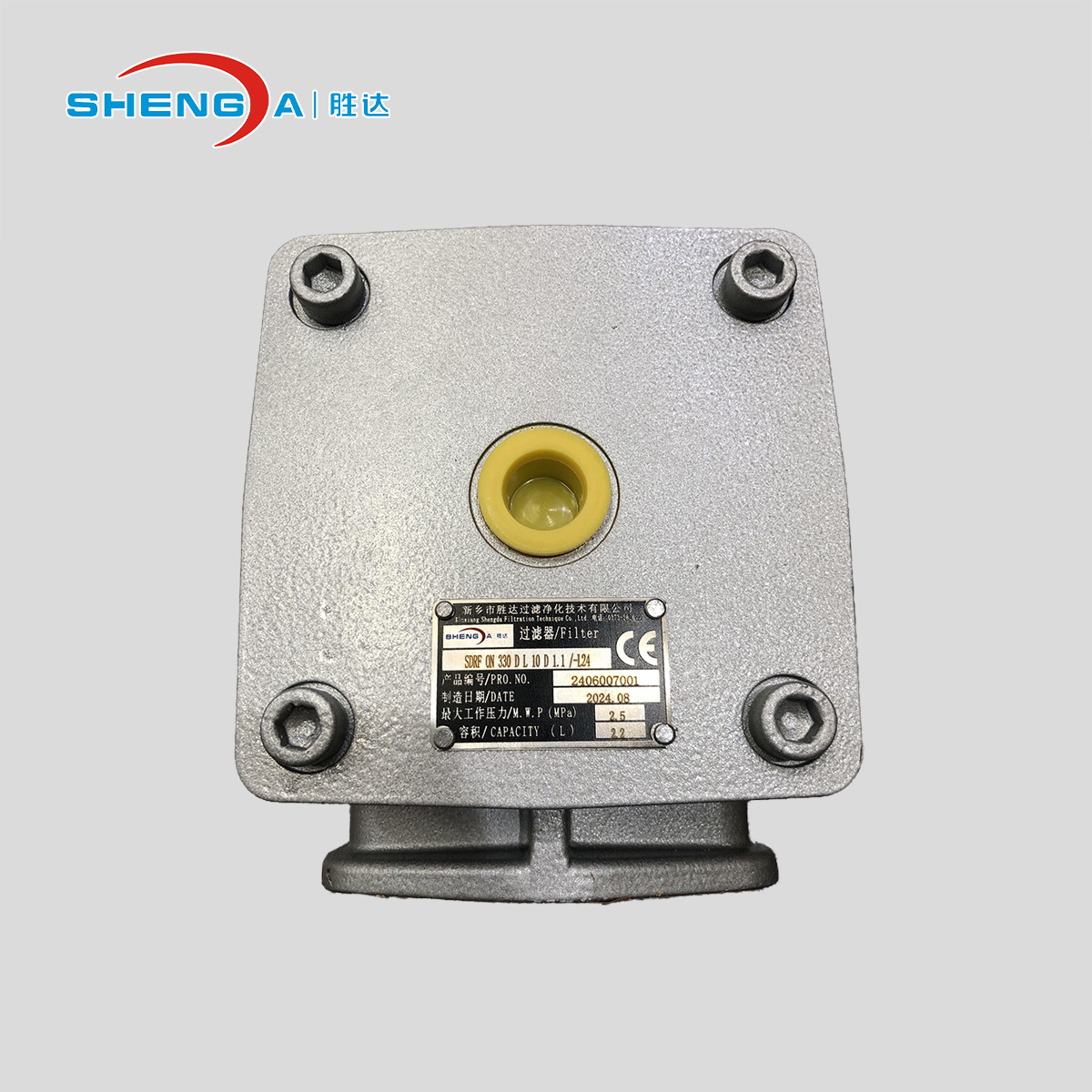

SDRF ON 240 D E

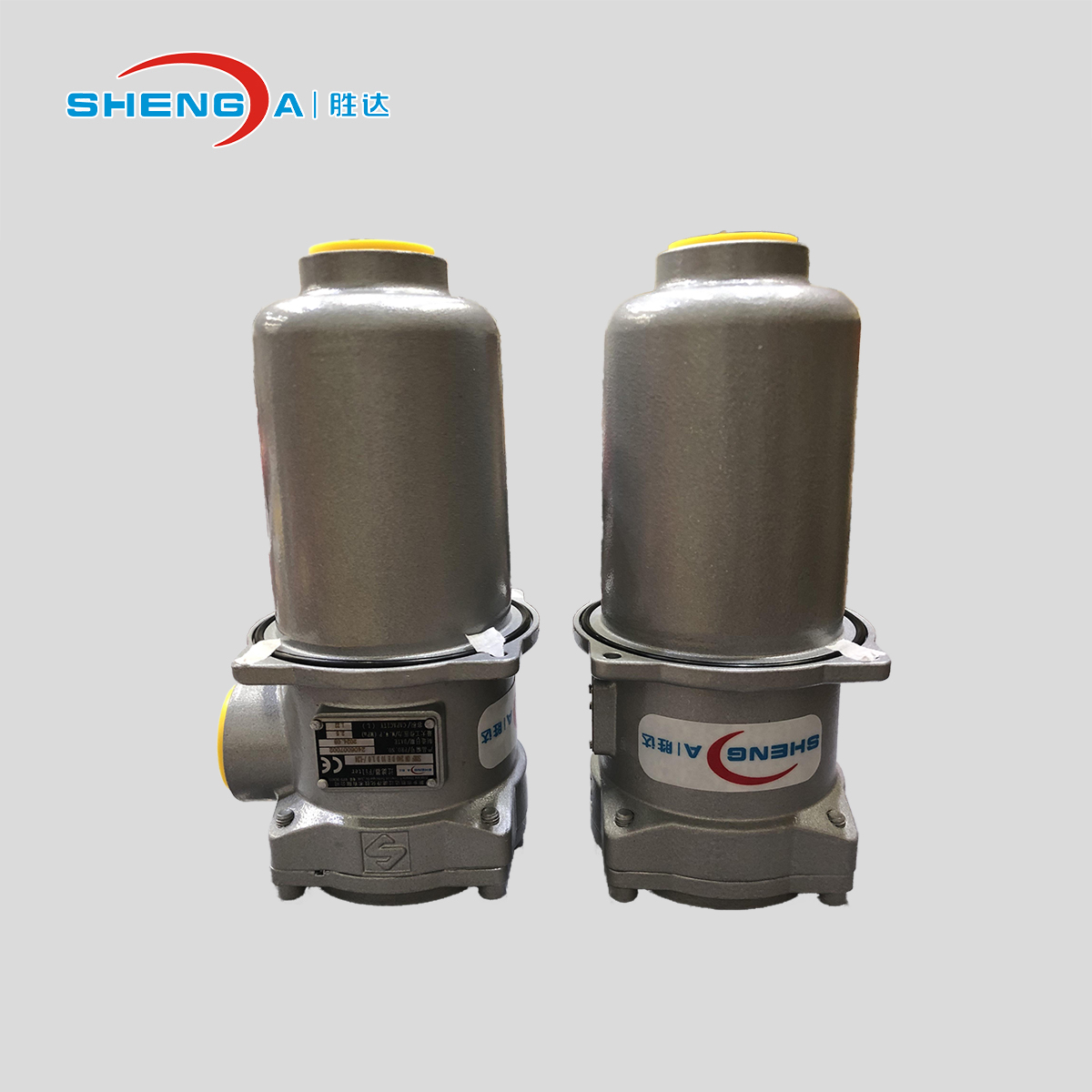

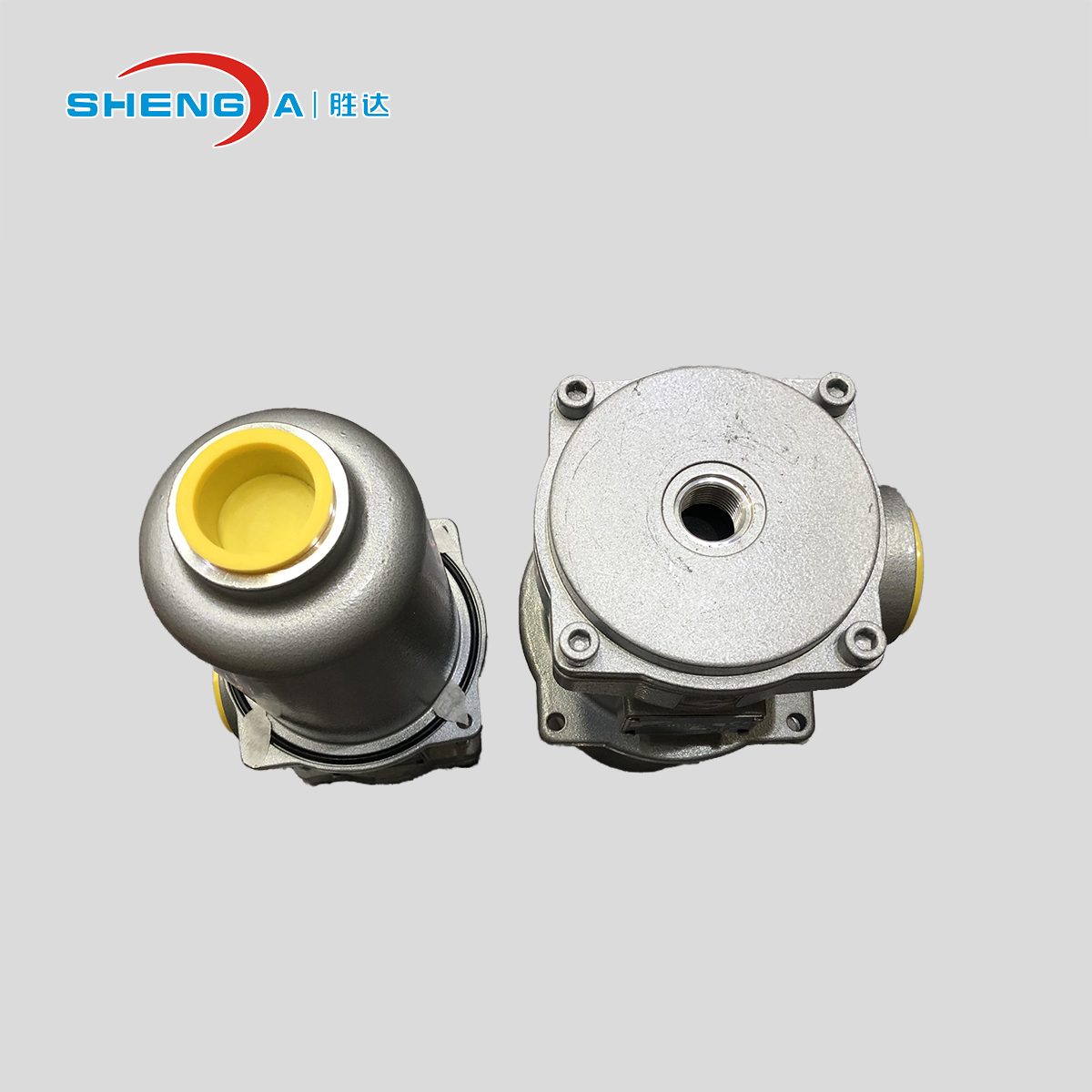

Return line filter assembly

Industrial return line filter, is mainly installed as the tank-top filter or inline filter, to remove the impurities like abrasives from the pipeline, in that way, to protect the oil tank, and prolong the life time.

Construction:

The filter housings are designed in accordance with international regulations.

They consist of a filter head with a threaded cover plate.

Standard equipment:

*with bypass valve in the element. For SDRF 450/580 the bypass valve is built into the cover plate as standard.

*connection for a clogging indicator

Filter Specification

 3. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

Filter Element

Filter elements are available with the following pressure stability values:

BN/HC: 25 bar

Paper(P/HC): 10 bar

Wire mesh( W/HC ): 30 bar

Stainless steel fiber( V ): 30 bar

General

Mounting

Oil tank-top or inline mounting

Flow

Inlet: side      Outlet: down

Temperature range

-10℃~100℃ (others on request)

Bypass cracking pressure

△Po=3bar+0.5bar (others on request)

Compatibility

It can be used for mineral oils, lubrication oils, non-flame fluids,synthetic and rapidly biodegradable fluids. For water or other application, please contact us.
