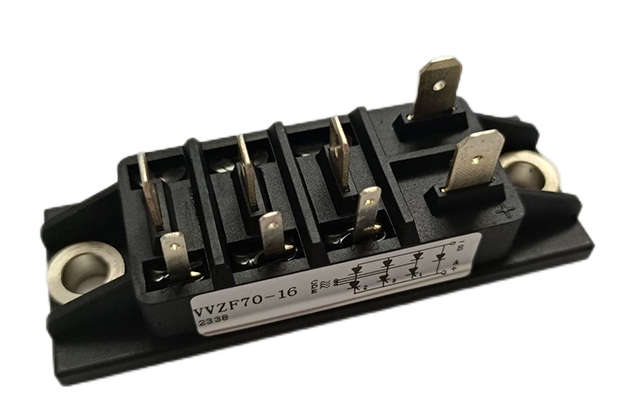

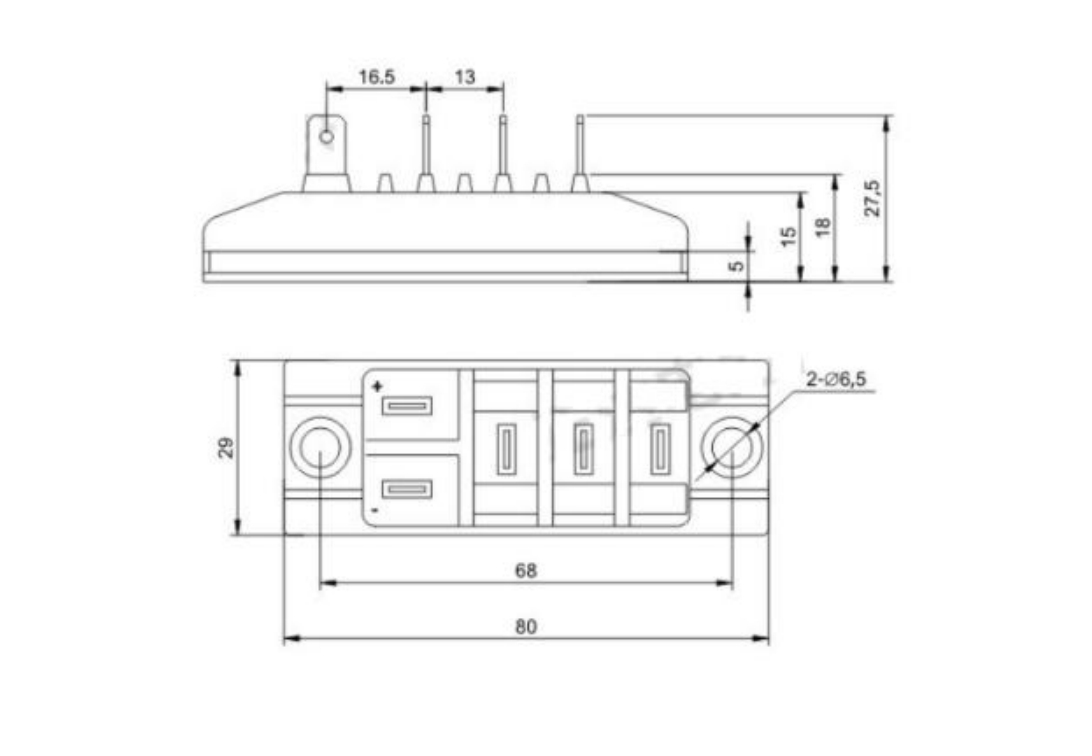

THREE PHASE THYRISTOR BRIDGE P/N:YZPST-VVZF70-16

PRODUCT FEATURES

Package with copper base plate

Isolation voltage 3000V~

Planar passivated chips

Low forward voltage drop

1/4” fast-on power terminals

PRODUCT FEATURES

Package with copper base plate

Isolation voltage 3000V~

Planar passivated chips

Low forward voltage drop

1/4” fast-on power terminals

ABSOLUTE MAXIMUM RATINGS TC=25°C unless otherwise specified

Symbol	Parameter	Test Conditions	Values	Unit
Id(AV)		TJ =85°C, module	70	A
Id(AVM)		module	70	A
IFRMS, ITRMS,		per leg	36	A
VRSM,VDSM,	Maximum None Repetitive Reverse Voltage		1600	V
VRRM,VDRM,	Maximum Repetitive Reverse Voltage		1600	V
IFSM, ITSM	TJ =45°C, VR =0 V	t = 10ms (50Hz) ,sine	550	A
	TJ =45°C, VR =0 V	t = 8.3ms (60Hz) ,sine	600	A
	TJ = 125°C, VR =0 V	t = 10ms (50Hz) ,sine	500	A
	TJ = 125°C, VR =0 V	t = 8.3ms (60Hz) ,sine	550	A
I2t	TJ =45°C, VR =0 V	t = 10ms (50Hz) ,sine	1520	A2s
	TJ =45°C, VR =0 V	t = 8.3ms (60Hz) ,sine	1520	A2s
	TJ = 125°C, VR =0 V	t = 10ms (50Hz) ,sine	1250	A2s
	TJ = 125°C, VR =0 V	t = 8.3ms (60Hz) ,sine	1250	A2s
VT		TJ = 25°C,IT = 80A	max.1.64	V
ID, IR		TJ = 125°C, VD = VDRM,VR = VRRM,	max.5	mA
VRGM			10	V
VTo		For power-loss calculations only	0.85	V
rT			11	m Ω

IH	TJ = 25°C	VD = 6V	<= 200	mA
IL	TJ = 25°C	IG = 0.45A,diG/dT=0.45A/us,tp= 10us	<= 450	mA
VGT	VD=6 V	TJ = 25°C	<= 1.5	V
VGT	VD=6 V	TJ = -40°C	<= 1.6	V
IGT	VD=6 V	TJ = 25°C	<= 100	mA
IGT	VD=6 V	TJ = -40°C	<= 200	mA
VGD	TJ = 125°C,VD = 2/3VDRM		<= 0.2	V
IGD			<= 5	mA
tgd	TJ = 25°C,VD = 1/2VDRM	IG = 0.45A,diG/dT=0.45A/us	<= 2	us
tq	TJ = 125°C,VD = 2/3VDRM	IT = 20A,diG/dT = -10A/us,tp = 200us V R= 100V,dv/dT = 15V/us	250	us
TJ	Junction Temperature		-40 to +125	°C
TSTG	Storage Temperature Range		-40 to +125	°C
Visol		a.c. 50/60Hz，r.m.s, 1s/1min	3000/2500	V~
Md	Mounting torque（M5）		5	N.m
RθJC	Per thyristor/Diode;DC per module		0.9	K /W
RθJC	Per thyristor/Diode;DC per module		0.15	K /W
Weight			50	g
