Pipe Od Turning Machine

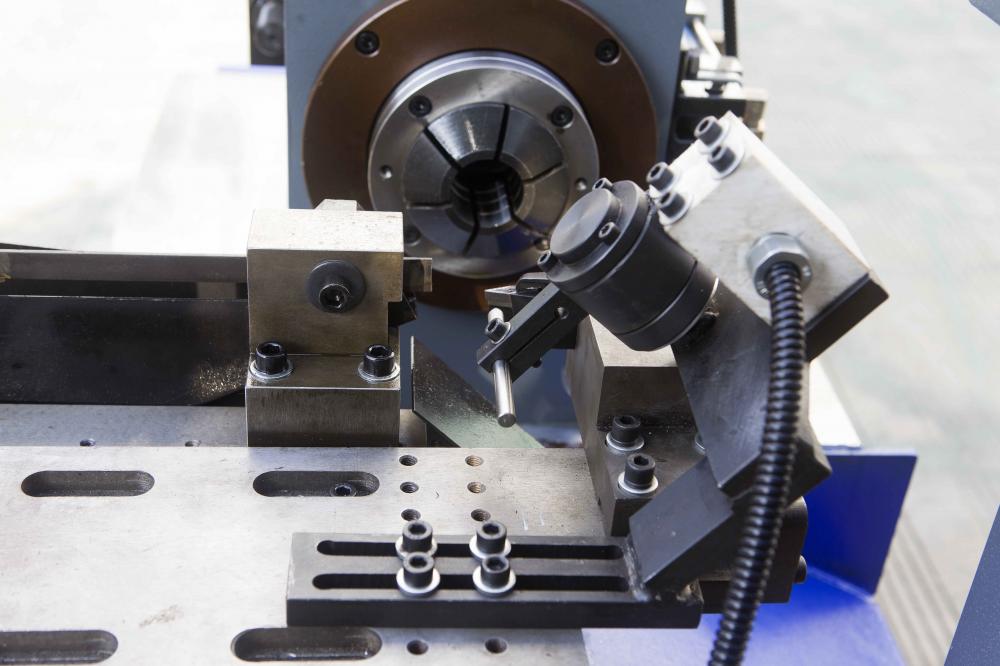

Hot Selling Metal Cold Sawing Tube Cutting Machine

Hot selling metal cold sawing tube cutting machine pressure and clamping pressure are displayed separately to ensure that the thin-walled tube is clamped without deformation. Pipe Cutting Machine has the functions of automatic feeding, fixed length, automatic clamping and automatic cutting. Automatic shutdown function without material. It can automatically clamp + feed + feed + return and other automatic cycle,Double Servo, fixed size settings, fixed number shutdown and work metering function of floating feeding system, feeding accurate and rapid, no damage to the surface of the workpiece machine tool feeding, feeding without manual operation, to achieve automatic feeding and layout function.

Model: SFPM80 type for (OD 45mm to 80 mm)

· Machining diameter: Ø 45- Ø80

· Motor Power: 3KW  6G

· Protection: The spindle motor automatically stops when no action

· Power supple: three-phase four-wire 380V 50HZ

· Feed speed: 0-10cm/s

· Productivity is:6000-8000pcs/8 hours

· Dimension (L*W*H)mm: 2000*1000*1700

· Machine weight approx: 900KG
