Hydraulic Aluminum Cutter
5 year ago

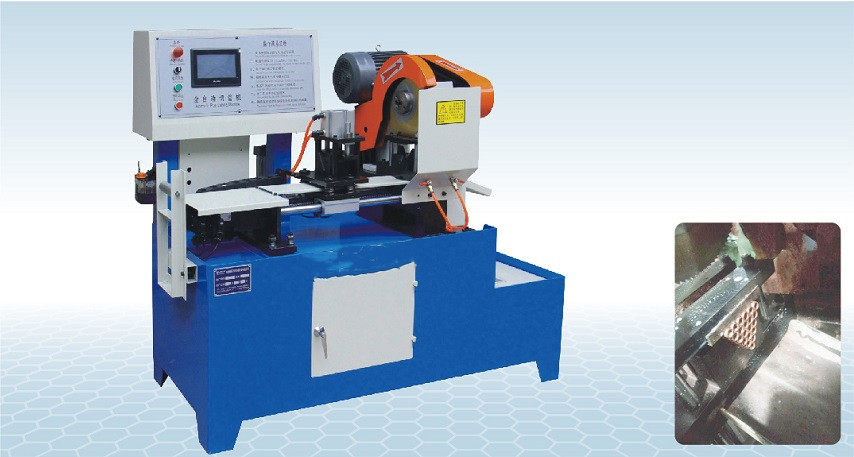

Servo Feeding Stainless Steel CNC Cold Cutting Machine
Angle Iron Cutting Machine is very good machine in oue company.The vertical slide way adopts oil-bearing ball type linear guide rail, which is light in movement and not easy to wear.PLC, touch screen control, simple operation and labor saving.The Servo Feeding Machine is feed and clamping pressure can be controlled separately, especially suitable for thin-walled tube cutting to minimize the deformation caused by clamping on the basis of ensuring no slipping.Metal Circular Saw Machine have no burr, flanging and other defects on the cut surface.
|
Technical Parameters |
|
|
Spindle motor power |
5.5kw |
|
Applied saw |
Φ 285-450mm (Φ 500mm saw blade can be customized) |
|
Cooling water pump power |
90w |
|
Maximum opening of jaw |
160mm |
|
Single feeding length |
1000mm / time, multiple feeding, lengthening can be customized |
|
Cutting accuracy |
±0.1mm |
|
Maximum cutting capacity |
|
|
Circular tube |
Φ120mm（Φ160mm can be customized） |
|
Square tube |
100×100mm |
|
Rectangular tube |
120×80mm |
|
Angle iron |
100×100mm |
|
Solid stick |
Φ70mm |
