Horizontal Down Roller Adjust 3-roller Rolling Machine Working principle and specification:
This equipment is adopt the principle of three spot into one circle , so it is the special equipment for from rolling the plate to arc shape . see the following working principle :
1. The upper roller makes vertical elevating . The power : hydraulic oil cylinder . Function :press on the plate and make plate deformation .
2. Upper roller rotating action . The power :electric motor .Function :moving the plate ,which make the continuous bend deformation and form circle .
3. Lower roller horizontal moving .The power:hydraulic oil cylinder. Function :change the distance between upper and lower roller , which to make pre-bending of front end and reduce length of straighten edge .
4. Lower roller rotating action .The power:hydraulic motor .Function :Avoiding slipping between lower roller and plate ;Helping feed plate ,reduce worker working and improve production efficiency .
5. Overturn bear overturning and reset . The power:hydraulic oil cylinder . Function :unload the finish rolling cylinder .
6. Alignment oil cylinder
lift/reset
.The power:hydraulic oil cylinder .Function
:alignment
the plate , avoid tilting (cylinder shell face can’t
vertical with shell shaft line ) that
can’t
put together .
Horizontal Down Roller Adjust 3-roller Rolling Machine Structure introduction:
W11XNC series rolling machine , it is the mature
product of our Zhouxiang company . It is special equipment for rolling the metal
plate into round , arc shape and taper shape in normal temperature or high temperature
(850°C~1050°C). The three roller
are all driving roller , the upper roller makes vertical elevating action and
two lower rollers make horizontal moving ,so they are all
driving by hydraulic oil cylinder . The working travel is control by
computer and auto-adjust level , screen
display ,precision ±0.2mm;There have
overturn mechanism on left end of upper roller .Bear overturning /reset adopt
hydraulic driving ,which is easy unloading the
after-roll products .There have separate operate table follow with this machine
, it is suitable working for the workers . Also there have safe lock part ,
which have reliable operate .So this
rolling machine is one advanced and practical equipment .
It is composed of overturn mechanism
, upper roller and transmission part , lower roller , frame part , metal plate
alignment part , balance mechanism , lubrication system , sensing device , electrical part ,

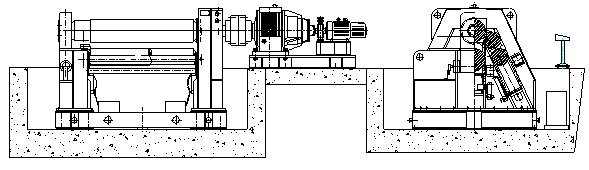

hydraulic part , basement part , see the following drawing :
1.Fall down part 2.sensing part 3. upper roller and
transmission part 4. metal plate
alignment part 5. lower roller
6. frame part 7. hydraulic part 8. electrical part 9. Centralized lubrication

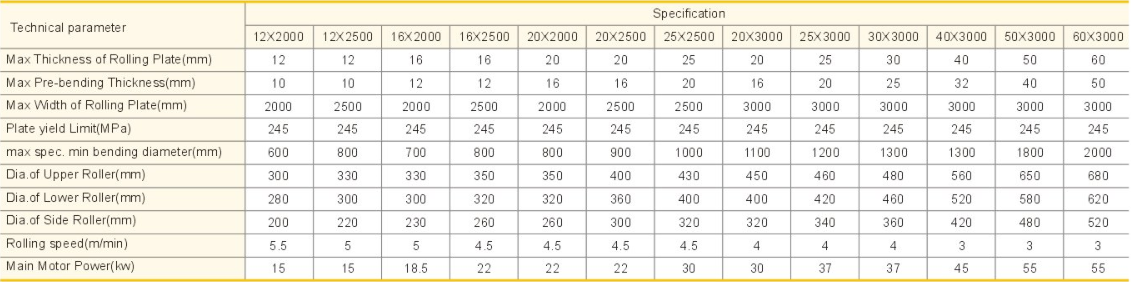

Horizontal Down Roller Adjust 3-roller Rolling Machine Technical parameters:
Horizontal Down Roller Adjust 3-roller Rolling Machine Goods Supply Range:
1. Main machine body 1 set
2. Hydraulic pump station 1 set
3. Foundation bolt 1 set
4. Control box and operation table 1 set for each
