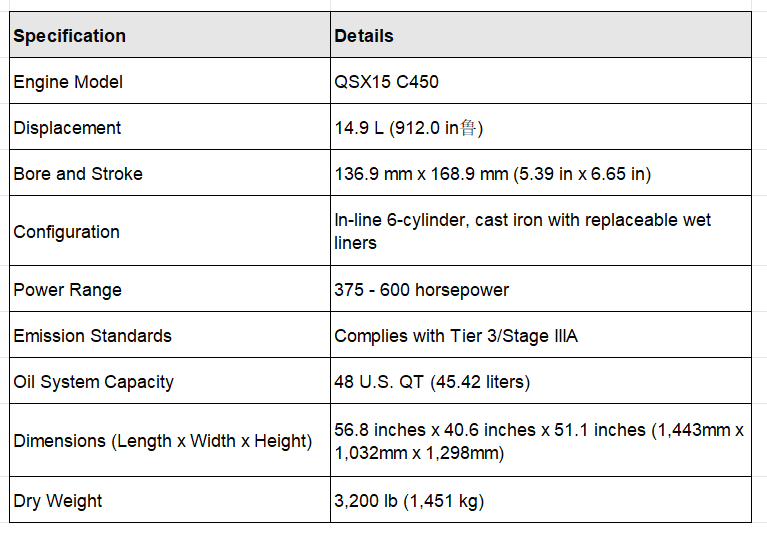

Engine QSX15 C450

Additional Materials

• Features and Benefits:

  • High Pressure Injection Fuel System (HPI): The Cummins HPI system injects fuel at up to 30,000 psi (206,842 kPa) for improved response and fuel economy. Continuously variable timing achieves low emissions.
  • Quantum System Electronic Controls: Programmable features optimize engine performance to specific duty cycles and job requirements. Continuously monitors engine conditions and automatically adjusts for peak operation. Improved durable aluminum channel wiring harness allows easy servicing.
  • Dual Overhead Cams: One drives the high-pressure fuel system, the second operates the intake and exhaust valves, providing outstanding life and performance.
  • Advanced Electronics: Programmable engine controls optimize combustion at all altitudes and conditions. They provide advanced monitoring, diagnostic, prognostic, and reporting capabilities.
  • Patented Wastegated Turbo: Delivers maximum performance without overboost at high speeds as well as increased airflow at lower speeds for improved responsiveness.

• Global Support Network: Backed by the strength of the Cummins global network of over 5,500 service locations in 160 countries, ensuring worldwide support every time.

• Maintenance Intervals: Engine Oil up to 625 hours or 6 months.

• Engine Accessories and Parts: Cummins offers a range of genuine parts for the QSX15 engine, including piston components, cylinder liners, piston rings, and turbochargers, ensuring optimal performance and longevity of the engine.
