Rough Coarse Crusher for dry spices Dust Absorption Pre Coarse Crusher1
3 year ago

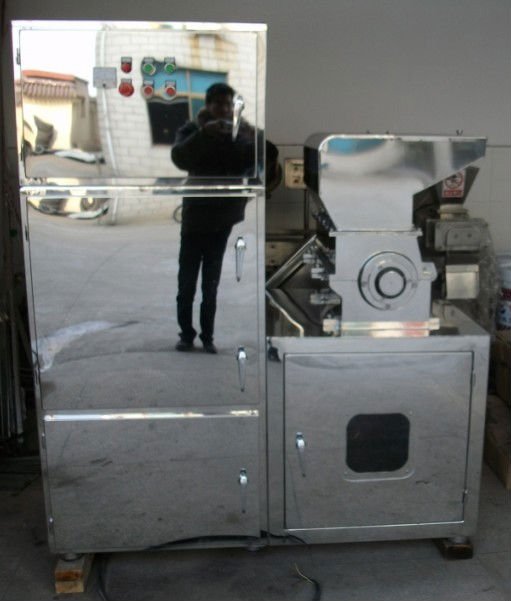

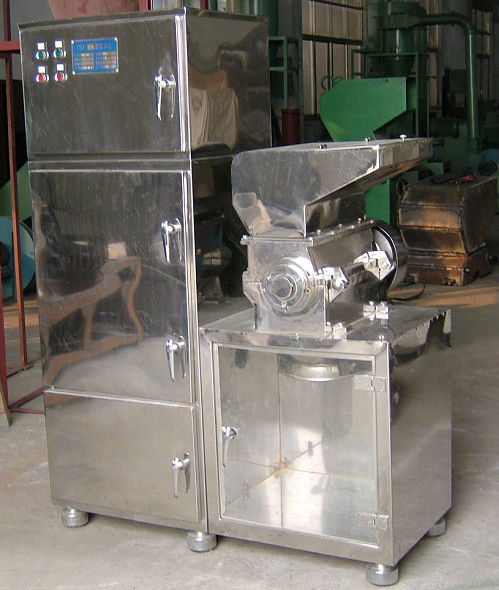

Spice Ginger Cinnamon Rough Crusher is an universal crushing machine for pre crushing big sized raw materials into smaller feeder pieces or granules for the next powder grinding machine to further process. It is widely applied in the industries of pharmaceutics, chemicals, and foodstuff, representing a new generation combing dust absorption and grinding.
Working Method
The machine utilizes the impact of revolving and fixed knives to cur and grind raw materials that will automatically enters into collection box after cutting.
The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to “GMP” standard, is made of stainless steel, thus to improve the utilization of raw material and decrease the production cost. Currently, the machine has been on the world advanced level.
Technical Data
|
Model |
Model 80B |
Model 120B |
Model 200B |
|
Capacity (kg/h) |
20—200 |
100—500 |
150—800 |
|
Size of input granules (mm) |
≤50 |
≤100 |
≤100 |
|
Fineness of products (mm) |
0.5-20 |
0.5-20 |
0.5-20 |
|
Speed of principal axis (r/min) |
400 |
400 |
400 |
|
Grinding Power (kw) |
1.5 |
3 |
5.5 |
|
Dust Absorption Power(kw) |
0.55 |
1.5 |
1.5 |
|
Weight (kg) |
180 |
380 |
560 |
|
Overall Size L×W×H (mm) |
1100×500×1500 |
1200×600×1650 |
1300×700×1700 |
|
|
