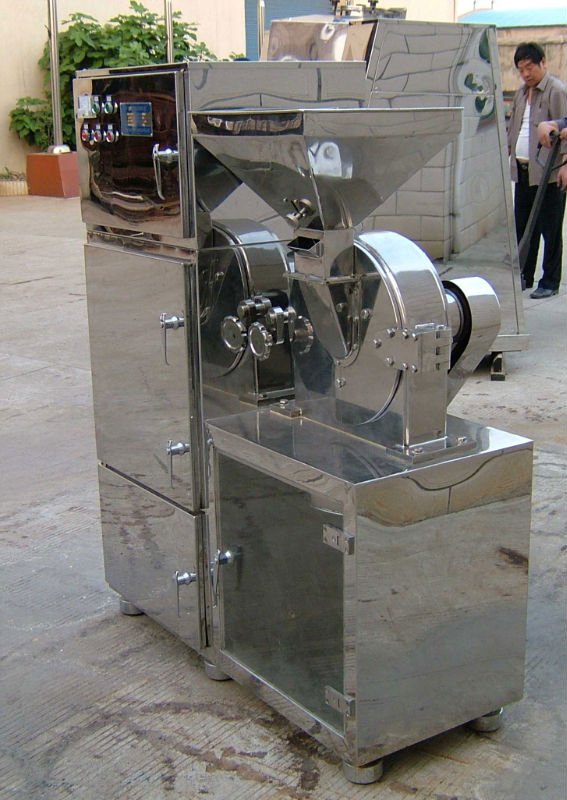

WF Series Ice Sugar Food Chemical Medicine Powder Dust Absorption Milling Machine Grinder1
3 year ago
Our Industrial Chemical Pesticide Powder Grinding Machine is mainly applied for the material grinding process in chemical,medicine and pesticide plantts.
Working Method
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The crushed material can enter the collection box by the centrifugal force. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, thus to avoid dust flying, improve the utilization of raw material and decrease the production cost. Currently, the machine has been on the world advanced level.
Technical Data
|
Model
|
Model20B
|
Model 30B
|
Model 40B
|
Model 60B
|
|
Capacitykg/h
|
20-150
|
30-300
|
40-800
|
60-1200
|
|
Speed of principal axisr/min
|
4500
|
3800
|
3400
|
2600
|
|
Size of input granulesmm
|
<6
|
<10
|
<12
|
<15
|
|
Fineness of products
|
12-120
|
12-120
|
12-120
|
12-120
|
|
Grinding powerkw
|
4
|
5.5
|
7.5
|
15
|
|
Dust absorption powerkw
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Weightkg
|
350
|
420
|
580
|
750
|
|
Overall size L×W×Hmm
|
1100×500
×1650
|
1200×600
×1650
|
1350×750
×1700
|
1650×950
×2100
|
