High Performance 3d Swing Powder Blender With Short Mixing Time1
3 year ago

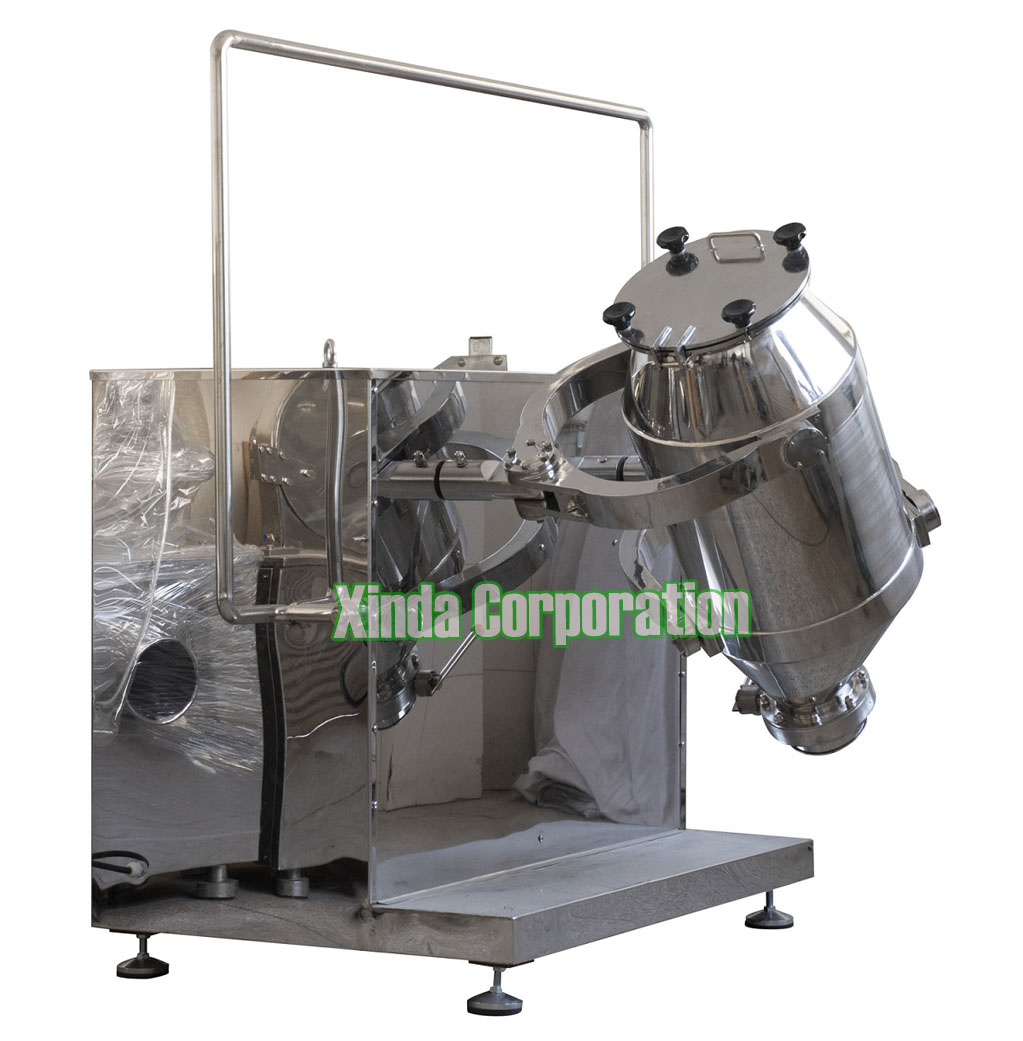

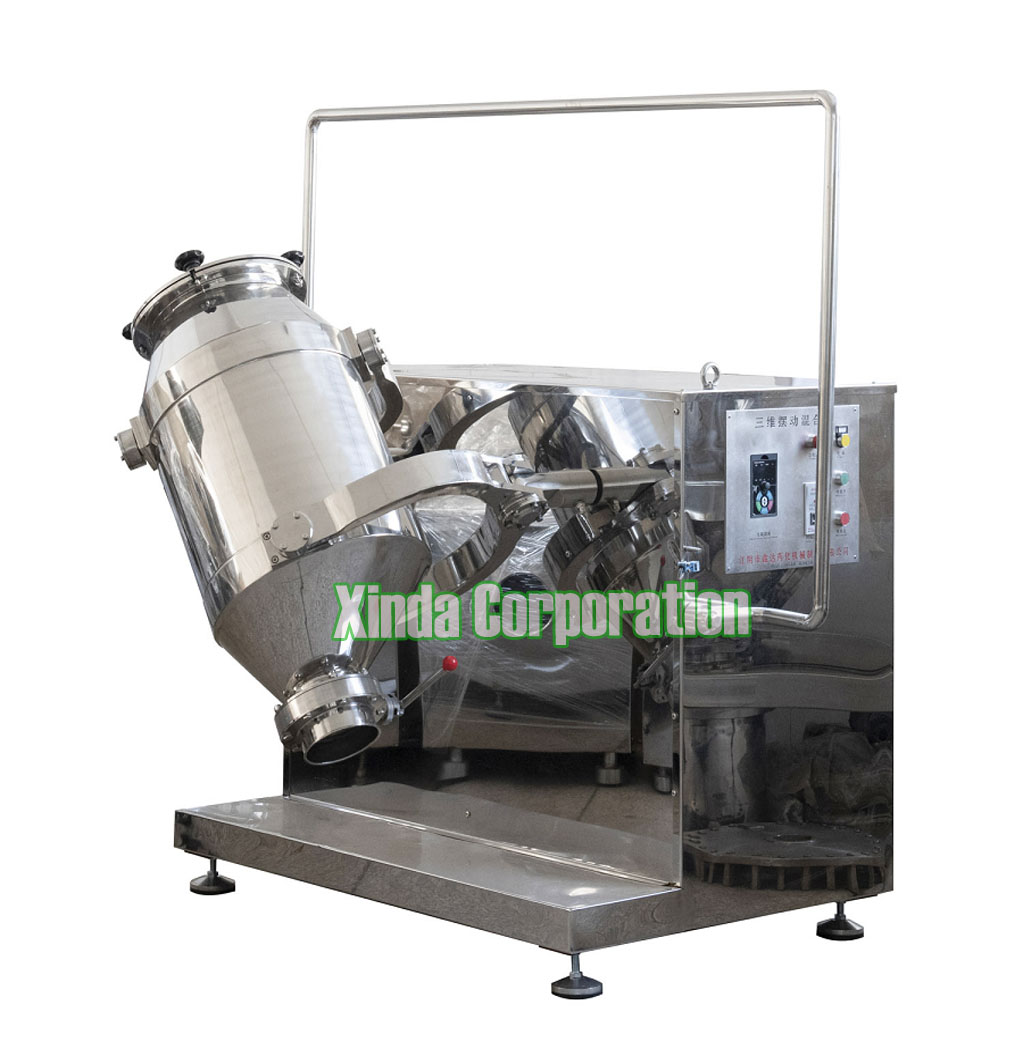

The Three Dimension Mixing Blender is an universal mixing machine equipment that is widely used for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granule size and gravity. It is an ideal and fast mixer machine
Characteristics
With its unique three-dimensional swing, parallel moving and rolling methods, the mixer can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high loading quantity and short mixing time as well.
Working method
The machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circly, radical and axially, achieving uniform mixing of different varieties of material.
Technical Data:
MODEL
SBH-10
SBH-50
SBH-100
SBH-200
300
SBH-400
SBH-500
SBH-600
SBH-800
SBH-1500
Mixing
barrel volume (L)
10
50
100
200
300
400
500
600
800
1500
Max
loading volume（L）
8
40
80
160
240
320
400
480
640
1200
Max
loading weight（kg）
5
25
50
100
150
200
250
300
400
750
Principal
axis speed（r/min）
0-15
0-15
0-15
0-15
0-15
0-15
0-15
0-15
0-15
0-15
Motor
power（kw）
0.55
1.1
1.5
2.2
4
4
5.5
5.5
7.5
15
weight（kg）
200
300
500
650
1000
1200
1380
1500
2000
3000

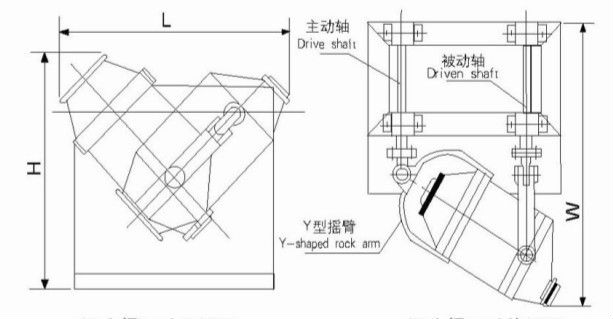

Overall
size (L×W×H)（mm）
1100x800x1000
1400x1100x1200
1700x1300x1400
1800x1600x1500
2150x1900x1600
2250x2000x1700
2500x2000x1800
2700x2100x2000
2800x2200x2200
3400x2800x2800
