Chinese Herbal Medicine Tea Bag Crusher Swing Granulator1
3 year ago

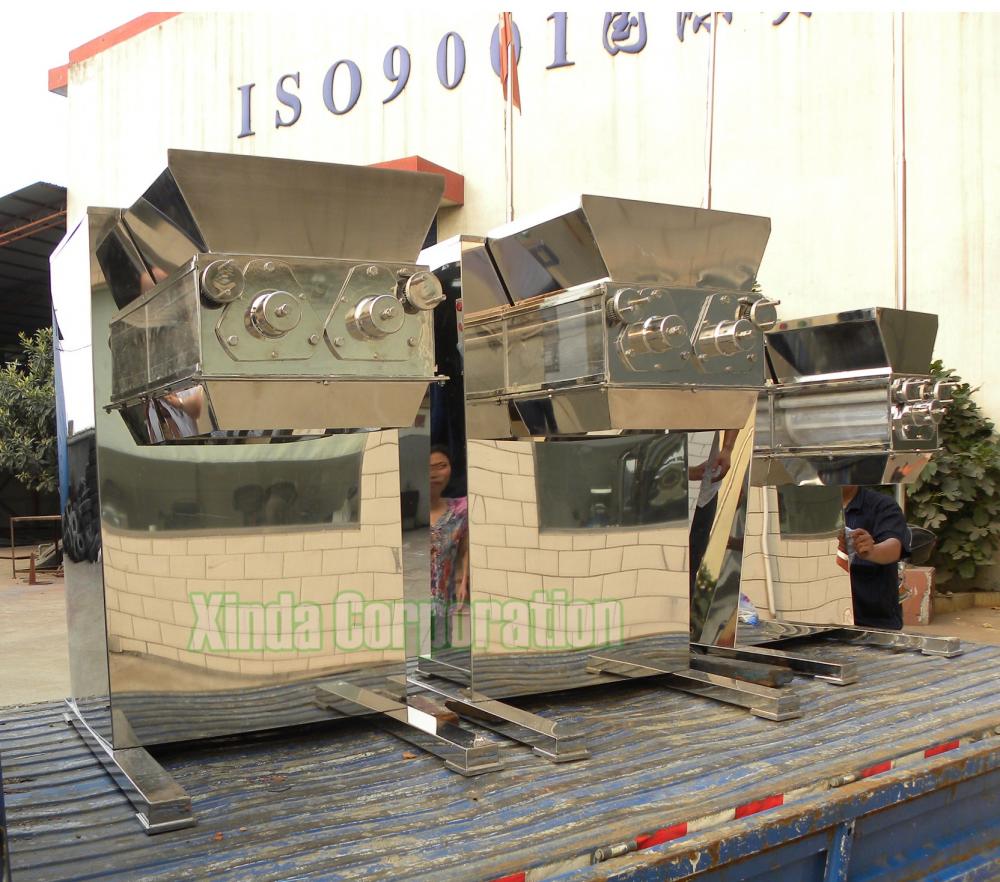

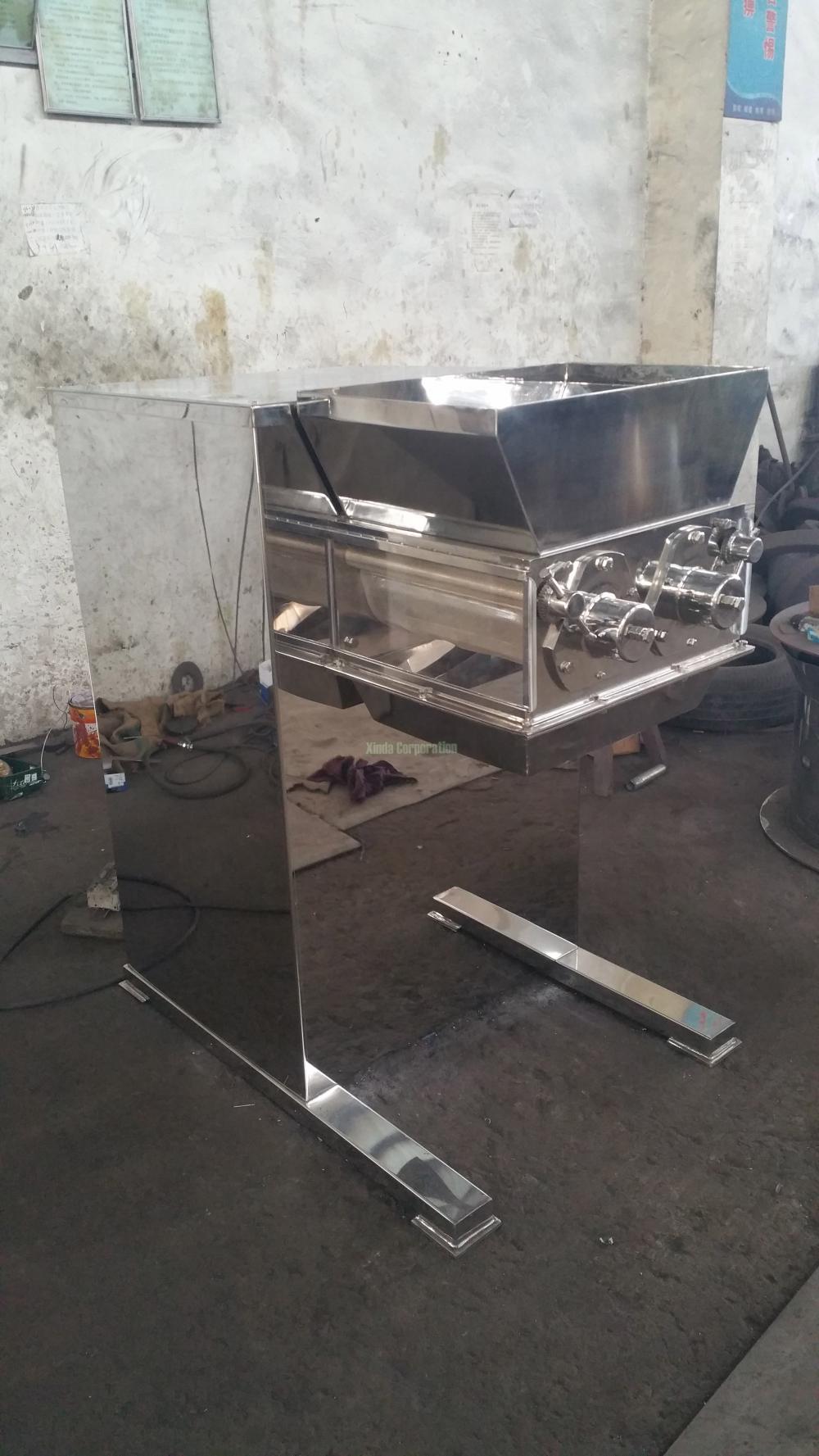

Double Head Oscillating Swing Granulator can make granules from wet powder materials or break down the dry lumpish material, which is widely used by the industries of pharmacy, chemical and foodstuff. It is a universal granulation machine for all industries.
Working Method
By driving of mechanism, the cylinder is swinging to-and-fro to force the target material squeezed from sieve to make out granules or to smash it as granules.
Technical Data
|
MODEL |
SYK-100B |
SYK-160B |
SYK-250B |
|
Capacity (kg/h) |
80-450 |
120-680 |
200-1000 |
|
motor power (kw) |
2.2 |
5.5 |
11 |
|
cylinder speed (r/min) |
55 |
55 |
40 |
|
swing angle (°) |
360 |
360 |
360 |
|
cylinder diameter (mm) |
Ф100x2 |
Ф160x2 |
Ф250x2 |
|
Weight (kg) |
380 |
650 |
950 |
|
Overall size (L×W×H) （mm） |
900×650×1100 |
1200×800×1300 |
1400×1050×1600 |
