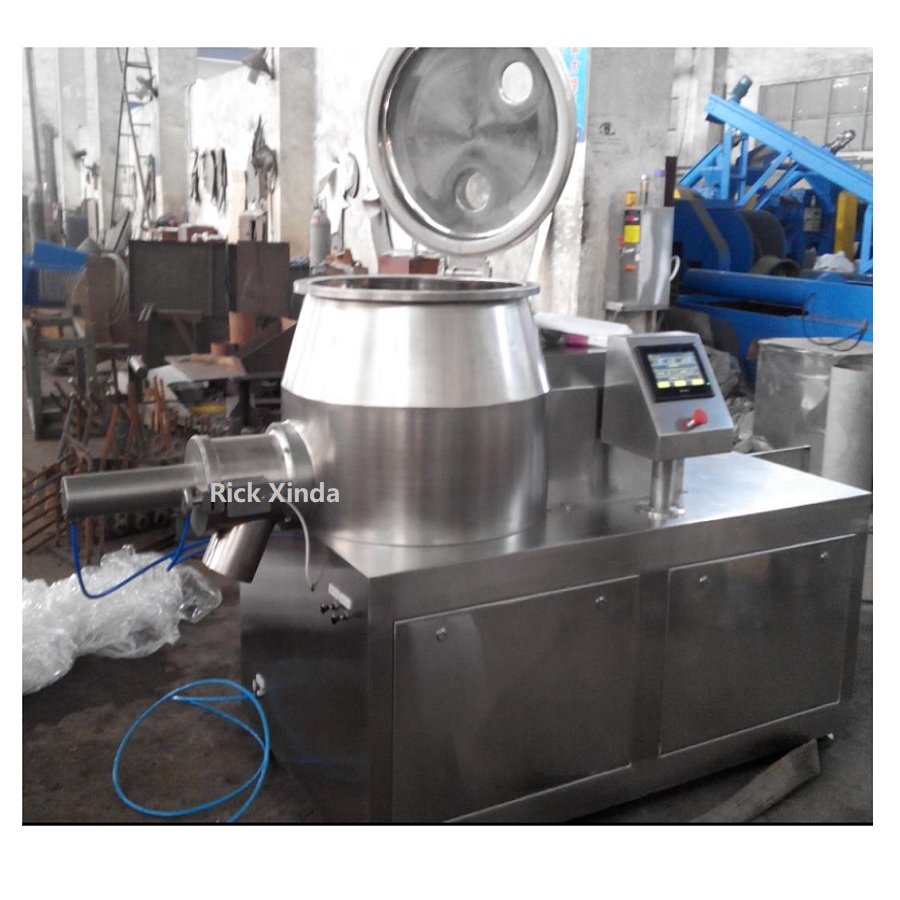

Auto PLC Touch Screen High Speed Efficient Mixing Wet Mixer Granulator1
3 year ago
Auto PLC Touch Screen High Speed Efficient Mixing Granulator is a wet granulation machine to mix and granulate wet powder materials into granules to prepare for tablet production in pharmaceutical industry, which can produce ideal granular raw material for medicine. The particles produced by this equipment have the advantages of perfect sphercity, good fluency, and are homogeneous. The productivity of this granulator machine has excellent quality. Smooth surface, better hardness, and crumbliness and liberation ability. The equipment is optimized in design and has fine workmanship, carefully designed interlocking mechanism. In addition it is provided with cleaning function. Production cost can be saved greatly by using this equipment.
Main Characteristics:

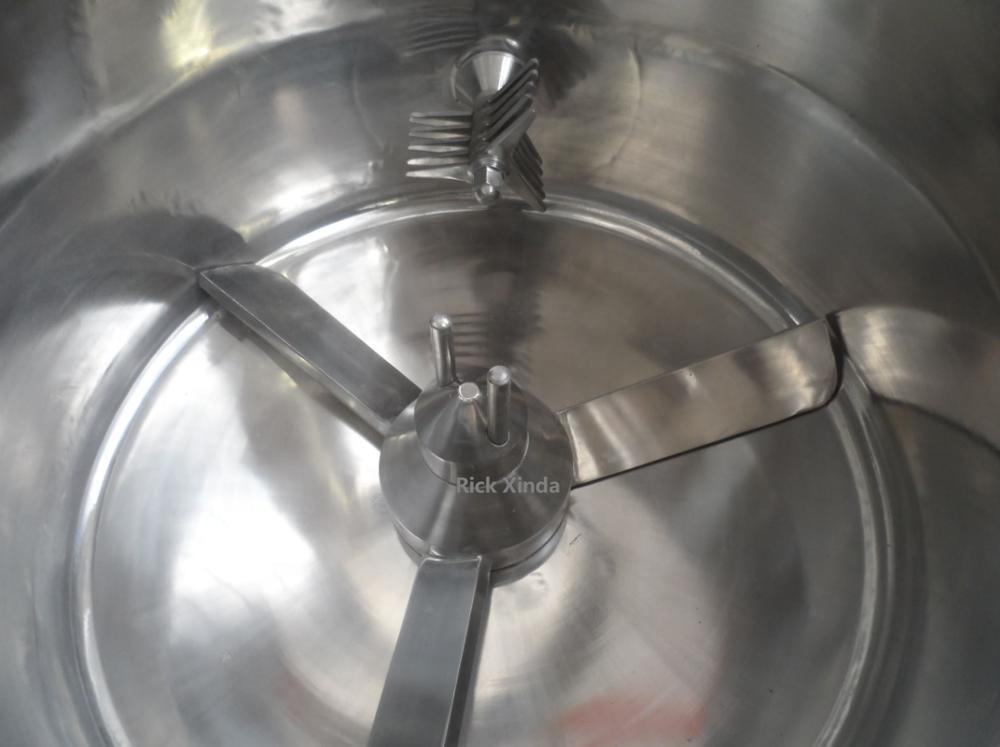

Conical material groove: material can be mixed uniformly.
Pneumatic automatic discharge: sealed and reliable.
Pneumatic pot cover lifting: easy operation.
Frequency inverter adjustable speed of cutter: the granule diameter can be controlled can be controlled easily.
The rotational speed can be controlled manually: you can try to find out the technological parameters for experiment.
Current display: measuring power consumption and monitoring the granulating process.
Input the set value through the touch-gram control: the quality of every bath is stable and uniform.
Gas filled sealing of rotating shaft: preventing the rotating shaft from being bonded by dust.
Water-spraying cleaning of rotating shaft:: easy cleaning and short cleaning time.
Cooling of interlayer jacket of material groove: improving quality of granule.
The parts, which touch material, are mare made of (polished) stainless steel: meeting the specifications of GMP.
Appropriate height if discharge outlet: it can be used together with the drying equipment.
|
Technical Parameters: |
|||||||||
|
Model |
unit |
GHL-10 |
GHL-50 |
GHL-150 |
GHL-200 |
GHL-250 |
GHL-300 |
GHL-400 |
GHL-600 |
|
capacity |
L |
10 |
50 |
150 |
200 |
250 |
300 |
400 |
600 |
|
output |
kg/batch |
3 |
15 |
50 |
80 |
100 |
130 |
200 |
280 |
|
mixing speed |
r.p.m |
300/600 |
200/400 |
180/270 |
180/270 |
180/270 |
140/220 |
106/155 |
80/120 |
|
mixing power |
kw |
1.5/2.2 |
4/5.5 |
6.5/8 |
9/11 |
9/11 |
13/16 |
18.5/22 |
22/30 |
|
cutting speed |
r.p.m |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
|
cutting power |
kw |
0.85/1.1 |
1.3/1.8 |
2.4/3 |
4.5/5.5 |
4.5/5.5 |
4.5/5.5 |
6.5/8 |
9/11 |
|
Time per batch |
mixing time: 2min / Granulating time: 1~4min |
||||||||
GHL Series High Shear Granulator
Main Introduction
High Shear Mixer Granulator, the process of Mixing, Wetting and granulating can be completed in single working period. It is suitable in the line of pharmaceutical, food, chemicals industry. It is one of the advanced facilities which meets the GMP requirement and has the characteristics of high efficiency, best quality, low consumer, none pollution as well as safety, etc.

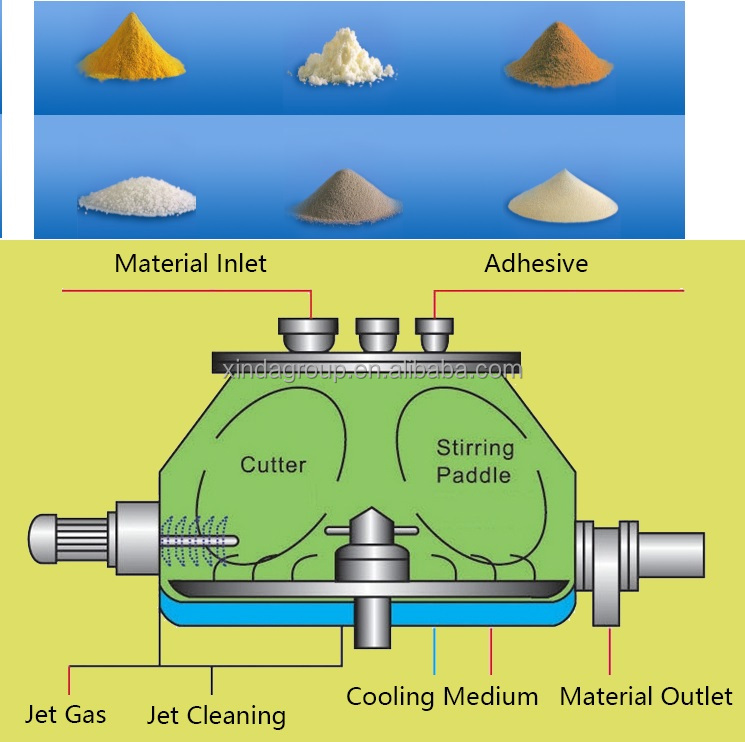

Equipment Technical Process
