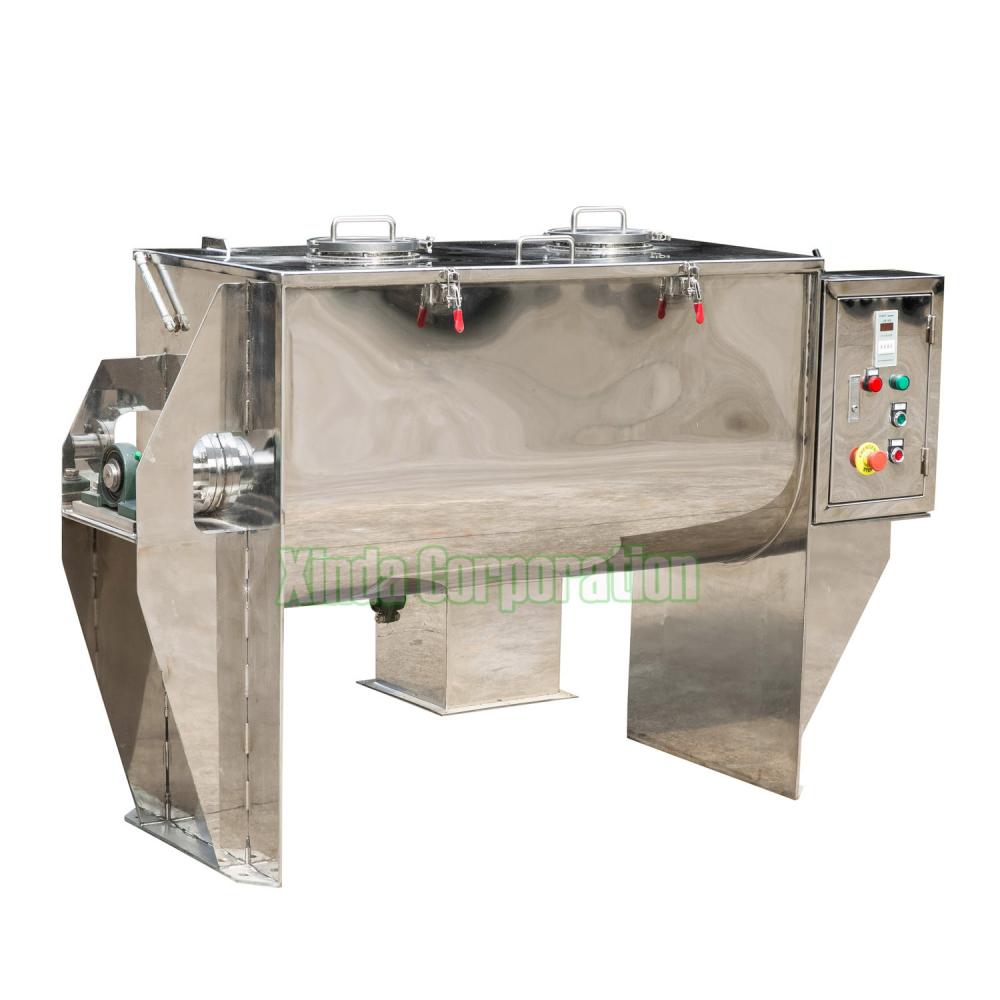

WLDH Series Horizontal Ribbon Mixer1
3 year ago
Ribbon Paddle Mixer Machine is a pioneer blending machine configured with liquid sprayer heads to spray various liquid into the blent during mixing. A new high-efficiency mixer equipment. It is mainly used in the solid-solid(powder material) and solid-liquid(powder and fluidity material)mixing in the field of chemical industry, pharmacy, foodstuff industry, etc.
Characteristics

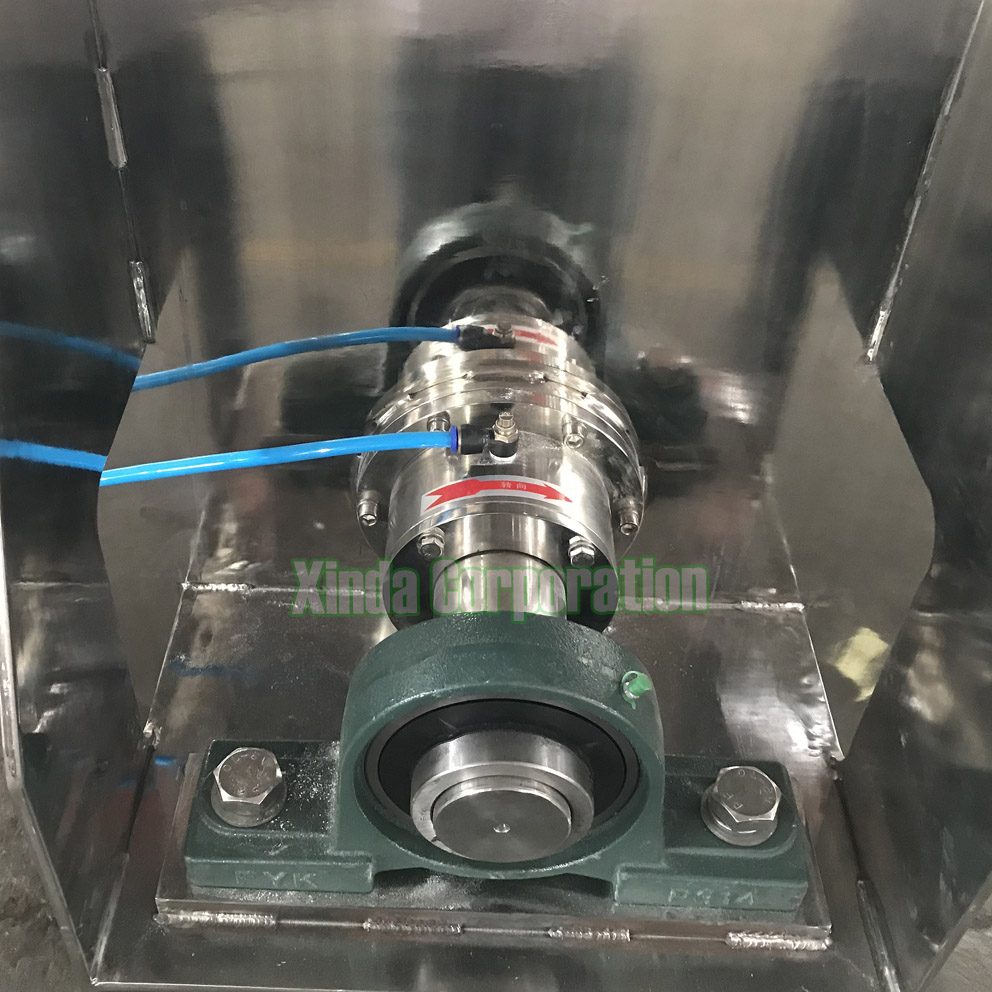

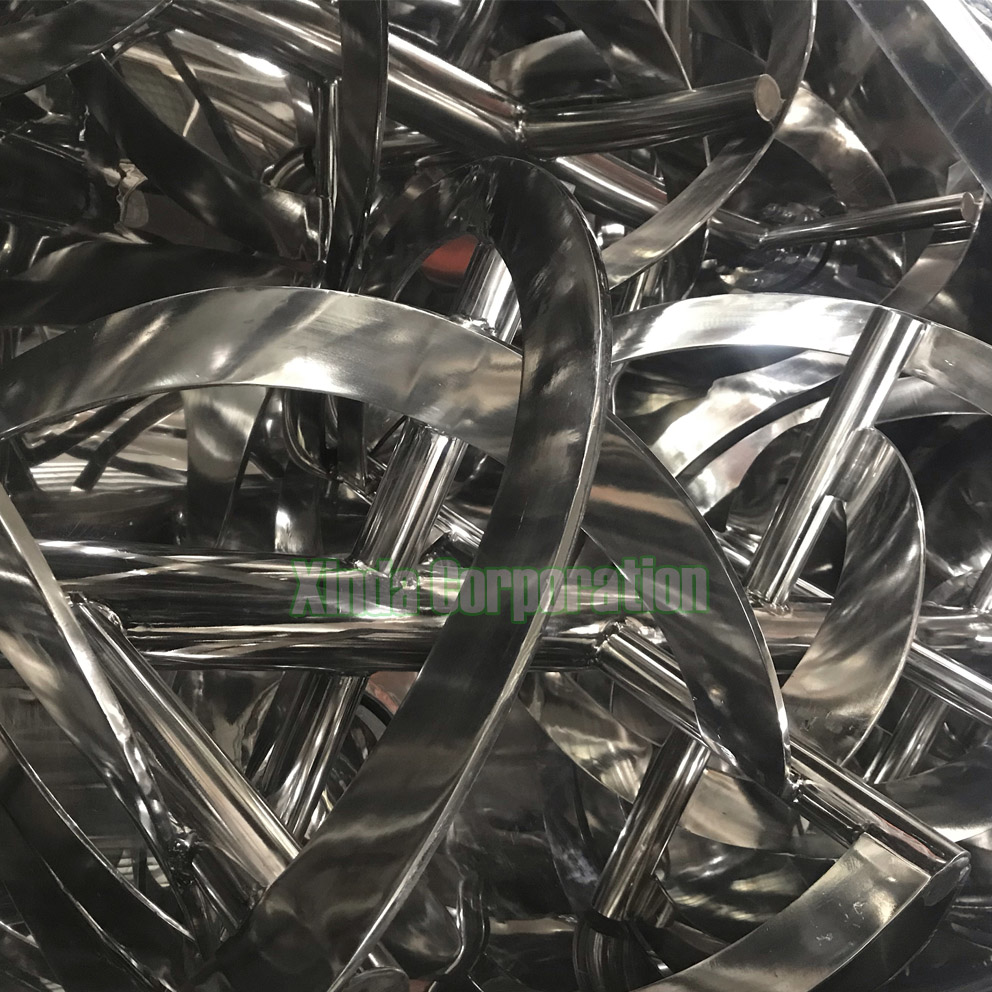

The mixer is mainly comprised of mixing barrel, double spiral ribbons and drive parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
Technical Data:
|
Model |
LDH-100 |
LDH-300 |
LDH-500 |
LDH-1000 |
LDH-1500 |
LDH-2000 |
LDH-3000 |
LDH-4000 |
LDH-6000 |
LDH-8000 |
LDH-10000 |
|
Loading Volume (m3) |
0.06 |
0.18 |
0.3 |
0.6 |
0.9 |
1.2 |
1.8 |
2.4 |
3.6 |
4.8 |
6 |
|
Max Loading/Batch (kg) |
60 |
180 |
300 |
600 |
900 |
1200 |
1800 |
2400 |
3600 |
4800 |
6000 |
|
Mixing Time (Min) |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
|
Stir Motor (Kw) |
2.2 |
4 |
5.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
|
Weight (Kg) |
320 |
510 |
920 |
1200 |
1950 |
27400 |
3300 |
3620 |
5400 |
6880 |
7900 |
|
Overall Size (LWH,mm) |
1200x750x800 |
1620x820x1100 |
1850x900x1300 |
2500x1300 x1600 |
2700x1500 x1800 |
3000x1600 x1950 |
3300x1800 x2100 |
3700x1900 x2200 |
4200x2100 x2400 |
4500x2250 x2650 |
4900x2400 x2900 |
