Stainless Steel Herbal Medicine Cutting Slicing Machine1
3 year ago

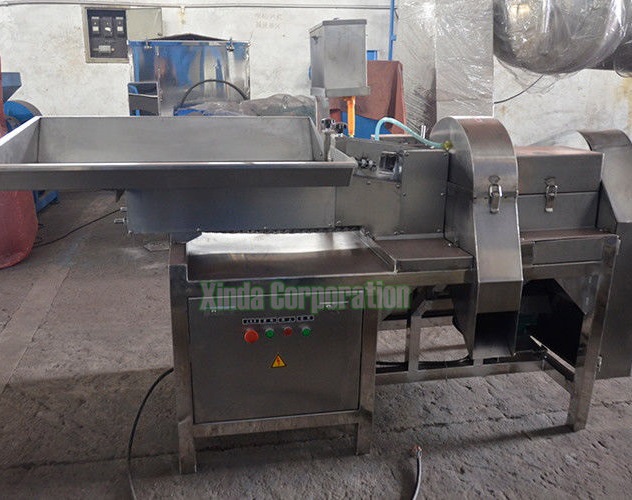

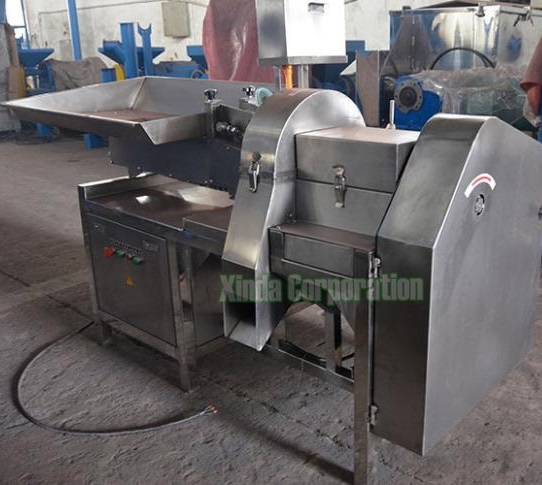

The Rotary Herbal Fruit Potato Slicing Machine is designed as cutting machine for chinese herbal materials, root, leaves, grass, especially the round shaped fruit like materials.

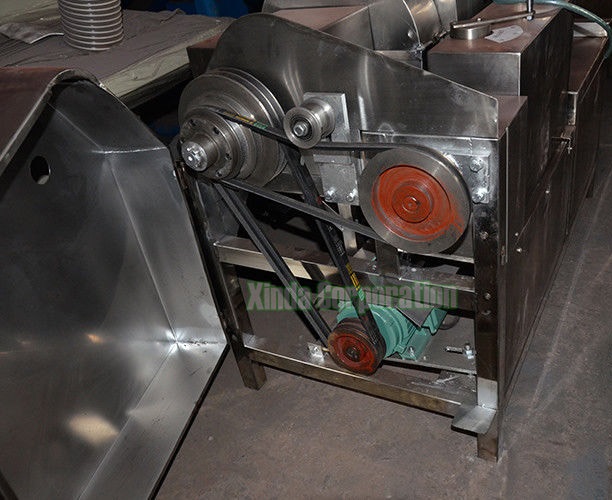

The machine consists of feeding platform, automatic chain conveyor, cutting unit and control panel. Load materials onto the platform, they will be automatically conveyed to the cutting unit and cut by the rotary blades and discharged continously. The cutting thickness can be adjusted on the machine.
Specification:
Principal
Axis Rotate speed (r/min)
1400
Slicing
blade no (piece)
4
Slicing
thickness (mm)
1-8
(adjustable)
Capacity
(kg/hour)
50-300
Motor
Powder (kw)
3
Weight
(kg)
600
Overall
Size (LWH,mm)
2000x800x1050
