Herbal Medicine Manufacturing Grinding Grinder Machine1

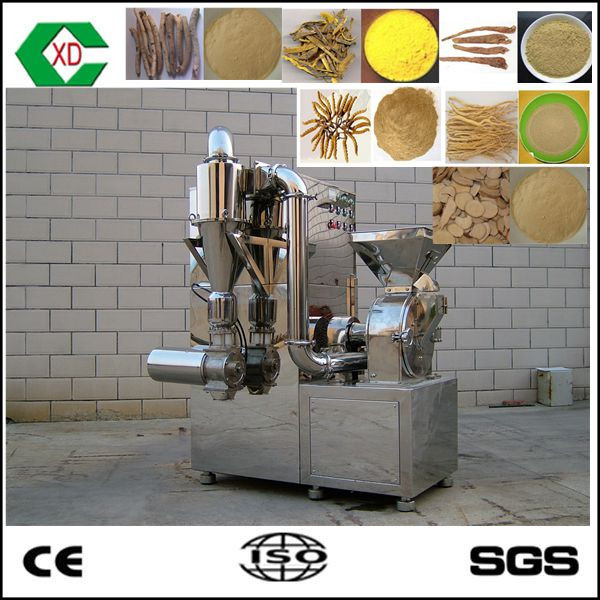

        Herbal Medicine Powder Grinding Machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially Chinese herbal medicine powder grinding process that has fiber and oil content.

Working Method

      The machine is composed of feeder,grading wheel, pulverizing blades,gears, pulvering motor, discharging gate, collection box, dust collection box and ect. Any raw material, being fed into the grind chamber through the upper feeder, is pulverized by high-speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The high-speed running fans will lead those pulverized remained in the chamber. The ber to discharge gate via negative pressure while whose unpulverized material in the chamber. The dust from grinding is filtered and recycled by PU drum filter in the dust absorption cabinet. The whole machine, designed according to "GMP" standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.

 Technical Data
