DIN RAIL Power Supply
4 year ago
Din-rail Power Supply 12vdc
It has the track structure, convenient installation and easy maintenance.
Din rail power supply applied to the equipment cabinet.
Din-rail Power Supply Ups Features:
Wide input range: 100-240V, 50/60Hz.
Easy for the installation and can move in the rail follow CCTV when working
Cooling by free air convection
LED indicator for power on
Protection: short circuit, over current, overload, over voltage.
Efficiency 85%
100% full load burn-in test
3 years warranty
Din Rail Power Supply 24vdc Technical parameter
Specification
MODEL
STD-DIN/3A
STD-DIN/5A
Output Power
36W
60W
Output Voltage
12VDC
12VDC
Output Voltage Toleance
±1%
±1%
Output Current
3A
5A
Output Current Range
0-3A
0-5A
Ripple and Noise
120mVp-p
120mVp-p
Into line Stability
±0.5%
±0.5%
Load Stability
±1%
±1%
Efficiency
85%
85%
Input Voltage Range
100-240VAC
100-240VAC
Input Current
0.18~0.39A
0.3~0.65A
Surging Current
Cold 18A/110V 36A/240V
Leakage Current
<1mA/240VAC
Overload Protection
105%~200%
T.C.
±0.03%℃(0~50℃)
Start,Rise,Hold Time
200ms 100ms 20ms
Mechanical Shock
10~500Hz, 2G 10min./1Period,Time 60min
Insulation Strength
I&O:1.5KVAC I&C:1.5KVAC I&C:0.5KVAC
Isolation Resistance
I&O,I&C,O&C:500VDC/100MΩ
Working Temperature
-10℃~60℃, 20%~90%RH
Isolation Resistance
-20℃~85℃, 10%~95%RH
Size
92*87.5*54.5mm
Safety Standard
UL1012 REQUIREMENT (NOT APPLY FOR THE MARK)
EMC Standard
FCC PART15JCONDUCTION CLASSA

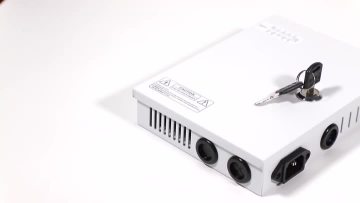

Din-rail Power Supply Product show
Din Rail Power Supply Applications Application
Related product
About US
Our Advantages:
1.Manufacturing Process
2. Exhibition:
3.Certification:
4.Packing and Shipping:
5. Q&A:
MOQ: No MOQ for trial order, and we can provide free samples to test.
Payment: T/T, Western Union, Paypal, Trade Assurance.
Delivery: 7 working days for sample order,12 working days for 500pcs.
FOB , EXW and CIF all are available.
Shipping freight are quoted under your requests.
Loading port: Shenzhen/Donguan /HongKong.
Discounts are offered based on large quantities.
Price: Get quote
6. Our Service :
1. What service we can provide ?
1. All inquiries will be replied within 24 hours
2. Professional manufacturer,welcom to visit our website
3. OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification;
4. After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5. High efficiency,long life span,reasonable&competetative price,fast lead time;
6. We have our engineer team, if you have any question about your LED applications, let us know freely.
