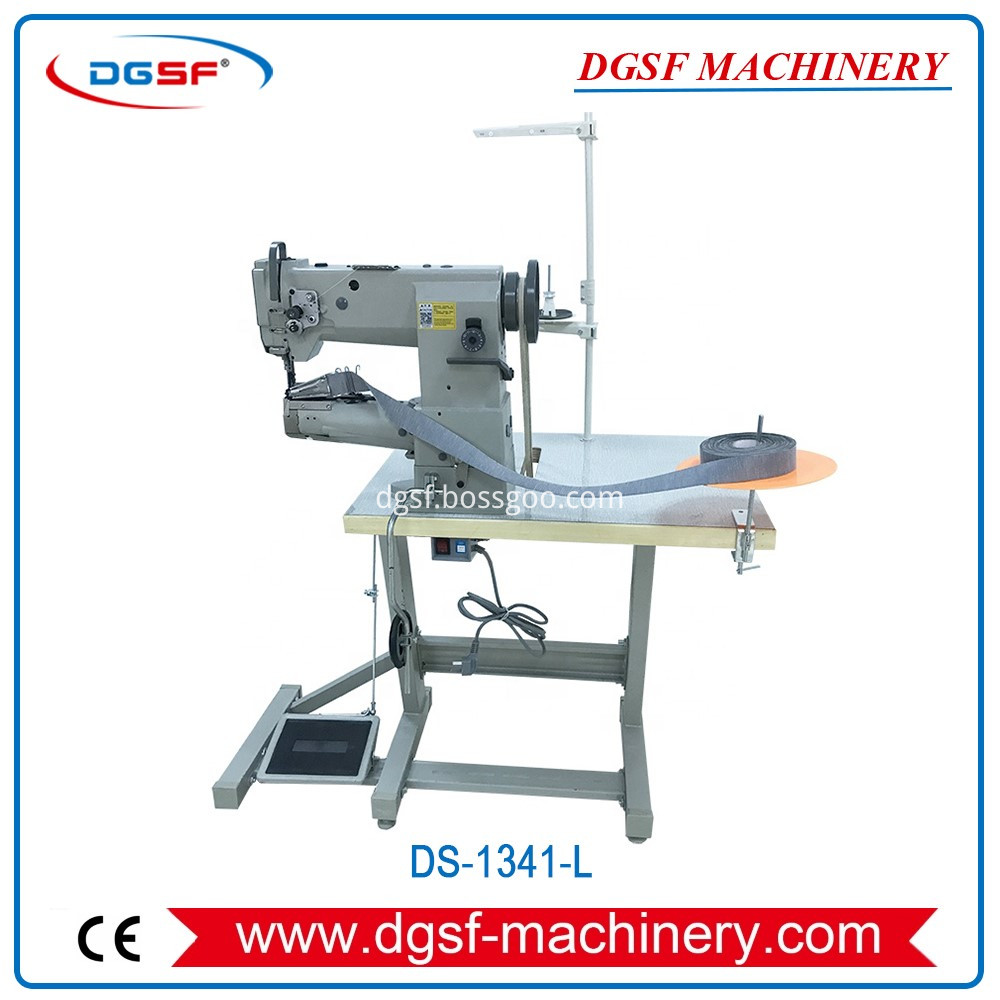

Cylinder Bed Compound Feed Lockstitch Big Hook Sewing Machine DS-1341-L
2 year ago
Cylinder Bed Compound Feed Lockstitch Big Hook Sewing Machine DS-1341-L
Product Description
1. On the basis of the old model, the stitching strength is increased. The stitching starts from 20 strands (the presser foot lifting height is increased by 2mm).
2. The design of full-automatic circulation oil supply lubrication can greatly reduce the loss of parts and the noise produced during sewing.
3. Large needle distance design, stitch length up to 11mm, large mouth design, cylinder diameter up to 70mm.
4. With the latest design, it can adjust the new type of tooth frame, and the service life is greatly extended.
Condition New
Brand Name DGSF
Type Industrial sewing machine
Model DS-1341-L
Place of Origin Guangzhou, China (Mainland)
Stitch Formation Single needle lock stitch, big hook
Mechanical Configuration cylinder-bed
Max Sewing Speed 2200r.p.m
Height of Presser Foot 15mm
Stitch Length 0-11mm
Tube diameter 70mm
Power 400W 2P clutch motor
Dimensions 58*30*61cm
Feed Mechanism Compound feed
Certification CE
Color White
Needle DP x 17 (#16-#27 Optional)
Gross Weight 80KG
