Product details

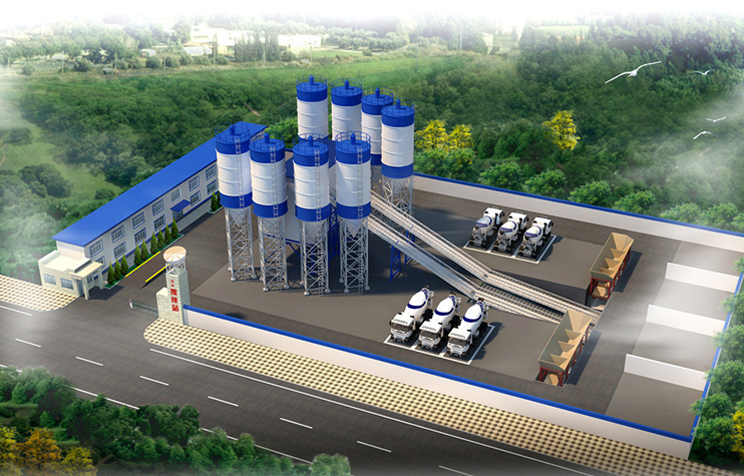

Large Fully Automatic 90-300cbm/hour Concrete Batching Plant
Product structure features：

1、Integrated design、reasonable structure design and land place savings；

2、Reliable quality and safety working performance；

3、Flexible arrangement、easy to dismantle and move；

4、Low powdery、low noise、using pulse electric dust removal, dust removal area is large, high efficiency and more green-environmental protection；

5、Highly accurate electronic weighing，high measurement accuracy；

6、Matching products are all adopted by domestic famous brand.

main technical parameters

Global parameters	Model	HZS90	HZS120	HZS180	HZS240	HZS300
	Maximum productivity(m³/h)	90	120	180	240	300
	Discharging height(m)	3.8	4	4	4.2	4.2
	Working cycle time(s)	60	60	60	60	60
	Out dimension(mm) (Length×Width×Height)	51093×19100×21600	55885×20200×21600	59811×20660×23700	56000×22000×21000	57000×25000×23000
	Total power(kw)	145	210	260	330	370
Concrete Mixer	Model	JS1500	JS2000	JS3000	JS4000	JS5000
Batcher	Model	PLD2400	PLD3200	PLD4800	Warehouse type	Warehouse type
	Storage bin capacity（m³）	15	18	25	35-50	35-50
	Width of Belt	800	800	1000	1200	1200
	Belt Power (kw)	7.5	11	15	22	22
Pneumatic system	Air compressor	1.8-7	1.8-7	1.8-7	1.8-7	1.8-7
	Displacement (m³/min)	1.67	1.67	1.67	1.67	1.67
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8	0.8
	Motor power(kw)	7.5	11	15	18.5	18.5
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%	±1%

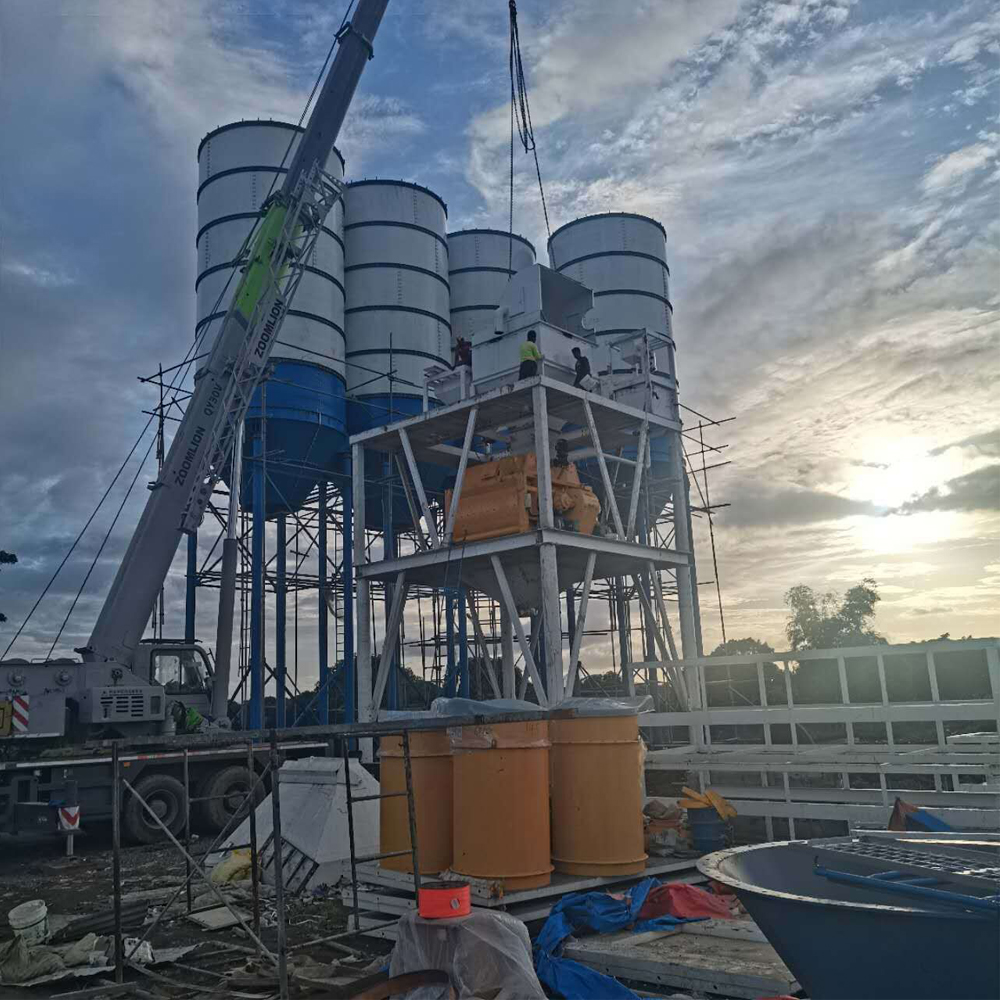

cement silo 4*200T for Large Fully Automatic 180cbm/hour Concrete Batching Plant
