RT series motor controller is low voltage,four-quadrant regeneration and pulse-width modulation speed controlling system. The MCU (Microcontroller Unit) intelligent control makes quick response speed,smooth running,reliable operation and complete proportions,etc.

*PWM( pulse width modulation)

The PWM makes motor low noise, high efficiency and little maintenance.Service life of DC motor can be furtherly increased.

*Four-quadrant regeneration in operating mode.

*Regenerative braking function

External directional(or reversing)contactor is not required and components or parts of motor can be protected from superheated or burnout.

*Enable/Brake/Reversing terminal

One of above functions can be achieved with help of passive switching value or open (or broken)circuit of transistor collector.

*Status Light

Power light and various fault warning lights make the status of motor controller visible.

*Speed value of Forward or Reverse can be set respectively.

*Value of output current can be set.

*Value of brake current can be set.

*Torque compensation

*Double closed loop PI regulation(Voltage and current)

*Standard analog signal

Analog quantity (0-5V) or potentiometer are suitable for controlling.

*Overvoltage or undervoltage protection

*Overheating protection

When temperature is overtop,motor controller will reduce output current to prevent from superheated with help of decision circuit.if the temperature is still overtop,the controller will stop output and protect motor and motor controller.

Parameters

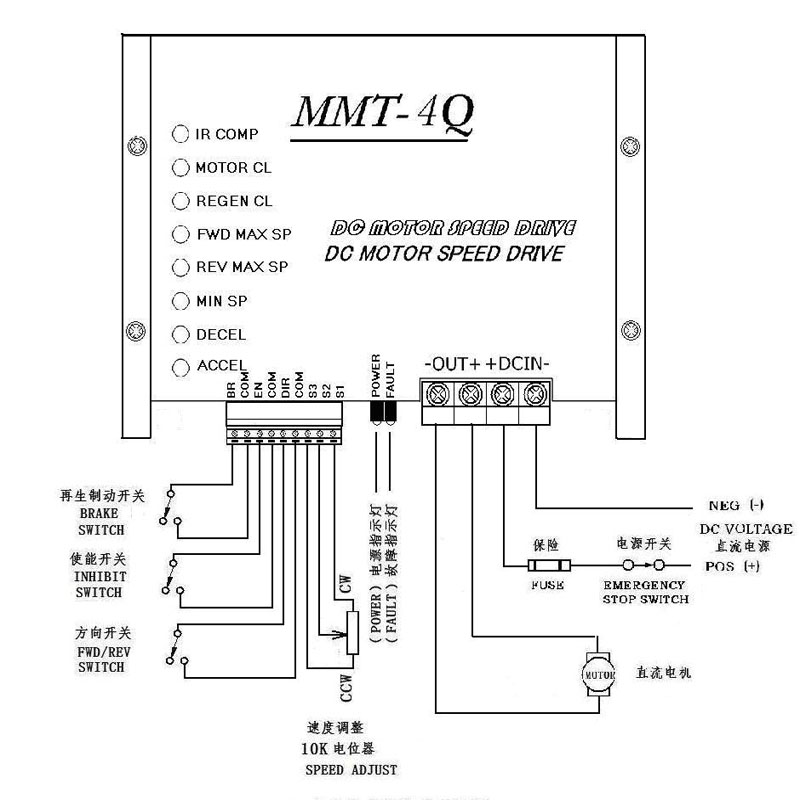

Drawing
