X39G nuc mini pc

The fuselage of this industrial computer adopts aluminum alloy sealing process, which is dust-proof, moisture-proof, compression resistant and a nti-interference easily deal with all kinds of industrial harsh places. As a enbedded industrial mini pc, it with fanless cooling system, no noise, can be work 24 hours per day. This dual lan mini pc compatition windows7/8/10, linux, ubuntu, centos, ect, not only can use in industrial, and it can be as a mini desktop pc replace the odinary computer for home, office, education, students, ect.

Product Details

CUP: Intel Celeron J1900 Processor,2M Cache, up to 2.42 GHz, 4 Core 4 threads

        Intel Core I3-6157U Processor 3M Cache, up to 2.42 GHz, 2 Core 4 threads

GPU: J1900: Intel HD Graphics; I3-6157: Intel Iris Graphics 550

VGA: Maximum resolution 1920*1080@60Hz

HDMI: Maximum resolution 1920*1080@24Hz

Dual display: VGA + HDMI,Support for Synchronous or Asynchronous Display

Memory: DDR3L 1333/1600MHz 1.35V, 1*204-pim SO-DIMM, Maximum capacity: 8G

Hard Disk: SSD:1*Full Height mSATA, HDD:1*SATA

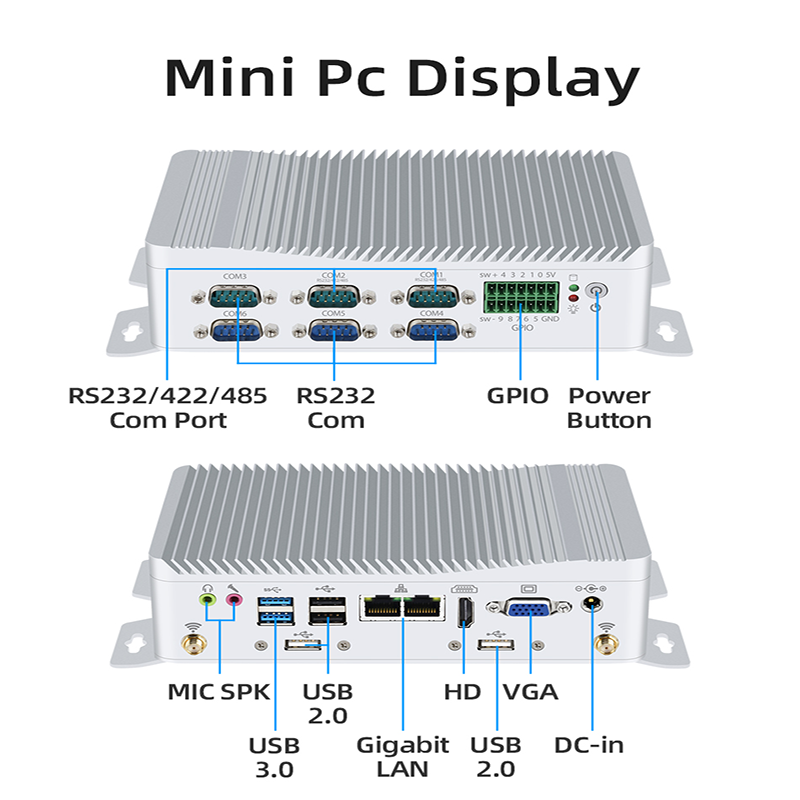

Port: 7xUSB2.0, 1xUSB3.0, 1xSPK, 1xMIC, 2xLAN, 6xRS232 (4xRS485, 2xRS485) COM, 1xHDMI, 1xVGA, 1x Switch

Audio: Main system:Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out

Extension: 2× Mini PCIE,1 for WIFI,1 for 3G\4G module; 1× SIM card slot

Power Requirement: Power Type:DC-IN5.5*2.5, Power Input Vol:12V, Power Input Ampere:5A, Power Supply:DC 12V 5A

Working Environment: Operating Temperature -20-65℃, Storage Temperature 15℃-35℃, Relative Humidity 5%~95% (non-condensing)

This industrial mini pc with 6 RS323 COM port, is an easy connection between devices, such as industrial intruments, machine tools, acquisition card module, sensor/mouse, modulation, medical control equipment, receipt printer, pos machine, bar code sanner, access control system, ect.
