Product Information:

TX-SL12 Detail:

TX-SL12 automatic double-sided  paper cup making machine is a multi station automatic molding machine, it has automatic paper feeding, sealing (cup wall adhesion), filling, filling the bottom, heating, rolling flower, roll edge by continuous process and photoelectric detection, fault alarm, counting functions, it is the best equipment for producing paper drinking cups, tea cups, coffee cups, advertising cups,ice cream cups or other cone food containers.

TX-SL12 paper cup making machine is mainly used for the production of single or double PE coated paper cups (from 3 ounces to 12 ounces), wide application for supermarket, restaurant, office, home and so on, also can be used as  advertising paper cups.

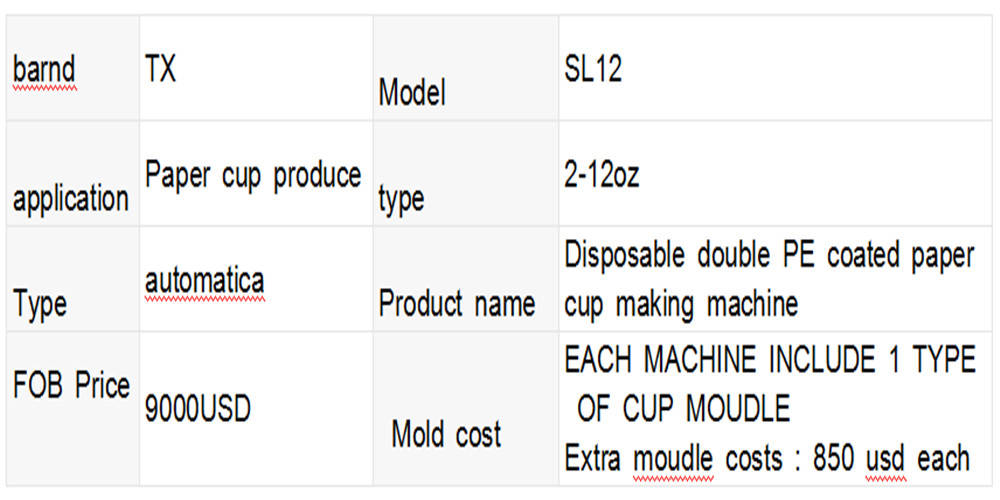

Main technical parameters

Paper cup specification : 2.5，3、4、5、7、8、9、12、(oz)

Material requirement :150-400g/m2  Single or double PE coated paper

Speed :55-60pcs/min

Voltage  :220V 50HZ or 380V 50HZ

Power :4kw

Machine Weight :1350kg

Machine size : 2555*1250*1680mm

Machine Advantage:  frame is an inclined frame, cup dropping rate 99.99%, this machine use gear instead of chain, so that improve transmission stability, Make up the chain drive congenitally deficient, Greatly enhance the power of the machine .

Durable, good maintenance etc.. The biggest advantage is that mould plate, nylon wheel, chassis are all made by aluminum materials, it is light with high cost. Good anti turntable inertia with long life.

It more durable according to other iron machine .
