GLTV4 OEM 700mm Mechanical water and fuel tank level gauge
Description
GLTV4 mechanical fuel level gauge integrates liquid level detection and display (without any external device), which can display liquid level directly and is easy to install. It is widely used in gasoline tank, diesel tank, hydraulic station and water tank of all kinds of generators and engines.
- Aluminium Alloy type;
- The mechanical fuel level indicator integrates the function of level measuring and level;
- display without power supply;
- high and low alarm function can be added to the gauge according to customer requirements.
- Plastic type: This gauge largely applies to fuel tanks of generators and engines;
- it also applies to water tanks; not recommended for vehicle
Specifications
Operating temperature |
-45-80℃ |
Integrated precision |
5% |
Main material |
Aluminum alloy |
Threading types
|
M45*2 or BSP 1 1/2(Aluminum alloy) M57* 5 (Plastic) |
Flange(Optional) |
Standard 6-hole,welding flange |
Screwing torque |
300-400N.m |
Length range
|
120-700mm(Aluminum alloy) 100-600mm(Plastic) |
Alarm switch |
Optional high or low level alarm switch can be set at 9/10 or 1/10level. Alarm current is <500mA. The alarm point can be set at the level of 9/10 and 1/10. |
Signal output(Optional) |
0~190Ω 240~33Ω |
Dimension
Attachment
NOTES:
* Threading types: M45*2 OR BPS1 1/2
* If there is no threading on tank, then a matched flange can be applied
* The standard 6 holes flange (locked by screws)
* The welding flange (weld onto the tank)
Appendix of flange
Company Information
Packaging & Shipping
Our Services
- Service standards: we are committed to provide a high quality and responsive service to all clients
- The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
- Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
- Door to door service: We usually send the parcel by DHL, EMS and TNT etc.
- OEM available
What problems you are interested in?
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: application, measurement range, output,and other related parameters.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Escrow, Western Union, Paypal, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients
6. Do you have any certification?
Yes, according to the different products, overpass CE, RoHS, ISO, Ex,Ul etc
Similar Video Recommendation
You May Also Like
If you are interested in the product, contact Bossgoovideo.com for more information
- *To:
- Xi'an Gavin Electronic Technology Co., Ltd
- *Message:
-
Submit

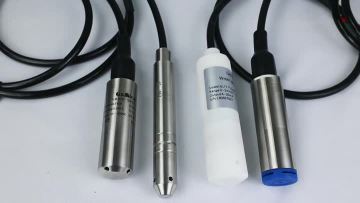

Main Product: pressure sensor, pressure transmitter, water level sensor, fuel level sensor, ultrasonic level sensor, water level meter
