Product details

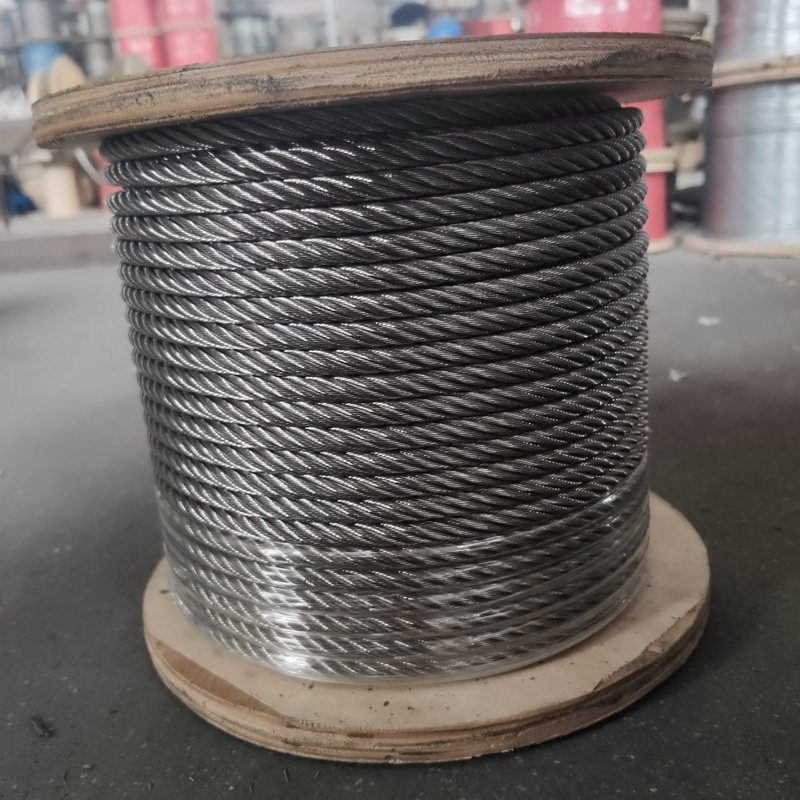

Stainless steel wire rope

Aisi316 or Aisi304 7X19 Dia.0.8mm to 32mm Stainless steel wire rope , closed with 7 strands and 19 stainless steel wires each strand The tesiles strength is 1570N/mm2, the steel wire rope use for safty protecting faclities , Automobile , Building industry , Lifting systerm and so on.

Material Grade : 316 , 304 ( 1.4401 , 1.4301 )

Construction : 7X19 ( 6X19+IWS )

Construction	Diameter	Approx.Weight	Min.Breaking Load
Construction	（mm）	（kg/100m）	1570N/mm²	1770N/mm²
7X19	1.5	0.92	1.26	1.43
	1.8	1.32	1.82	2.05
	2.0	1.63	2.27	2.56
	2.2	1.98	2.72	3.06
	2.5	2.55	3.55	4.00
	3.0	3.68	5.12	5.77
	4.0	6.53	9.09	10.25
	5.0	10.21	14.21	16.02
	6.0	14.70	20.50	23.10
	8.0	26.14	36.40	41.00
	10.0	40.84	56.80	64.10
	12.0	58.81	81.80	92.30
	14.0	80.05	111.40	125.60
	16.0	104.55	145.50	164.00
	18.0	132.32	181.70	-
	20.0	163.36	224.40	-
	22.0	197.67	271.50	-
	24.0	235.24	323.00	-
	26.0	276.08	378.00	-
	28.0	320.19	439.80	-

Standard : EN12385-4 or DIN3060

Packing Term :　Plastic Spool , Wood reel or Coil

Length : 50m, 100m , 500m , 1000m, 2000m , 5000m
