YZPST-MCO150-16I01

160A 1600V

Thyristor  Module

RoHS  Compliant

YZPST-MCO150-16I01

PRODUCT FEATURES

      Base plate: Copper

      Glass passivation thyristor chips

      Low Leakage Current

      Internally DBC isolated

      Advanced power cycling

APPLICATIONS

      Softstart AC motor control

      Temperature control

      AC power control

      Lighting and temperature control

ABSOLUTE MAXIMUM RATINGS(T C =25°C unless otherwise specified)

Symbol	Parameter	Test Conditions	Values	Unit
VRRM	Maximum Repetitive Reverse Voltage	Tvj=125℃	1600	V
VDRM	Maximum repetitive peak off-state voltage
VRSM	Non-Repetitive Reverse Voltage	Tvj=125℃	1700	V
VDSM	Non-repetitive peak off-state voltage
IRRM	Maximum Repetitive Reverse Current	Tvj=125℃	8	A
IDRM	Maximum repetitive peak off-state Current
IT(AV)	Mean On-state Current	TC=85℃	160
IT(RMS)	RMS Current	TC=85℃, sin180°	251	A
ITSM	Non Repetitive Surge Peak On-state Current	10ms, Tj=25℃	2300
I2t	For Fusing	10ms, Tj=25℃	125	A2S
VTM	Peak on-state voltage	ITM=160A	1.4	V
		ITM=480A	1.8
dv/dt	critical rate of rise of off-state voltage	VD =2/3VDRM   Gate Open Tj=125℃	1000	V/us
IGT	gate trigger current     max.		100	A
VGT	gate trigger voltage     max.		1.3	V
IH	gate trigger current		220	A
IL	latching current		350	A
Viso	AC   50Hz   RMS    1min		2500	V
TJ	Junction Temperature		-40 to +125	℃
TSTG	Storage Temperature Range		-40 to +125
RthJC	Junction to Case Thermal Resistance(Per thyristor chip )		0. 13	℃ /W
mounting torque	Module to Sink		1. 1-1.5	Nm
	Terminal		1. 1-1.5

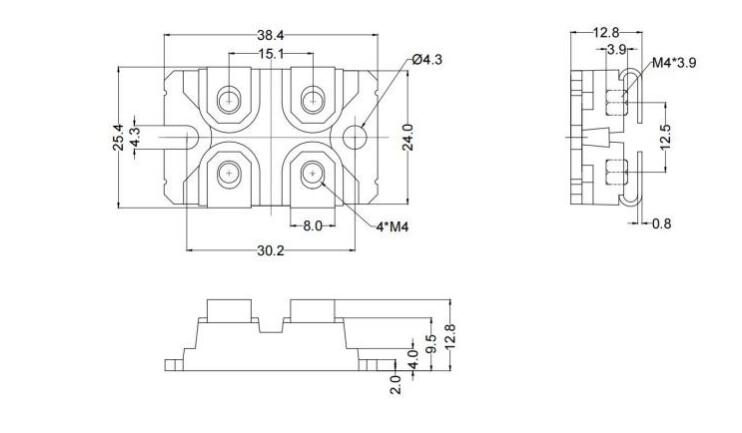

Outlines
