PC rod 2022
3 year ago

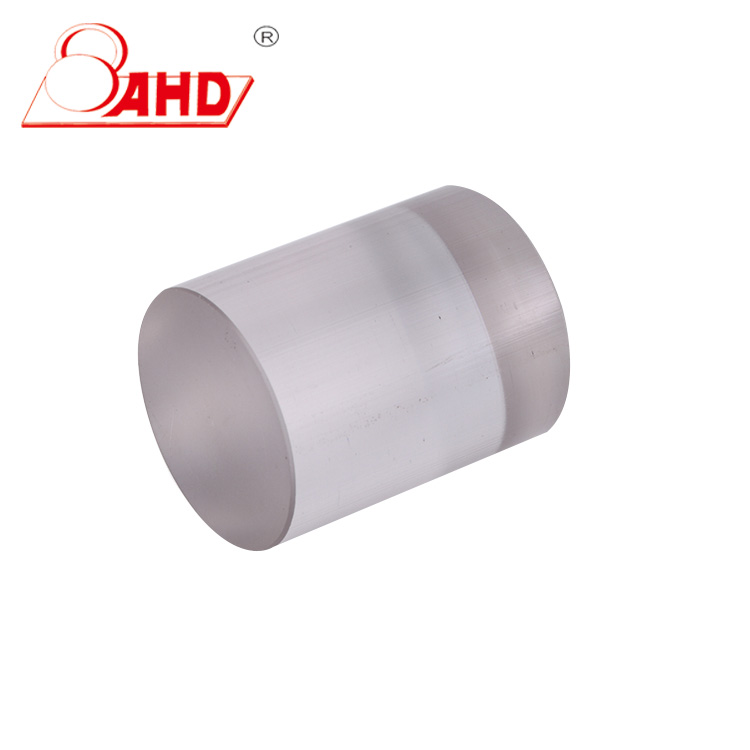

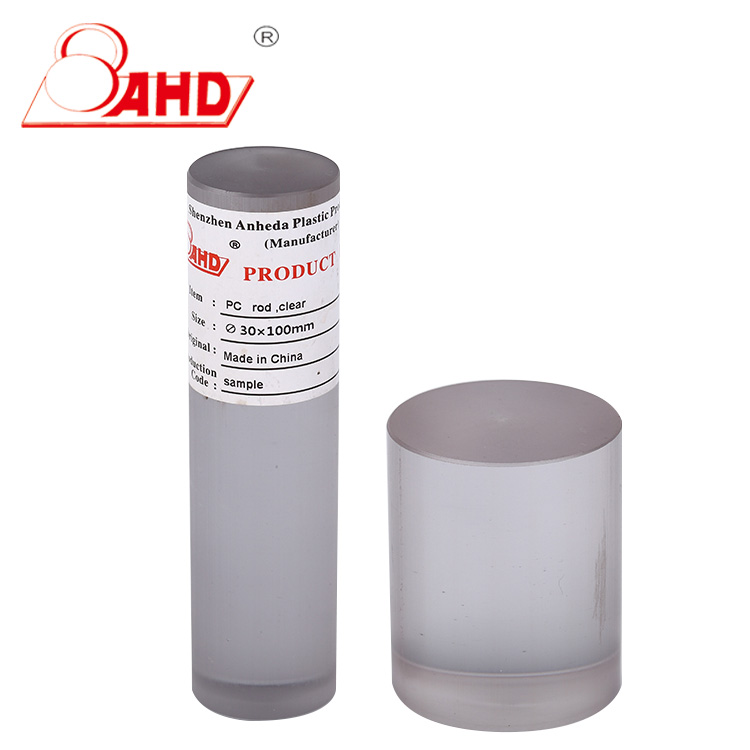

PC( Polycarbonate) Rod , density 1.2 g/cm3 , extrusion. The full name of PC is Polycarbonate,It is environmental protected and energy saving,is wildly used in engineering plastic material.As PC has many good characteristics,you can see products that made from PC everywhere,and also because of its excellent transparency,it earns the good name of "the King of clear plastics".
Main Properties:
- light weight
- high heat insulation
- Good light transmission
- very high impact strength
- Simply processed and installed
- good weather resistance and UV protection
Application:
• Poster protection
• Displays
• Machine Guards
• Price tag holders
• Dispensers
• Shelf Dividers
• Poster Protections
• Flat or thermoformed machine guards
• Transparent Covers
• Lids & trays
• Containers for food contact & pharmaceutical applications
• Components for toys & games
• Cycle helmets
• Greenhouse glazing
• Alternative to glass
Specification:
| Item name | PC ( Polycarbonate) Rod |
| Type: | extruded |
| Diameter: | Ø15---300mm |
| Length: | 1000mm |
| Density: | 1.2 g/cm³ |
| Color: | Translucent, |
| Brand name: | AHD |
| Material: | 100% virgin material |
| Sample: | FREE |
| Acid resistance: | YES |
| Food Contact | YES |
Physical Datasheet:
| Item | PC ( Polycarbonate) sheet |
| Type | extruded |
| Thickness | 1---200mm |
| Size | (610-1220)x(1000-2440)mm |
| Color | Transparency / Black |
| Proportion | 1.2g/cm³ |
| Heat resistance (continuous) | 125℃ |
| Heat resistance (short-term) | 135℃ |
| Melting point | _ |
| Glass transition temperature | 150℃ |
|
Linear thermal expansion coefficient (average 23~100℃) |
65×10-6m/(m.k) |
| Average 23--150℃ | 65×10-6m/(m.k) |
| Flammability(UI94) | HB |
| Tensile modulus of elasticity | 2400MPa |
| Dipping into water at 23℃ for 24h | 0.13 |
| Dipping into water at 23℃ | 0.35 |
| Bending tensile stress/ Tensile stress off shock | 70/- Mpa |
| Breaking tensile strain | >50% |
| Compressive stress of normal strain-1%/2% | 18/35 MPa |
| Pendulum gap impact test | 9 KJ/m2 |
| Friction coefficient | 0.55 |
| Rockwell hardness | M75 |
| Dielectric strength | 28 kv/mm |
| Volume resistance | ≥10 15Ω×cm |
| Surface resistance | ≥10 15Ω |
| Relative dielectric constant-100HZ/1MHz | 3/3 |
| Critical tracking index(CTI) | 600 |
| Bonding capacity | + |
| Food contact | + |
| Acid resistance | + |
| Alkali resistance | - |
| Carbonated water resistance | 0 |
| Aromatic compound resistance | - |
| Ketone resistance | - |
Exhibition:
As the most representative exhibitor, the Anheda Group is invited to participate in national and international exhibitions every year. At the same time, it has attracted extensive attention from customers all over the world, making the anheda group more famous, spreading farther and more influential.
Why choose us
1.Established in 1994, more than 26+ years.
2.more than 250 plastic production of mported manufacturing equipments
3.square meters overs an area of 25000 square mater
4.more than 8 Sales network, such as shenzhen, Fozhou, Zhnongshan, Shanghai, Suzhou, Kunshan, Xiamen, Chongqing etc.
5.Sales coverage cover more than 30 countries and regions.For example Germany, Russia,Spain,Canada ,United States, India, Hongkong, Taiwan, Korea, Singapore, Southeast Asia, etc.
6.Cooperate with leading raw material manufacturer
7.High grade , high quality , 100% virgin material
8.Package and delivery by international standard pallet
9. Products ranges: HDPE sheet and rod, PA6 sheet, PP rod and sheet, PU rod and sheet, POM rod and sheet, ABS sheet, PEI sheet etc.
