intercom multi apartment
4 year ago
The outdoor station is an IP system, which is connected to the switch through a network cable, and the indoor unit supports the POE switch for power supply. The entire wiring diagram is very simple and easy to install. Each outdoor station has wall brackets.
| Specifications | |
| Model | MK- AZZJ4C (Multi-apartments) |
| Operating system | Android 5.1.1 |
| Screen Display | 4.3 inch screen, 800*1280 px |
| Camera | 200W(1080P) |
| CPU | ARM Cortex-A53SMP4 |
| Memory | LPDDR3 1GB |
| Storage | EMMC 8GB (standard) expandable |
| Color | Silver/Champagne |
| Card Type | IC Card，M1，S50，13.56MHZ |
| Operation | Capacitive full touch screen |
| Communication | RJ45-TCP/IP |
| Power consumption | static less than 7W; Dynamic is less than 12W. |
| Power supply | DC18V-3A |
| Working environment | -20℃~70℃ |
| Working humidity | 10%~70% |
| Protection grade | IP33 |
| Unlock ways | RFID Card/Password/Face recognition/Mobile phone remote |
| Face recognition | Recognition distance ≥1M; Storage capacity 50,000; Recognition rate 0.5 seconds; Recognition rate. 99.98% |
| TUYA Function | snapshot/intercom/video record/ doorbell door unlock/record/monitoring/channel switching |

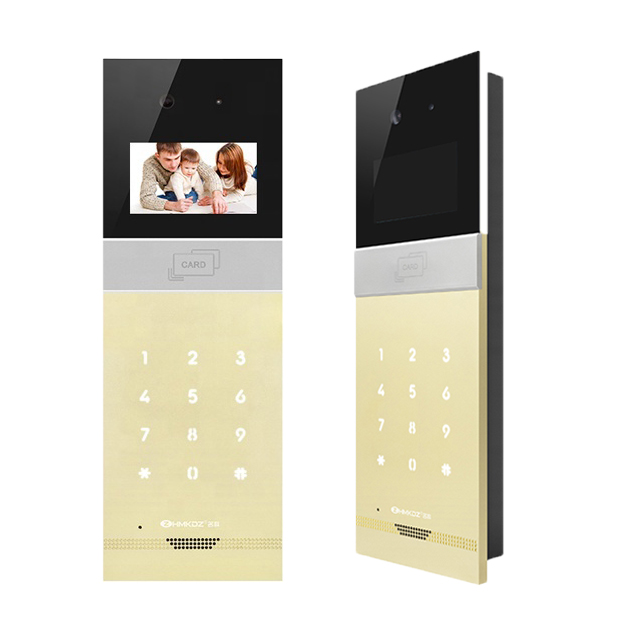

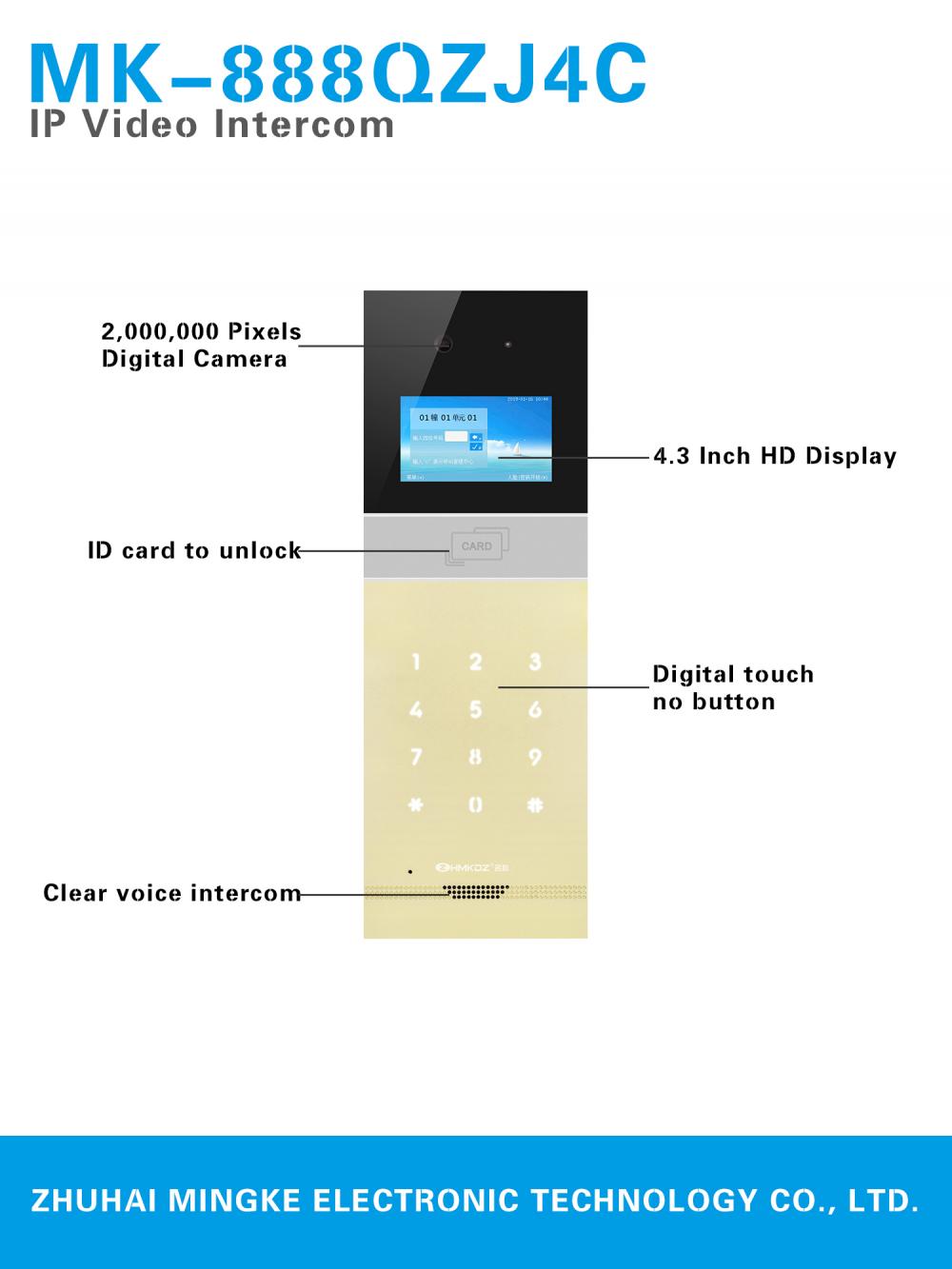

Outdoor Station
- Calling ,intercom, unlocking, monitoring
- Aluminium alloy panel with Physical Button
- Ethernet RJ45 connector
- 4.3 inch 720 HD display Night vision
- Card/passwor/indoor unlocking
- Code access for option
- Full Digital TCP/IP intercom
- Support IC Card Unlock
- Elevator linkage function
- Android System
- Dimension:400*140*51(mm)
- Install Method : Wall/Flush Install
Indoor Monitor
- With 7 inch Monitor
- Calling, intercom, unlocking, monitoring
- High quality screen with touch screen
- Night vision, LINUX System
- Ethernet RJ45 connector
- Full Digital TCP/IP intercom
- Check the log
- Call the elevator
- Eight defense zones
- Support POE :24V non-standard POE switch
- Install Method : Wall/magnetic hanging Install
Wiring Diagram
