200EKH-PET-perform-Lebanon

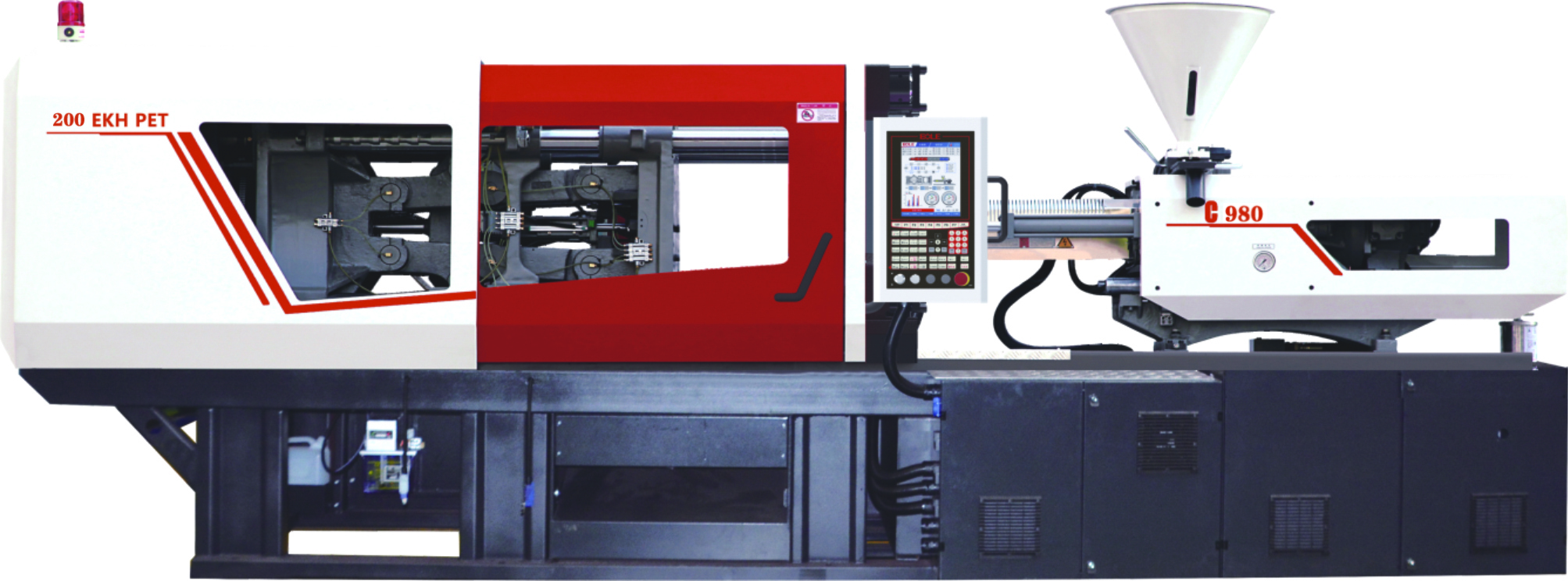

200 ton PET inject mold machine

1. Bole Product Description

2. Product Instructions

EKH系列PET瓶胚专用机技术参数表		UNIT	BL200EKH/C980/PET
国际标准规格	International specification		980
螺杆直径	Screw diameter	Screw specification	Special for PET
		mm	50
螺杆长径比	Screw L/D ratio		25.0
理论注射容积	Theoretical injection capacity	cm3	530
注射量 (以PS计)	Shot weight(PET)	g	609
		oz	21.5
最大对空注射速率	Injection rate into Air	cm^3/s	247
最大对空注射速率		g/S	225
注射压力	Injection pressure	MPa	186
理论塑化速度	Theoretical plasticizing speed	g/S (PET)	35
注射行程	Injection stroke	mm	270
最大注射速度	Max. injection speed	mm/s	126
最大螺杆转速	Screw speed	r/min	221
系统压力	Sys. Pressure	MPa	17.5
电机总功率	Pump Motor(Min～Max)	kW	20.5～27.8
电机数量	number of Motors	PC	1
电热功率	Heater power	kW	15
温控区数	Number of temp. control zones		3+1
锁模力	Clamping force	kN	2000
开模行程	Opening stroke	mm	480
拉杆内间距	Space between tie bar	mm x mm	505×455
最小模具厚度(T型槽)	Min. mould height	mm	200（165）
最大模具厚度(T型槽)	Max. mould height	mm	530（530）
最大模板距离(T型槽)	Max. Daylight	mm	1010（1010）
顶出行程	Ejector stroke	mm	150
顶出力	Ejector force forward	kN	67
顶针回缩力	Ejector force back	kN	39
顶出杆数	Number of ejector bar	PC	5
干循环时间	Dry cycle time	S	2.5
能耗（注1）	Energy consumption level	kW.h/kg	≤0.5
料斗容积	Hopper capacity	kg	25
油箱容量	Oil tank capacity	L	230
机械外形尺寸(约)	Machine dimensions(L×W×H)	m x m x m	5.1x1.4x2.2
机器重量(约）	Machine weight	Ton	5.5

3. Clients Cases

4. About Bole Machinery

Bole Machinery is more and more popular among domestic and foreign powerful companies due to the advantages, there is strategy cooperation partner relationship with Gree Group. Bole Machinery has become the preferred brand in Chinese house- hold electrical appliances industry, and automotive industry as well. It is successfully accepted in the markets of USA, South Korea and European countries with the high sale growth under the situation of recession strike in the global markets.
