Modular digital clamp-on flowmeter and clamp-on ultrasonic flow meter for flowmeter clamp on1
2 year ago
The ultrasonic flowmeter adopts a non-contact measurement method, which is accurate and reliable. It can be continuously measured for a long time.
Product details

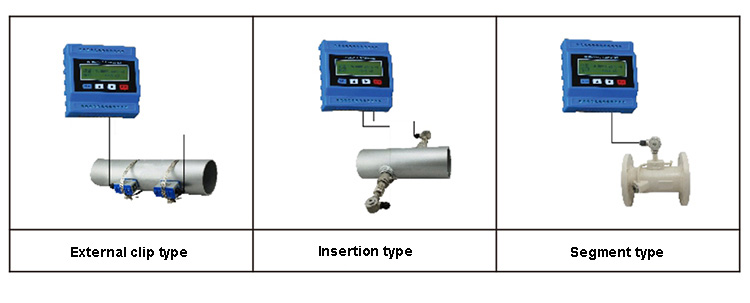

I. Overview
Ultrasonic flowmeter is a combination of flow measurement technology and low-cost toilet, which can be directly installed at the measuring point. The flow of the ultrasonic flowmeter has no moving parts and needs no daily maintenance. The microprocessor on the instrument provides accurate digital signal coding and cross-correlation detection procedures, which can provide long-term drift-free measurement. The measurable fluid is almost all clean and uniform liquid.
2. Application
(1). Drinking water, River water, sea water, groundwater, cooling water, high temperature water and sewage;
(2). Lubricating oil, diesel oil and fuel oil;
(3). Chemical liquids;
(4). Other homogeneous fluids.
3. Characteristics
(1). Various power supply modes: a single 3.6V lithium battery can work for 6 years, using two-wire system of 4-20mA, RS232, RS485 output type, and can work normally without batteries;
(2). The measurement content is rich: it can display accumulative flow, accumulative heat, instantaneous flow, instantaneous heat, supply and return water temperature, current temperature difference, fault operation time, working state, date, time, etc.
(3). High level of protection: protection level can reach IP68, can be immersed in underwater 2 meters work;
(4). Structural firmness: The measuring pipe section adopts precision casting technology, no leakage, no pressure loss and movable parts, 10 years maintenance-free design.
(5). Humanized design: magnetic rod operation, internal double keys, easy to operate; fault self-diagnosis.
(6). Ordinary metal pipes such as carbon steel, stainless steel, cast iron, copper, aluminium, etc.
(7). Other non-metallic pipelines such as PVC, PR, FRP, cement and other pipelines.
|
ITEM |
Description |
|
|
Main unit |
Accuracy |
Better than ±1% |
|
Repeatability |
Better than 0.2% |
|
|
Measurement Period |
500ms |
|
|
Display |
LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc. |
|
|
Output |
Analogue output: 4-20mA or 0-20mA current output. Impedance 0~1kW. Accuracy 0.1%. |
|
|
OCT output: Frequency signal (1~9999HZ) |
||
|
Relay output: over 20 source signal (no signal, reverse flow etc.) |
||
|
RS485 serial port |
||
|
Input |
Three analogue input |
|
|

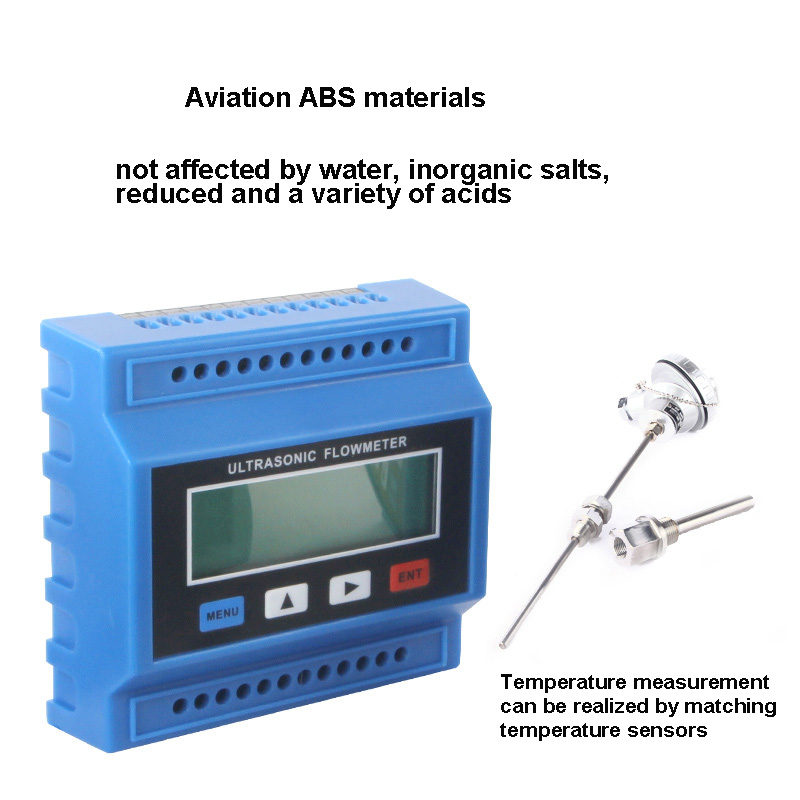

Three-wire PT100 resistor input (optional) |
||
|
Other functions |
Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days |
|
|
pipe |
material |
Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed |
|
Size |
15-6000mm |
|
|
Straight pipe section |
In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter) |
|
|
Liquid |
Types |
Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid |
|
Temperature |
Standard: -30℃ - 90℃ ,High-temperature:-30℃ - 160℃ |
|
|
Turbidity |
Less than 10000ppm, with a little bubble |
|
|
Flow Direction |
Bi-directional measuring, net flow/heat measuring |
|
|
Environment |
Temperature |
Main Unit: -30℃ - 80℃ |
|
Transducer: -40℃ -110℃, Temperature transducer: select on enquiry |
||
|
Humidity |
Main Unit: 85% RH |
|
|
Transducer: water-immersible, water depth less than 3m |
||
|
Cable |
Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m |
|
|
Power Supply |
DC24V or AC220v |
|
|
Power Consumption |
Less than 1.5W |
|
|
Protocols |
MODBUS, M-BUS, Fuji extended protocol and other factory protocol |
|
