Product details

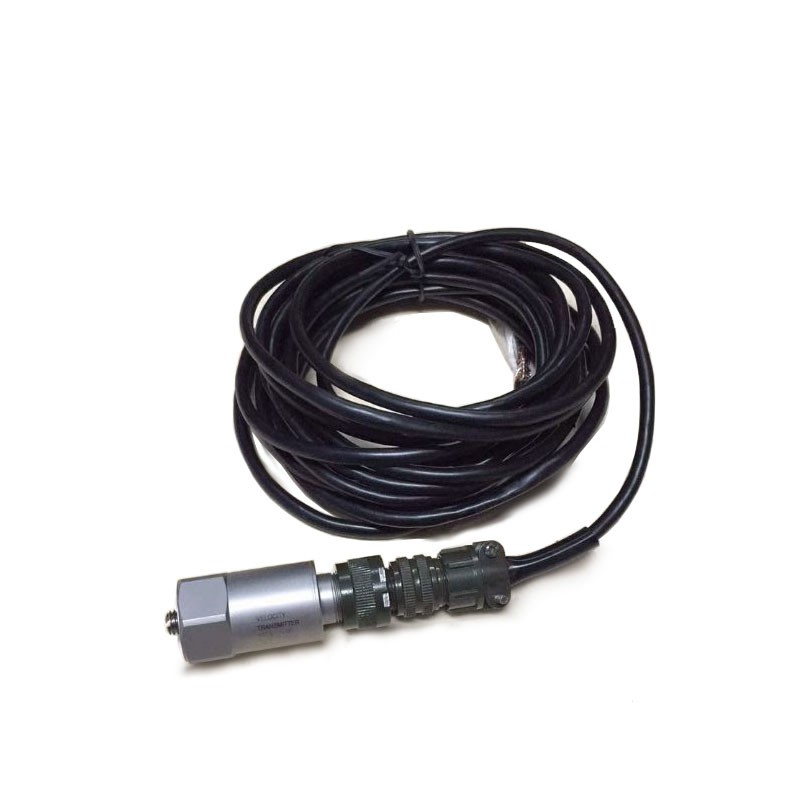

IEPE accelerometer consist of an instrumentation amplifier and a constant current source. The current source pumps current into the accelerometer. The circuitry inside of the accelerometer makes it behave like a resistor. The amount of physical phenomena (i.e. acceleration) the transducer is experiencing creates a proportional amount of resistance. Therefore, the returning signal is a voltage proportional to the phenomena. The amplifier allows you to set the input range to take maximum advantage of the incoming signal.

SPECIFICATIONS
Sensitivity	10.2mV/m/s2 (100mV / g) ± 12%, at 80Hz
Frequency response	10 to 1kHz ± 10%; reference to 80Hz
Acceleration range	245m/s2 (25g) peak, at +25 ℃ when used in the entire temperature range of 176m/s2 (18g) peak
Amplitude Linearity	In 9.8m/s2 to 98m/s2 (1g to 10g) peak Within the range of 2%
Transverse sensitivity	At 80Hz is less than 5% of sensitivity
Mounted resonant frequency	Greater than 5kHz
Polarity	When the direction of movement from the mounting stud to the top connector, the output signal is positive
Broadband Electrical Noise	Less than 0.147m/s2 (0.015g) rms
Electrical Isolation (Pin to Case)	600Vrms
Mounting Torque	2.8N • m (25in-lb)
Weight	71g (2.5oz)
Housing Material	All housing materials are 316 series stainless steel

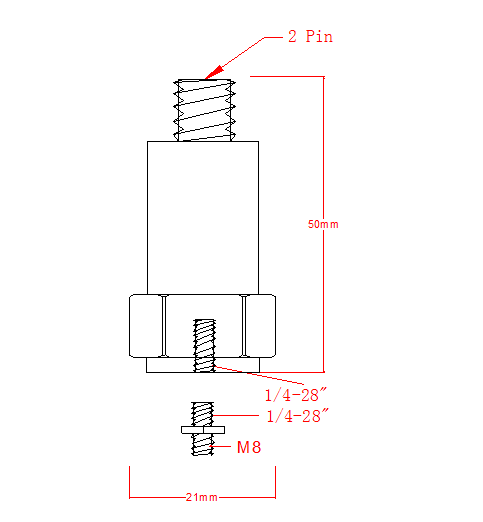

Electric connector	2-pin Mil-C-5015
Operating and Storage Temperature	-40 ℃ to +85 ℃
Relative humidity	100% relative humidity, non-flooding
Shock Survivability	When a fall from 3 feet to compete polyethylene based film covering on the floor, the sensitivity variation is less than 5%

Certifications

Our Company

Packing & Delivery

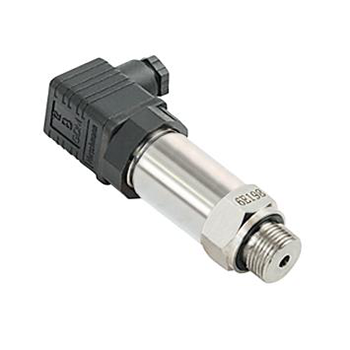

wide used 0-5V 4-20mA Universal Pressure Transmitter

cost-effective submersible and flange level transmitter for float level transmitter

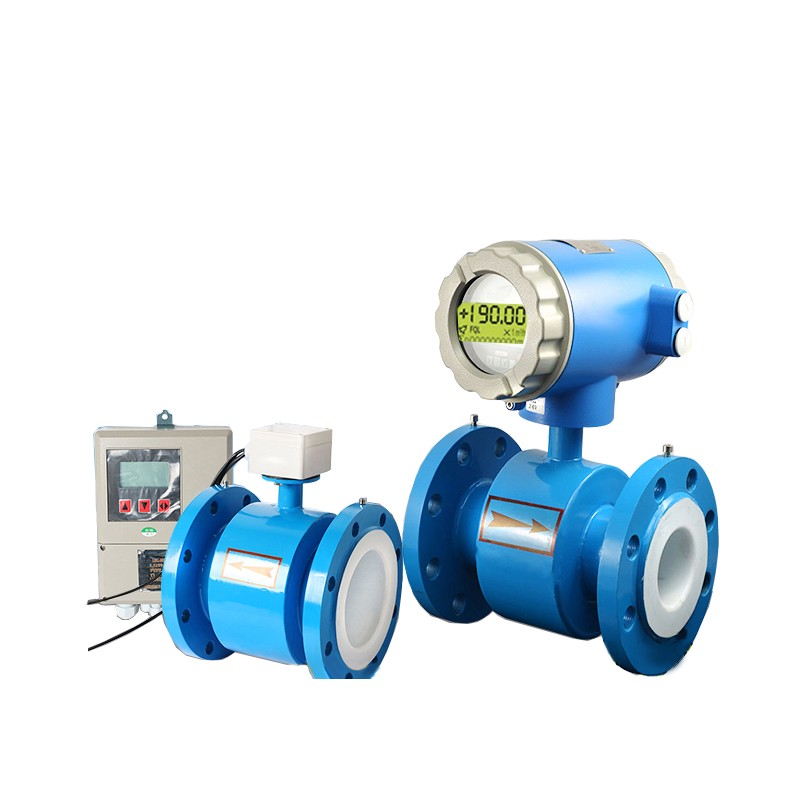

Electromagnetic flowmeter transmitter remote type converter
