YZPST-SP50N80FX
2 year ago

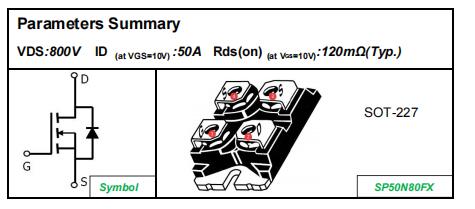

800V N-Channel Power MOSFET
YZPST-SP50N80FX
FEATURES
Fast switching
100% avalanche tested
Improved dv/dt capability
APPLICATIONS
Switch Mode Power Supply (SMPS)
Uninterruptible Power Supply (UPS)
Power Factor Correction (PFC)
|
Device Ordering Marking Packing Information |
|||
|
Ordering Number |
Package |
Marking |
Packing |
|
SP50N80FX |
SOT-227 |
SP50N80FX |
Tube |
|
Absolute Maximum Ratings TC = 25ºC, unless otherwise noted |
|||
|
Parameter |
Symbol |
Value |
Unit |
|
Drain-Source Voltage (VGS = 0V) |
VDSS |
800 |
V |
|
Continuous Drain Current |
ID |
50 |
A |
|
Pulsed Drain Current (note1) |
IDM |
200 |
A |
|
Gate-Source Voltage |
VGSS |
±30 |
V |
|
Single Pulse Avalanche Energy (note2) |
EAS |
4500 |
mJ |
|
Repetitive Avalanche Energy (note1) |
EAR |
60 |
mJ |
|
Power Dissipation (TC = 25ºC) |
PD |
690 |
W |
|
Operating Junction and Storage Temperature Range |
TJ, Tstg |
-55~+150 |
ºC |
|
Caution: Stresses greater than those listed in the “Absolute Maximum Ratings” may cause permanent damage to the device. |
|||
|
Thermal Resistance |
|||
|
Parameter |
Symbol |
Value |
Unit |
|
Thermal Resistance, Junction-to-Case |
RthJC |
0.18 |
ºC/W |
|
Thermal Resistance, Junction-to-Ambient |
RthJA |
40 |
|
|
Specifications TJ = 25ºC, unless otherwise noted |
||||||
|
Parameter |
Symbol |
Test Conditions |
Value |
Unit |
||
|
Min. |
Typ. |
Max. |
||||
|
Static |
||||||
|
Drain-Source Breakdown Voltage |
V(BR)DSS |
VGS = 0V, ID = 250µA |
800 |
-- |
-- |
V |
|
Zero Gate Voltage Drain Current |
IDSS |
VDS =800, VGS = 0V, TJ = 25ºC |
-- |
-- |
1.0 |
μA |
|
Gate-Source Leakage |
IGSS |
VGS = ±30V |
-- |
-- |
±100 |
nA |
|
Gate-Source Threshold Voltage |
VGS(th) |
IDS = 250µA |
2.5 |
-- |
4.5 |
V |
|
Drain-Source On-Resistance (Note3) |
RDS(on) |
VGS = 10V, ID = 25A |
-- |
120 |
130 |
mΩ |
|
Dynamic |
||||||
|
Input Capacitance |
Ciss |
VGS = 0V, VDS = 25V, f = 1.0MHz |
-- |
14600 |
-- |
pF |
|
Output Capacitance |
Coss |
-- |
1300 |
-- |
||
|
Reverse Transfer Capacitance |
Crss |
-- |
66 |
-- |
||
|
Total Gate Charge |
Qg |
VDD =400V, ID =50A, VGS = 10V |
-- |
360 |
-- |
nC |
|
Gate-Source Charge |
Qgs |
-- |
80 |
-- |
||
|
Gate-Drain Charge |
Qgd |
-- |
120 |
-- |
||
|
Turn-on Delay Time |
td(on) |
VDD = 400V, ID =50A, RG = 10 Ω |
-- |
110 |
-- |
ns |
|
Turn-on Rise Time |
tr |
-- |
200 |
-- |
||
|
Turn-off Delay Time |
td(off) |
-- |
160 |
-- |
||
|
Turn-off Fall Time |
tf |
-- |
185 |
-- |
||
|
Drain-Source Body Diode Characteristics |
||||||
|
Continuous Body Diode Current |
IS |
TC = 25 ºC |
-- |
-- |
50 |
A |
|
Pulsed Diode Forward Current |
ISM |
-- |
-- |
400 |
||
|
Body Diode Voltage |
VSD |
TJ = 25ºC, ISD = 25A, VGS = 0V |
-- |
-- |
1.4 |
V |
|
Reverse Recovery Time |
trr |
VGS = 0V,IS = 50A, diF/dt =100A /μs |
-- |
520 |
-- |
ns |
|
Reverse Recovery Charge |
Qrr |
-- |
5.0 |
-- |
μC |
|
Notes
1. Repetitive Rating: Pulse width limited by maximum junction temperature
2. VDD = 50V, RG = 25 Ω, Starting TJ = 25 ºC
Pulse Test: Pulse width ≤ 300μs, Duty Cycle ≤ 1%
