Mini excavator XN20
3 year agoGeneral information :
Model :XN18 ;Machine weight :1700kgs ;Bucket capacity :0.045cbm
Engine :Japan Yanmar/Kubota
Swing boom for option
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench .
Advantages:
It is with YANMAR engine,good hydraulic system, pilot joystick, piston pump, plastic-sprayed ceiling,simple design, easy to maintain.
Optional Accessories:
It can be add much accessoies like Auger, Wood Grab, Rake, Ripper etc.. And we have exported a lot of countries like Australia, France, Italy, Turkey, Germany, Holland, US, Canada etc. Good quality with best factory price!

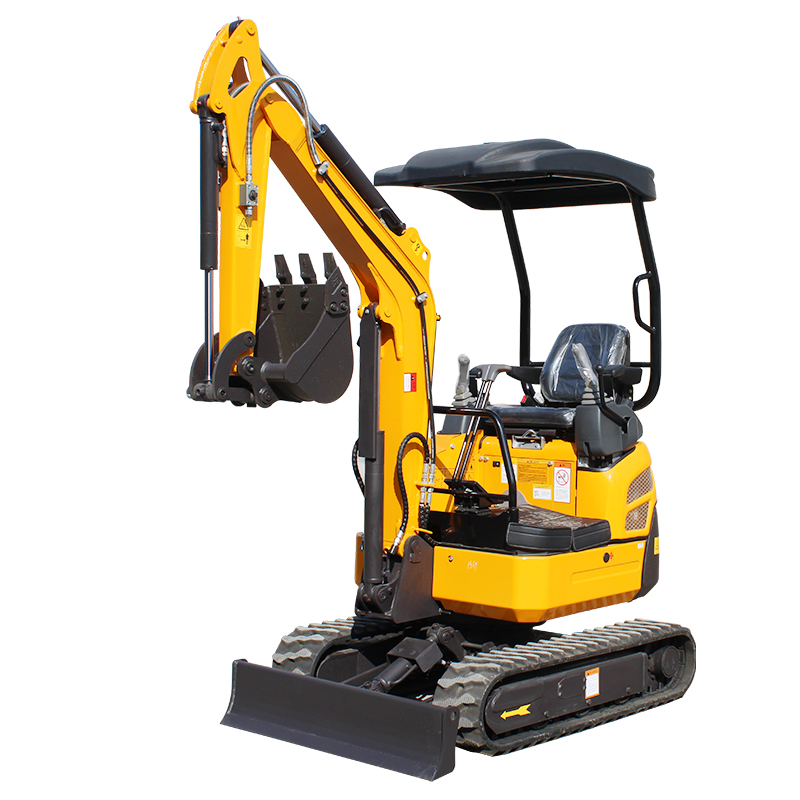

Mini excavator XN18 picture
Model
|
XN18
|
Brand
|
RHINOCEROS
|
Operating Weight
|
1700kg
|
Digging bucket capacity
|
0.045cbm/120kg
|
Digging bucket width
|
350mm, can add narrow bucket is 200mm
|
Engine
|
KUBOTA / YANMAR
|
Rated power
|
10.2kw/3600r/min
|
Displacement
|
6.8ml/r
|
Bore stroke
|
single cylinder, fan cool
|
Main pump
|
TAIFENG
|
Valve
|
TAIFENG
|
Swing motor
|
SJ-TECH (MP-1-160)
|
Traveling motor
|
KERSEN (OMS-2450)
|
MAIN DEMENSIONS
|
|
Overall dimension( LxWxH)
|
2770x896x1490 mm
|
Wheelbase
|
910 mm
|
Total length of track on land
|
1230mm
|
Platform ground clearance
|
380 mm
|
Platform back turning radius
|
784 mm
|
Chassis width
|
896 mm
|
Track width
|
180 mm
|
Chassis ground clearance
|
132 mm
|
Track height
|
320 mm
|
OPERATING RANGE
|
|
Max. Digging depth
|
2150 mm
|
Max. Vertical digging depth
|
1375 mm
|
Max. Digging height
|
2610 mm
|
Max. Dumping height
|
1850 mm
|
Max. Digging radius on ground
|
2850 mm
|
Min. Rotation radius
|
1330 mm
|
Max. Upgrade height of bulldozer blade
|
345 mm
|
Max. Digging depth of bulldozer blade
|
255 mm
|
Company information
Our company since 1995 year, have been exported to more than 50 countries . Such as Australia, Poland, Germany, Norway, Argentina, Malaysia, UK, Poland, Holland, Philippine etc. and sales are growing every year. We attend Canton Fair every year, and also attend Bauma Fair in ShangHai and Germany. we believe we will have a good cooperation with you.
We are searching out sellers agent international, our factory organisation produce the excavator ,mini dumper, skid steer loader. if you have excavator business or would like expand excavator as new business, please kindly contact us, we have the power and enjoy to make each of us with suitable profit.
