Universal Special Stringing Pulley Block
4 year ago
MARSHINE
5 year
Product details
Hook Type LV Cable Mounting Roller Uninsulated Conductors Stringing Pulley
Our MARSHINE is a manufacturing and trading company for electric power line installation tools. For 20 years, we have been providing cable mounting tools to electricians and linemen worldwide at the most competitive price. As this MARSHINE Hook Type LV Cable Mounting Roller Uninsulated Conductors Stringing Pulley, its a reliable cable mounting roller for LV cables, due to its galvanized steel durable frame, this roller can handle lot of tough works in the aerial or underground cable mounting operations.
The MARSHINE Uninsulated Conductors Stringing Pulley is a convenient yet practical tool to run low voltage cable or uninsulated conductors in overhead stringing. It’s hook-type suspension that can be easily fixed on cross-arm, pole or bracket, it is flexible to move. Its smooth sheave design provides for low-friction cable motion, which protects the conductor from being abraded and contributes to an efficient installation. It is invaluable for utility crews working LV distribution and aerial cable jobs.
Product Feature
Hook-Type Suspension Design
Features a robust hook (usually made out of aluminum alloy or stainless steel with optional locking mechanism) for quick and stable installation to poles, cross-arms, or overhead structures with more installation options.Smooth Rotating Sheave
The roller bearings supported sheave is precision machined to reduce friction, enabling the cables to run smoothly with minimal pulling force.Sheave Material
Sheaves are generally manufactured in nylon. That’s why this MARSHINE LV Cable Mounting Roller can provide weight handling, abrasion resistance and have a long service life.Galvanized Steel Frame
The frame is made of galvanized steel with rust prevention processing, which can be used outdoors or in the environment with humidity.Cable Sheath Protection Groove
This specially designed groove centers the conductor and protects the insulation or any bare conductor surface.Heavy Duty Load
Appropriate for normal load during stringing LV cable, to ensure you have steady and safe performance.Lightweight and Portable
Small size for convenient transport and easy mounting and repositioning during field work.Product Application
The applications of the MARSHINE LV Cable Stringing Pulley include:
Low-voltage overhead line construction
To guide insulated or bare conductors during the installation of LV distribution networks.
Aerial bundled cable (ABC) installation
Enabling easy unrolling of the cable and moving along the poles and walls.
Power Line and Utility Work
Making the line crew’s job easier by pulling conductors efficiently between spans.
Telecommunication and light cable laying
Allows the guide of telecommunication cables in aerial installation.
Upgrading and maintenance
Enabling safe removal or repositioning of existing conductors.

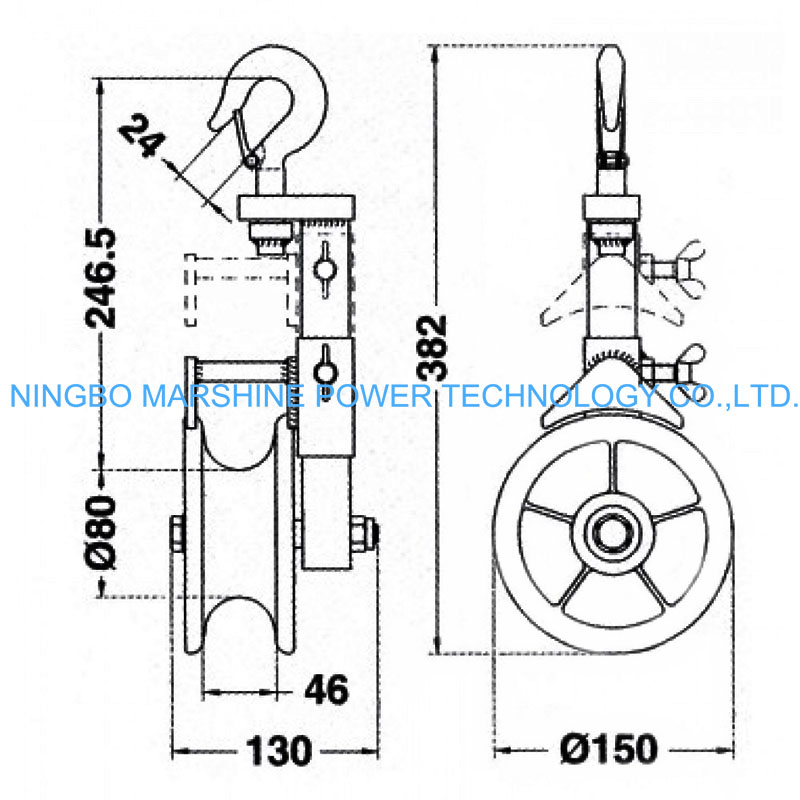

Technical Parameters
|
Model |
SHDN-026/1 |
|
Load capacity |
2 KN |
|
Breaking load |
10 KN |
|
Applicable cable diameter |
≤48 mm |
|
Roller material |
Nylon |
|
Frame material |
Galvanized steel |
|
Weight |
2.5 kg |
PRODUCT DISPLAY
