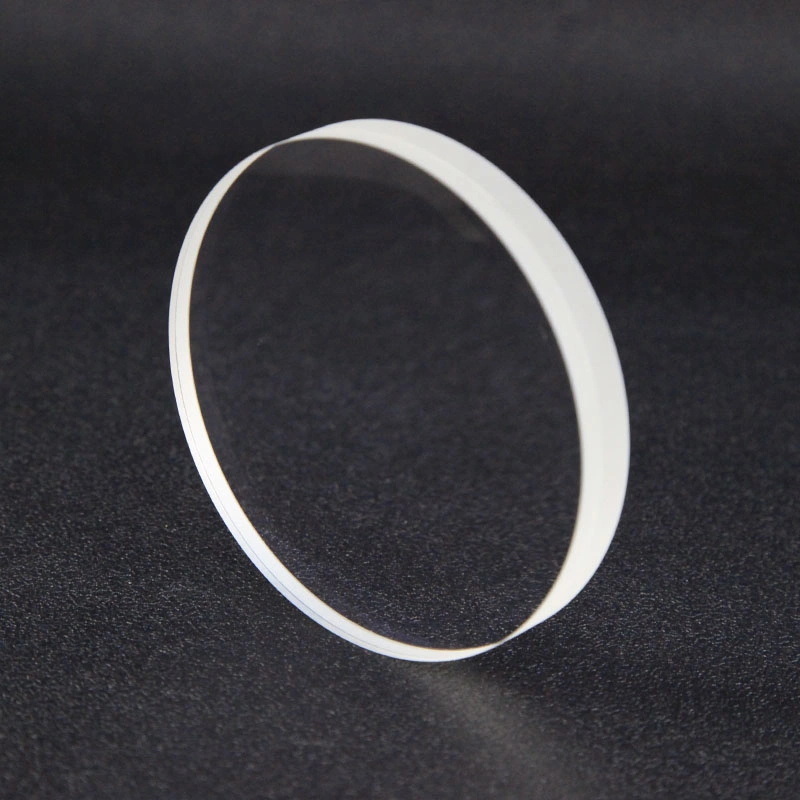

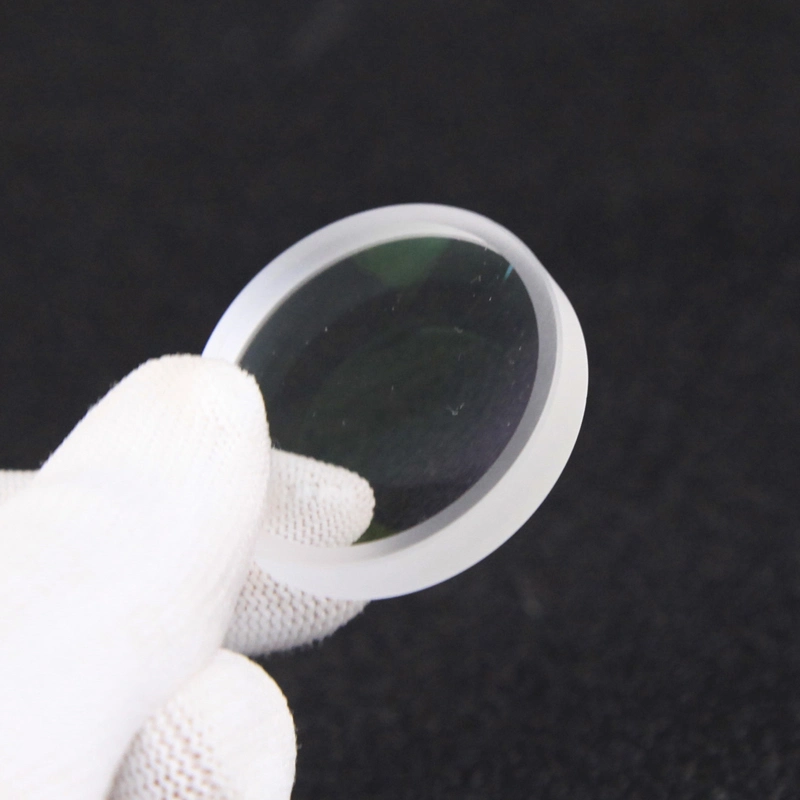

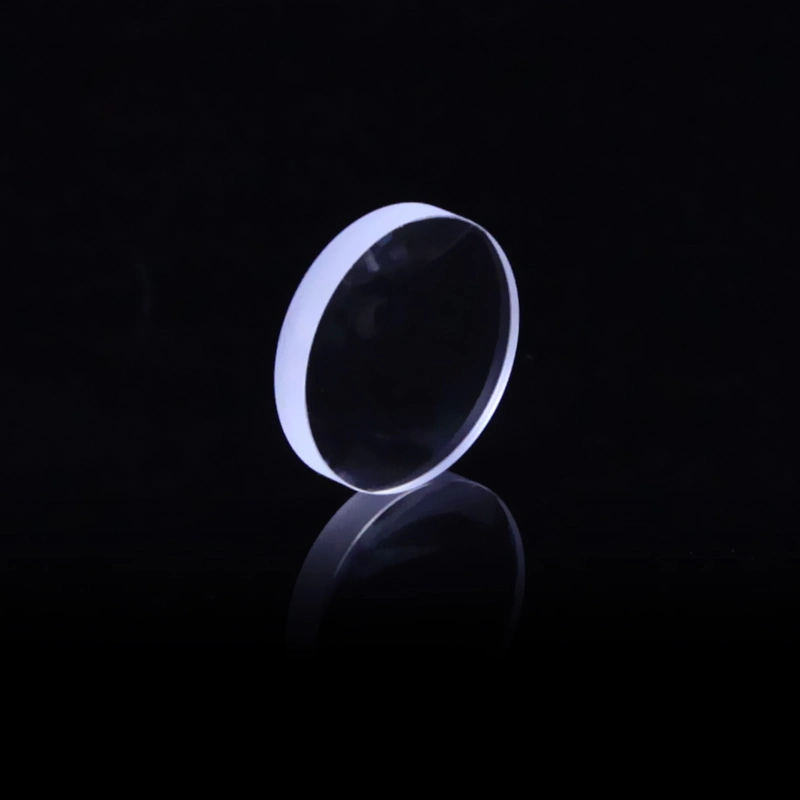

Fused Silica Spherical Optical Lens1
3 year ago
- Overview
- Product Description
- Product Parameters
- Coating as your quired
- Production Process

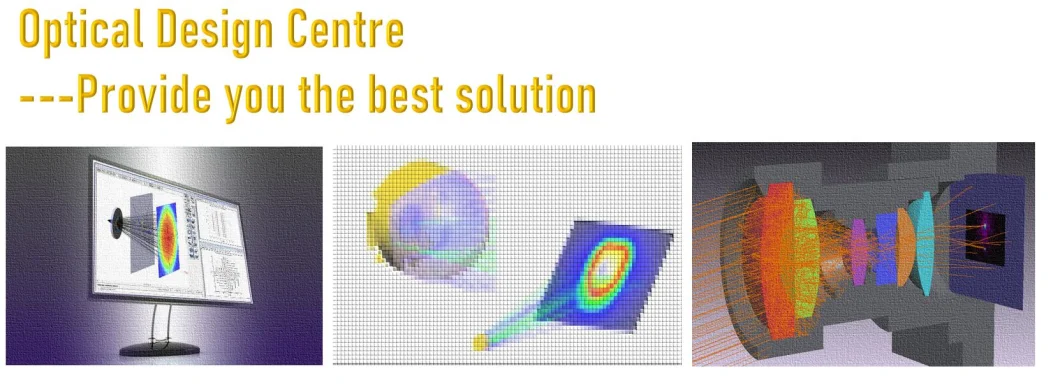

- Optical Design Center
- Packaging & Shipping
- FAQ
- Company Profile
Basic Info.
Product Description
| Place of Origin: | Jiangsu,China, 2 hours by car from Shanghai |
| Brand Name: | DG Optics |
| Material | optical glass, Si, Ge, CaF2 |

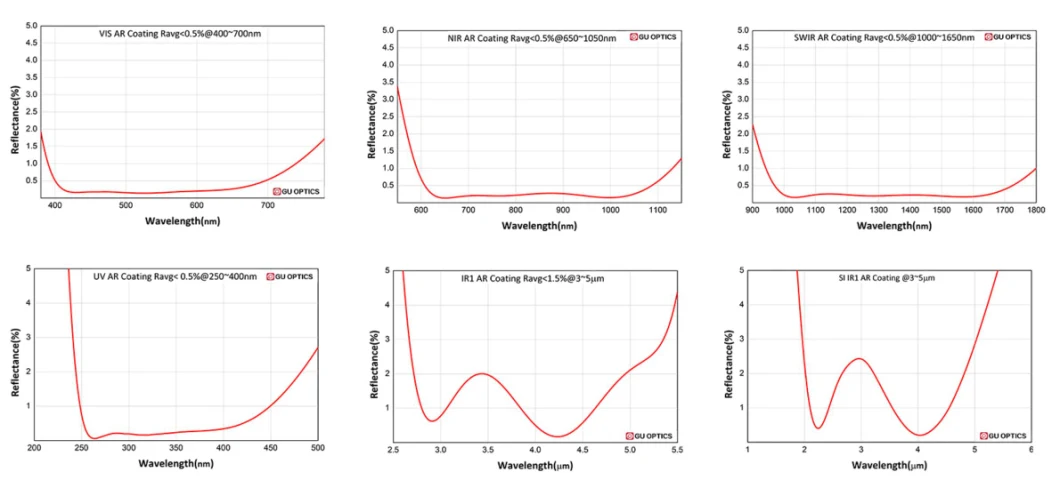

| Coating | UV, IR , SWIR, NIR ,VIS |
| Surface Quality: | 40/20, 60/40 |
| Optical Design | Available |
| Clear Aperture | Over 90% |
| Diameter | 0.5-600mm |
| Irregularity(P-V) | λ/4 |

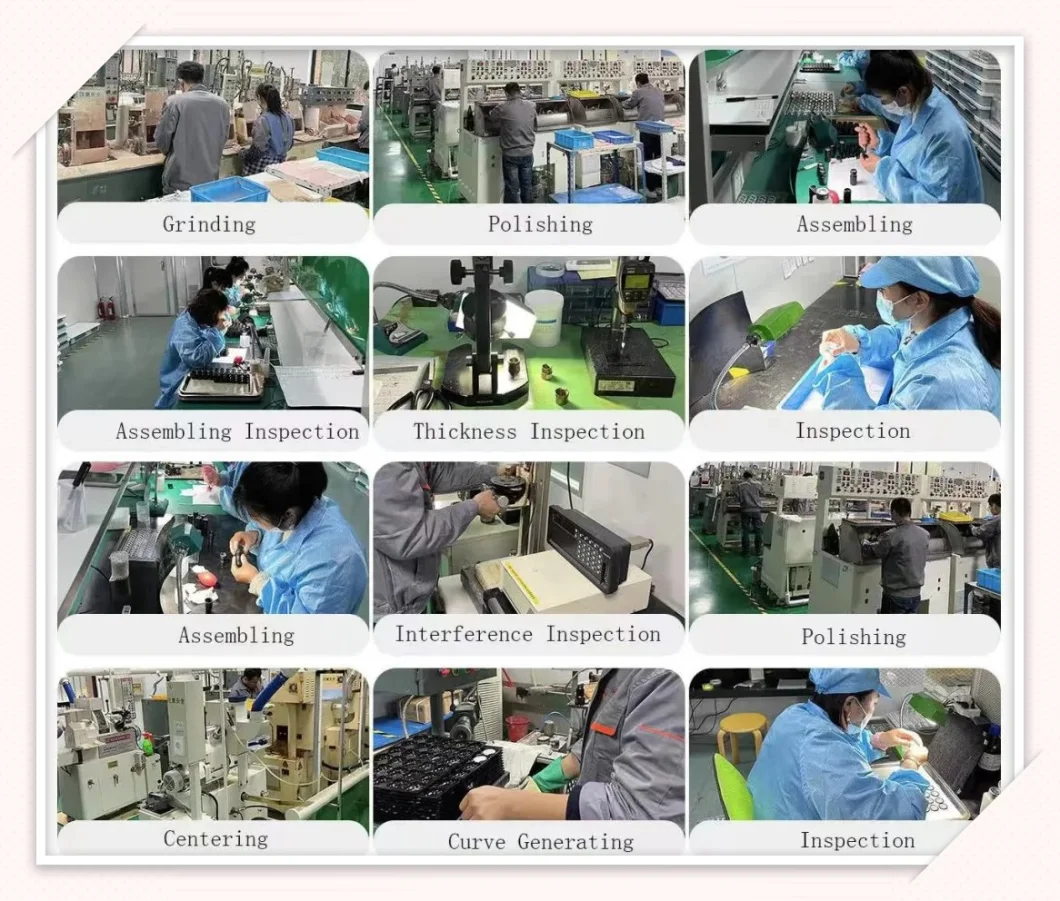

The basic processing technology of optical glass lens:
The first: milling, is to remove uneven bubbles and impurities on the surface of the lens, (about 0.05-0.08) plays a molding role.The second way: fine grinding, is to grind out the lens to eliminate the destruction layer, fixed R value.
The third way: polishing, is to polish the fine polishing lens again, this process is mainly to make the appearance better.
The fourth way: cleaning, is to polish the lens after the polishing of the surface of the polishing powder to prevent pressure.
The fifth way: edging is to grind the original lens outer diameter to the specified outer diameter.
The sixth way: coating, is to have to coat the surface of the lens with one or more layers of colored film or other films.
The seventh way: ink coating, is to have a layer of black ink on the outer edge of the map that will require lenses to prevent reflection.
The eighth way: gluing is to combine 2 lenses with two R values opposite the size and outer diameter material with glue.
Special operations: multi-piece machining (or plate machining) and spherical machining (20 heel shaft) wire cutting. Depending on the production process, the process will also vary slightly, such as the order of inking and gluing.
Q1:Can you send me free sample or Can I have a sample order ?
A: Yes, We welcome your sample order, and we're also willing to send you free sample to test and check quality. if we don't have stock , then you can place a sample order.
Q2: How many days can I get my package after placing order?
A: We arrange shipping in 24 business hours with 3-5 business days fast shipping method if stock is enough.
Q3: Can I cutomize my own Logo/Design?
A: Yes, you can, please email us or contact us via platform to confirm more details
Q4:We have a commercial project,Can you help offer a optical design solution ?
A:Yes, we have seveal enginners who are experieced in optical design for many application , please send us more detail of your project,we will give our best advice.
Q5: What shipping methods do you use?
A: As to international shipping from China, the lights will be shipped via Fedex, UPS, DHL, EMS, etc. If you would like to specify a shipping method or carrier, please let us know and we will do our best to arrange it for you.
DG Optics specializes in the development, production, and sales of optical products made of any material including BK7,quartz,sapphire etc. The product line covers thousands of categories, such as Dove Prisms, Filters, Rod Lenses, and sapphire watch Windows. Applications include defense and security, aerospace, optical ball covers for underwater cameras, automotive, medical, entertainment and design lighting, electronics and optoelectronics, laser technology, energy and utilities, universities and research, imaging lenses, microscopic inspection, and other industries. Many products and technologies have obtained national patents and software Copyrights, and have been approved by ISO9001 certificate.

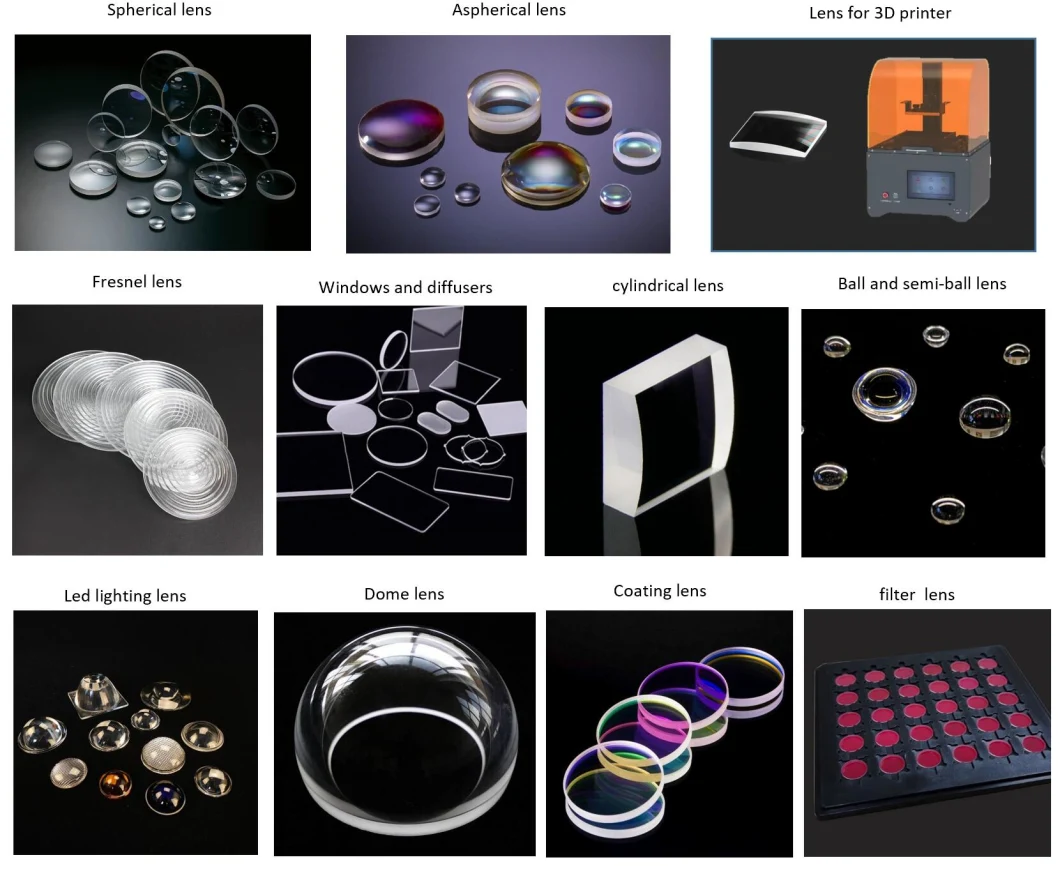

Other Lens Types:
