SYH 3D Mixing Machine
3 year ago
PRODUCT INTRODUCTION
SYH series industrial blending machine is widely used in pharmaceutical, chemical and foodstuff industries. With its unique three-dimension swing , parallel moving , androlling methods ,this mixer machine can generate a strong movement force to push forward and to mix the target materials continuously.The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside .The mixing machine also has the merits of smooth running, low noise, high loading quotiety, and short mixing time as well .
TECHNICAL DATA
|
Model
|
100
|
200
|
400
|
600
|
800
|
1000
|
1200
|
1500
|
|
Mixing Barrel Volume(L)
|
100
|
200
|
400
|
600
|
800
|
1000
|
1200
|
1500
|
|
Max Loading Volume (L)
|
75
|
160
|
320
|
480
|
640
|
800
|
950
|
1200
|
|
Max (Kg)
|
75
|
160
|
320
|
480
|
640
|
800
|
950
|
1200
|
|
Principal axis speed(r/min)
|
0-15
|
0-15
|
0-15
|
0-15
|
0-15
|
0-15
|
0-15
|
0-15
|
|
Motor Power(kw)
|
1.5
|
2.2
|
4
|
5.5
|
7.5
|
7.5
|
11
|
15
|
|
Overall size（L×W×H）(mm)
|
1200×1700×1500
|
1400×1800×1600
|
1800×2100×1950
|
1900×2100×2250
|
2200×2400×2300
|
2250×2600×2600
|
2400×2800×2800
|
2500×2950×3000
|
|
Weight(kg)
|
500
|
800
|
1200
|
1500
|
2000
|
2500
|
2800
|
3000
|

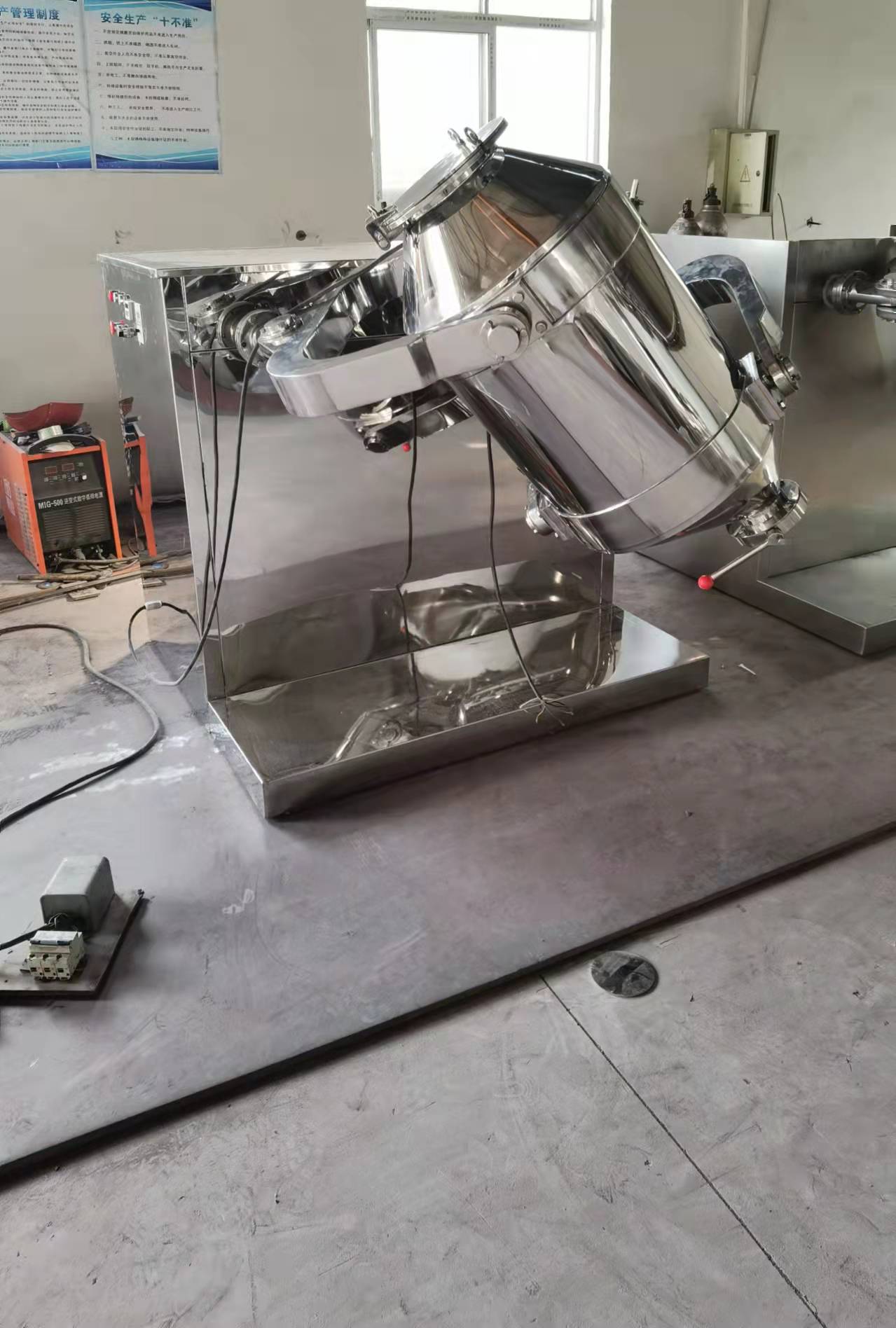

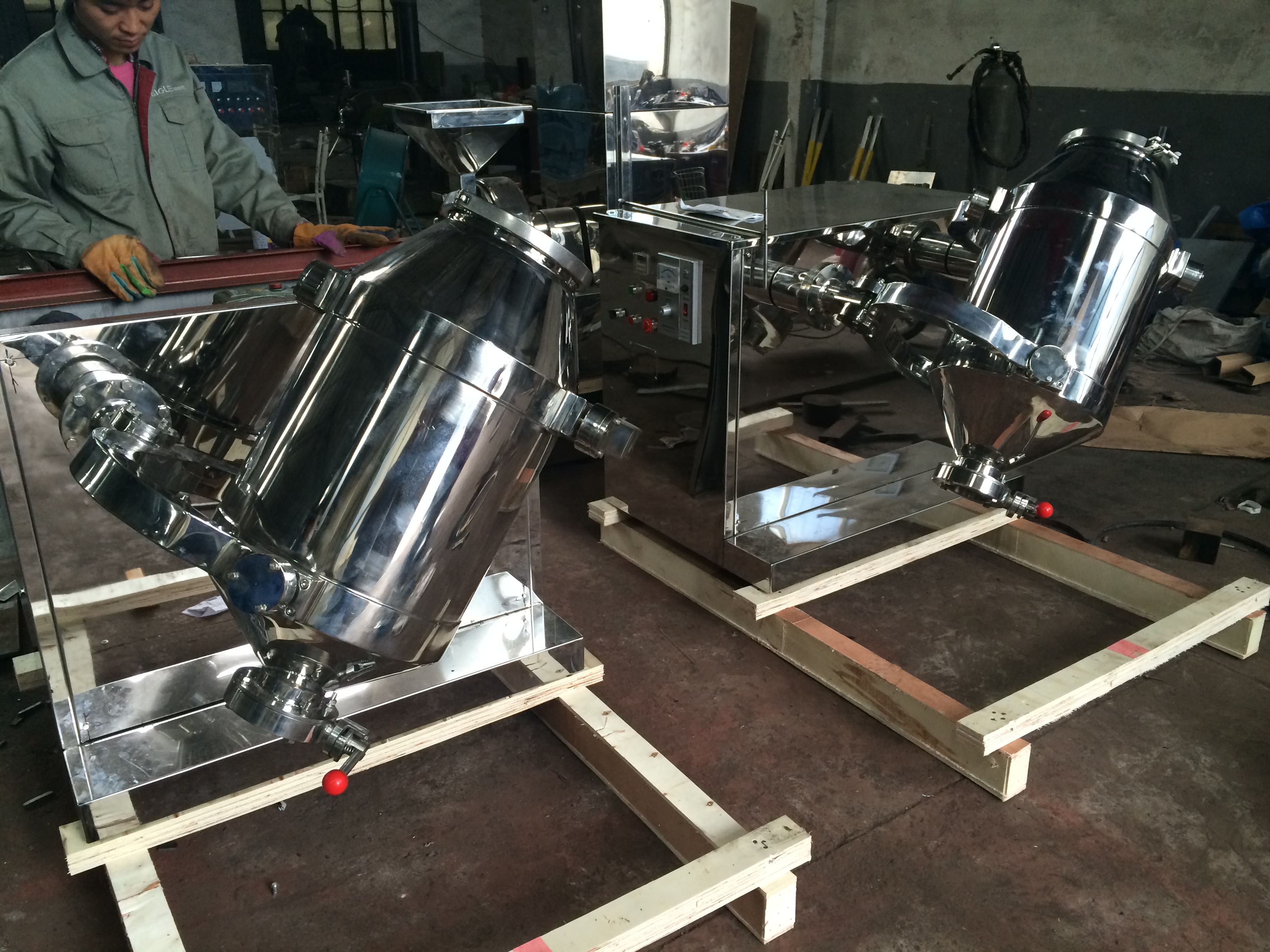

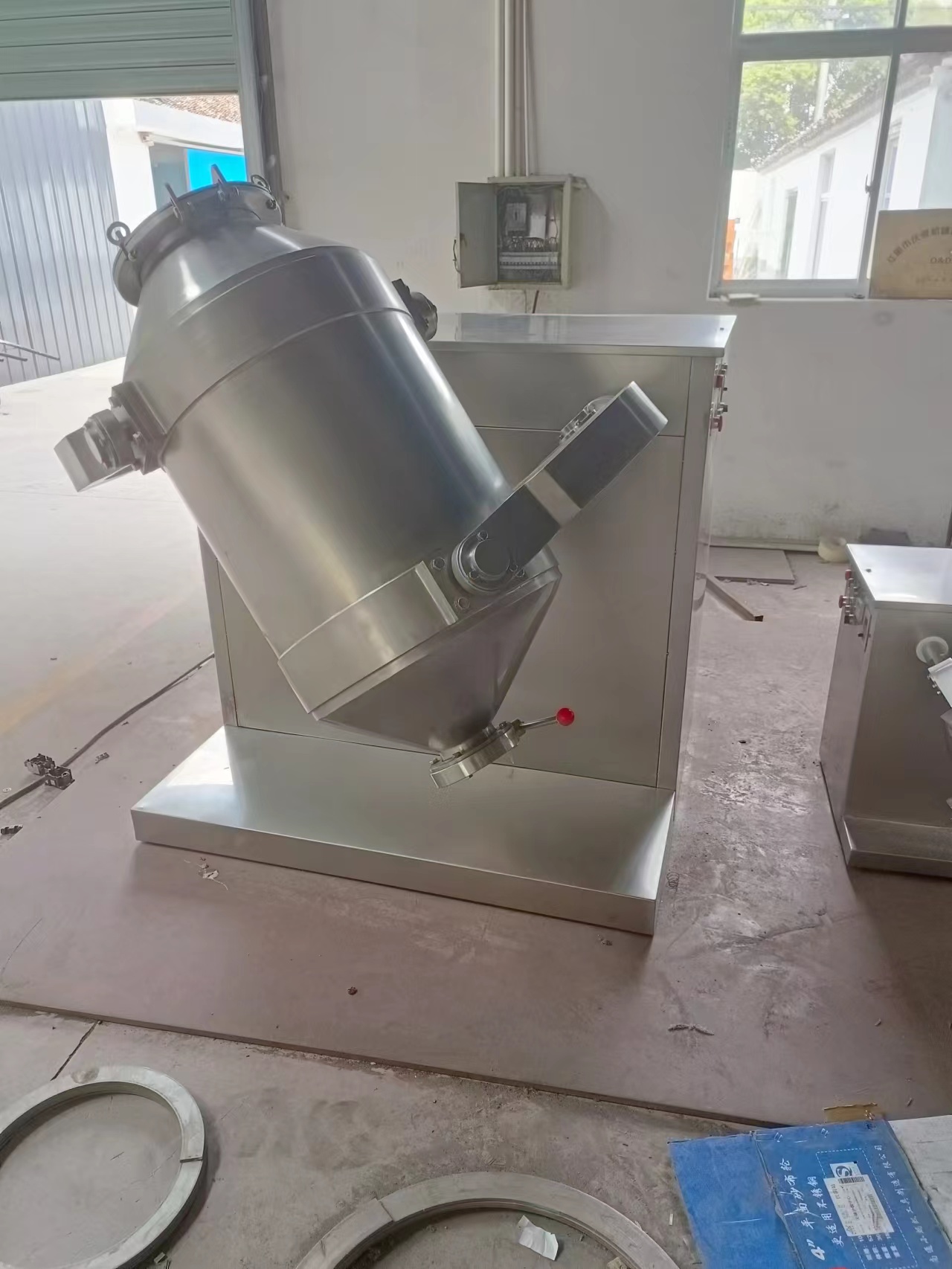

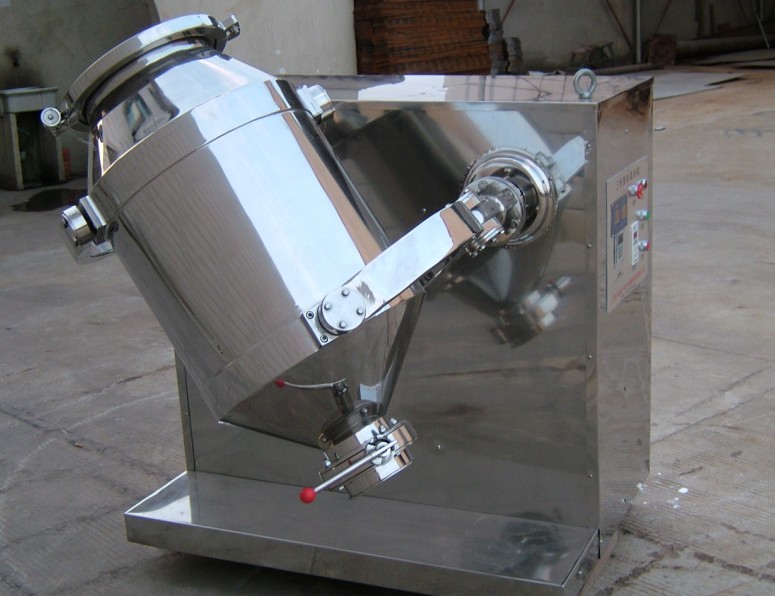

PRODUCT DISPLAY
