2.Three-dimensional swing mixing, the best mixing effect and the highest uniformity.
sugar industrial horizontal mixer
3 year ago
Product details

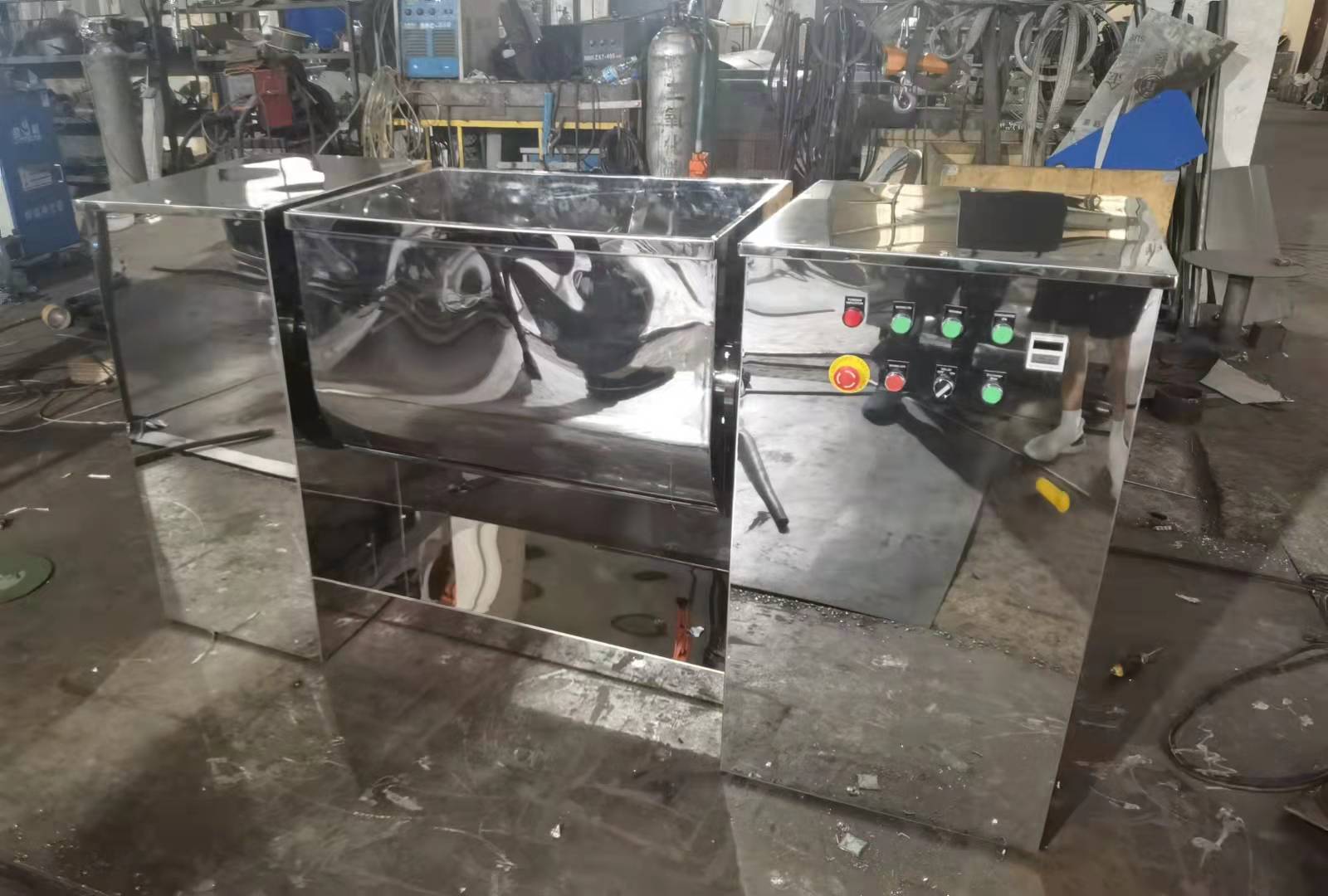

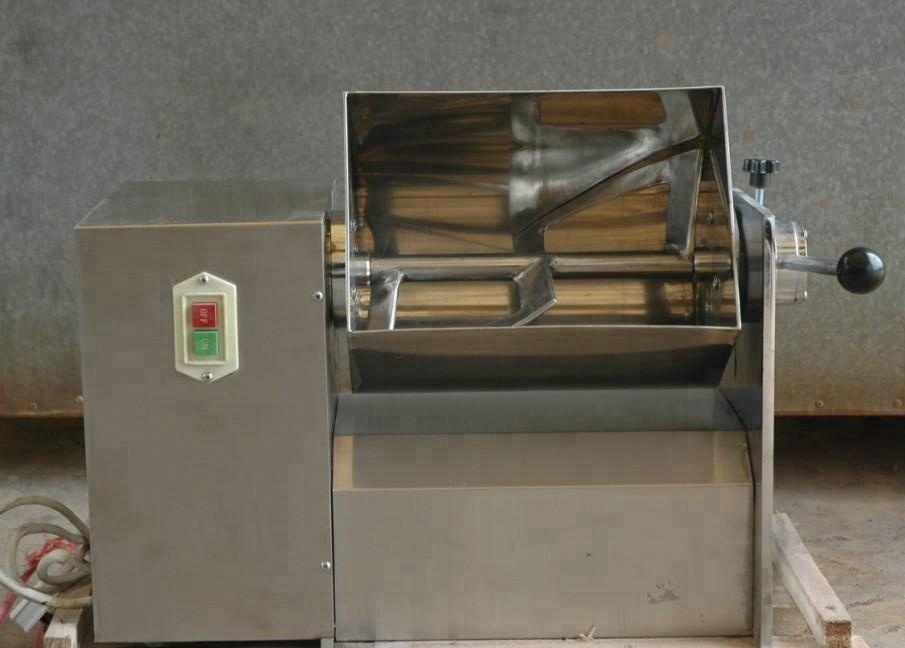

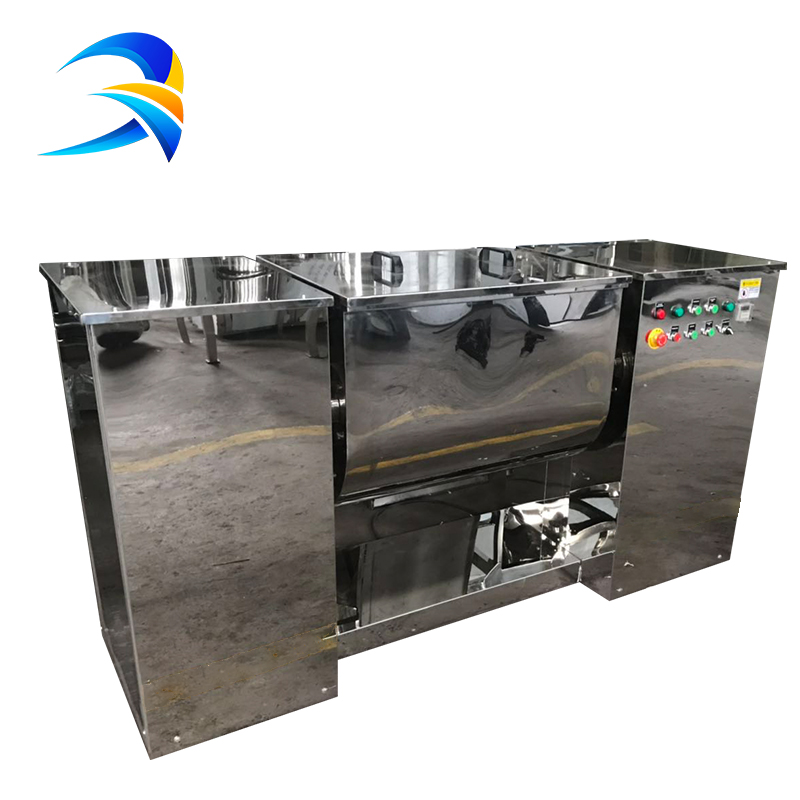

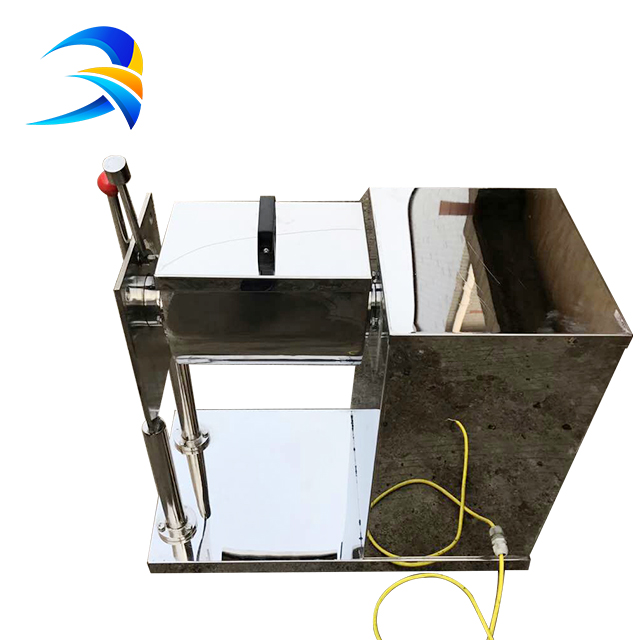

The trough mixer is composed of four parts: chassis, tank body, transmission device and electrical control. The bracket of the chassis on both sides of the tank is channel steel, and the exterior is wrapped with stainless steel plate. The left chassis is equipped with positive and reverse rotation buttons, and the right chassis is equipped with time relay for users to set the mixing time. The mechanical transmission control button is convenient for users to operate. The two ends of the mixing shaft are provided with a sealing device to solve the material leakage, with flexible operation, good sealing advantages. The machine has the feature of automatic feeding. When discharging, you can click the button to make the tank tilt to 90 degrees, then discharging can be done. The electrical control of the machine is electromechanical integrated.
Technical data
|
Model
|
50
|
100
|
150
|
200
|
300
|
400
|
500
|
600
|
|
Paddle shape
|
S style single paddle
|
|||||||
|
Working volume(L)
|
50
|
100
|
150
|
200
|
300
|
400
|
500
|
600
|
|
Mixing speed
|
24
|
24
|
24
|
24
|
24
|
24
|
24
|
24
|
|
Stir angle
|
<105
|
<105
|
<105
|
<105
|
<105
|
<105
|
<105
|
<105
|
|
Mixing power(kw)
|
1.5
|
2.2
|
3
|
4
|
5.5
|
5.5
|
7.5
|
11
|
|
Dumpling power(kw)
|
0.37
|
0.55
|
0.55
|
0.55
|
1.1
|
1.1
|
1.5
|
2.2
|
|
Weight(kg)
|
280
|
350
|
480
|
550
|
780
|
950
|
1150
|
1350
|
|
Overall size(L*W*H)mm
|
1310*400*650
|
1450*500*900
|
1500*600*950
|
1700*600*1020
|
1850*700*1200
|
2100*750*1250
|
2100*800*1300
|
2400*850*1350
|
Product display
Related products

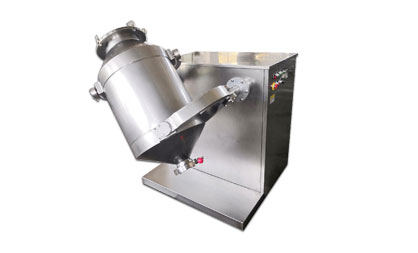

V SHAPE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.V-shaped mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
3D SWING MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
DOUBLE CONE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.Double cone mixing container. A stirring stick can be added for mixing materials containing a small amount of water.
WLDH HORIZONTAL RIBBON MIXER
1.Suitable for high-volume mixing of materials in the pharmaceutical, food, chemical industries.
2.The spiral ribbon is made of two layers. The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good circulation of material.
