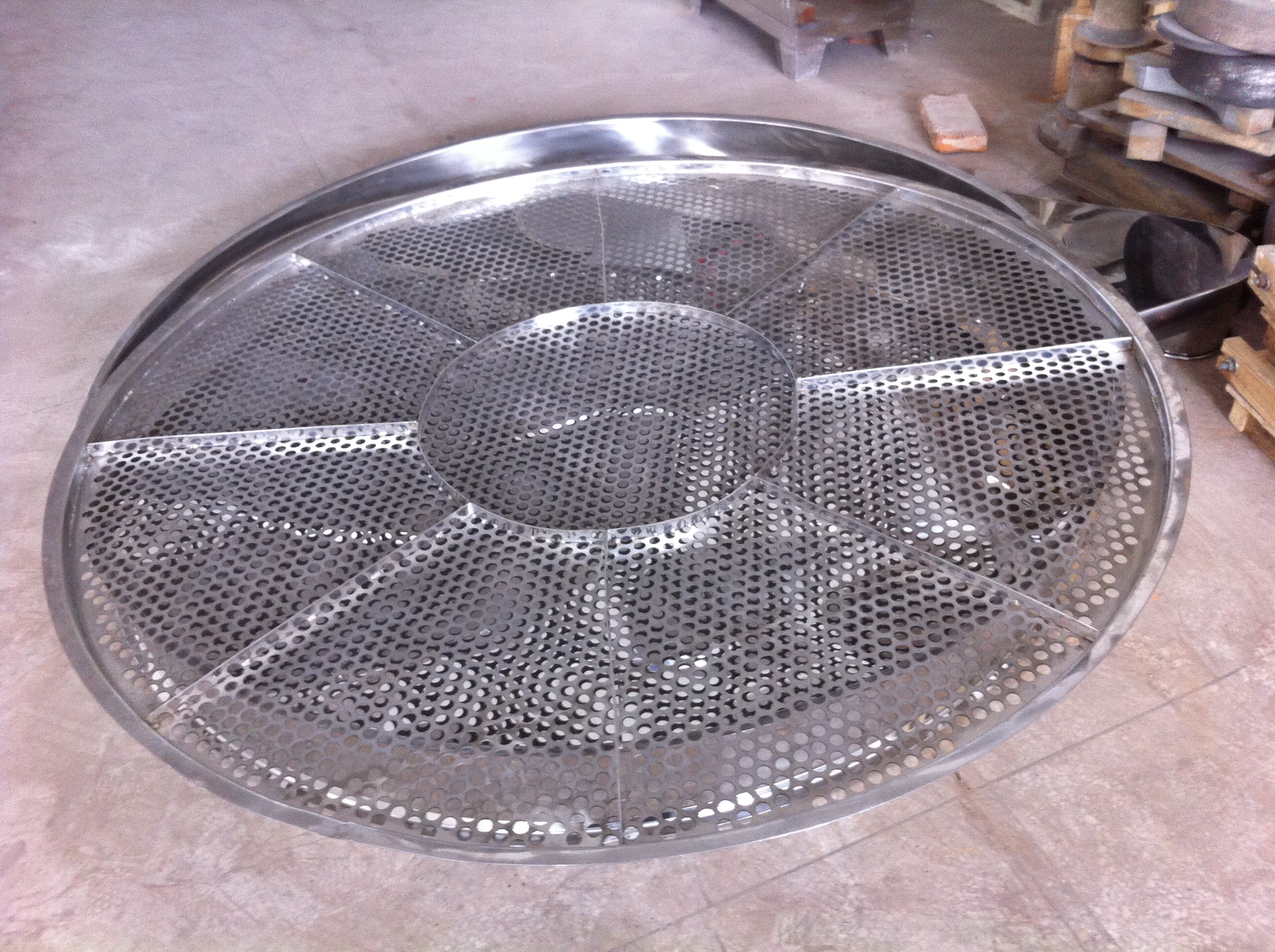

Stainless Steel Rotary Vibrating Screener
4 year ago
The sifter machine is applied for the sorting of the granule size of dry power material market in the trades medicine,chemical and foodstuff etc. And it can sift out the product continuously.
Structure Characteristics
The sifting machine is composed of the vertical vibration motor a sieve bottom a mesh frame sieve room rubber vibrating bowl and all fastening pieces,etc.This screening machine can be operated for the sorting purpose either in single sieve or multi-sieves with a compact structure easy operating and repairing,smooth running,low noise,large target material treatment good fineness and wide applicability,etc.
TECHNICAL DATA
|
Technical data
Model |
400Model
|
600Model
|
800Model
|
1000Model
|
1200Model
|
|
Capacity(kg/h)
|
100-800
|
200-1500
|
300-2500
|
500-3500
|
800*5000
|
|
Number of mesh
|
2-200
|
2-200
|
2-200
|
2-200
|
2-200
|
|
Vibration frequency(r/min)
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
Motor power(kw)
|
0.2
|
0.4
|
0.75
|
1.1
|
1.5
|
|
weight(kg)
|
200
|
250
|
320
|
420
|
500
|
|
Overall size
(L*W*H)(mm) |
600*500*1100
|
800*700*1150
|
1100*950*1150
|
1200*1100*1250
|
1380*1300*1320
|
